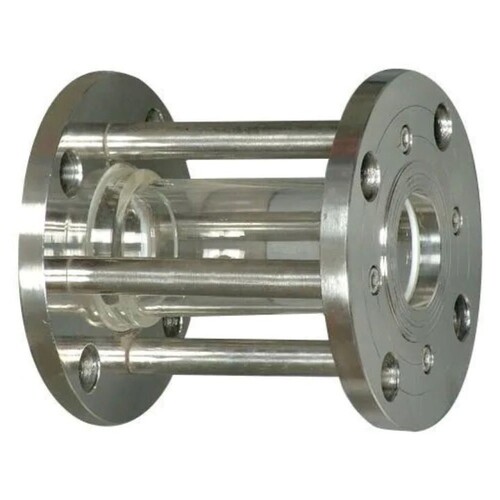

About Industrial Pipeline Sight Glass Manufacturer India

Industrial Sight Glasses: High-Clarity Process Observation and Material Standards

In large-scale chemical processing, power generation, and refining operations, maintaining continuous visual control over internal system environments is an operational necessity. Operators must be able to visually verify distinct process stages, inspect fluid clarity or color shifts, and track liquid levels inside high-pressure reactors, separators, blending tanks, and condensers. Doing so allows for the quick detection of flow disruptions, media foaming, or internal scaling without breaching the process boundary.

An industrial Sight Glass (also referred to as a sight window, viewport, or sight flow indicator) provides a highly engineered viewing window directly into these closed systems. While conceptually straightforward, these components are precision-fabricated to withstand high localized pressure thresholds, steep thermal gradients, physical impacts, and severe internal chemical corrosionmaintaining a crystal-clear visual window while acting as a secure pressure boundary.

                      Industrial Viewport Architecture


        [ Vessel / Tank Wall ]
                                     Toughened Glass      Real-Time Media View
                                     Viewing Window          (Up to 200C)

                                  Retainer               Body
                                   Flange                Frame

FlowBiz Export Private Limited is an elite global fluid-handling brand and a trusted Sight Glass Manufacturer in Narmada, Gujarat, India. We focus on precision engineering heavy-duty viewports and inline indicators designed to deliver high optical transparency, exceptional structural integrity, and long-term reliability under challenging industrial conditions.

Technical Specifications & Customization Parameters

FlowBiz Sight Glasses are engineered in strict compliance with international pressure containment and connection codes, ensuring smooth integration into standard industrial process vessels and pipeline skids.

Core Product Parameters

Parameter Profile	Engineering Specifications & Component Options
Brand	FlowBiz Exports
Component Typology	Industrial Sight Glass / Sight Window / Pressure Viewport
Internal Structural Discs	High-Grade Stainless Steel (SS 304) Supporting Elements
Thermal Operating Envelope	Continuous mechanical stability at temperatures up to 200C
Compatible Process Media	Industrial Oils, Corrosive Chemicals, Water, Gases, and Liquefied Vapors
Customization Framework	Fully customizable port dimensions, face-profile geometries, and drilling patterns
Primary Production Hub	Narmada, Gujarat, India (Supporting domestic and export supply lines)

Critical Engineering Features & Operational Benefits

1. Robust SS 304 Mechanical Support

Industrial processing equipment can subject pipeline components to severe piping torque, structural vibration, and external atmospheric weathering. FlowBiz sight glasses are constructed with high-grade SS 304 stainless steel discs and retaining frames. This high-alloy metallurgy supplies excellent structural strength, resists external rust, and prevents localized body thinning, ensuring long-term operational durability.

2. High Thermal Shock and Temperature Resistance

Rapid clean-in-place (CIP) cycles or sudden process batch transitions can subject standard window materials to catastrophic thermal fracturing. Our industrial viewports are equipped with specialized, heat-treated glass elements engineered to operate efficiently at continuous temperatures reaching up to 200C. This high thermal resilience allows operators to safely observe volatile liquids and oils without risking sudden structural failure.

3. Flexible Geometry and Seamless System Integration

To accommodate unique space limitations and custom vessel configurations, FlowBiz provides extensive design flexibility. Port sizes, body thicknesses, and connection footprints can be custom-tailored during fabrication. This precise fitment enables direct integration into existing pipeline headers, reactor side-walls, or specialized storage tanks without requiring extensive field alterations.

Strategic System & Industrial Applications

Our high-integrity observation windows are installed at critical visual monitoring junctions across diverse sectors:

• Chemical Processing Facilities: Providing safe visual tracking of raw chemical feeds, aggressive reagents, and volatile blending cycles inside reactors.

• Power Generation Stations & Boiler Loops: Monitoring fluid movement, feed-water clarity, and oil lubrication paths up to 200C.

• Petroleum Refineries & Petrochemical Units: Positioned on continuous pipelines, distillation columns, and separators to inspect oil colors and phase interfaces.

• Wastewater & Industrial Fluid Handling: Installed on storage tanks and utility circuits where real-time tracking of liquid levels and sediment density is essential.

Frequently Asked Questions (FAQ)

Q: Why is an industrial sight glass considered a highly engineered component rather than a low-tech window?

A: Standard commercial glass lacks the internal molecular elasticity to handle pressure or temperature differentials, causing it to shatter instantly under industrial loads. An industrial Sight Glass is a precision assembly that relies on calculated compressive forces. High-strength SS 304 retaining rings compress specialized toughened glass against high-density gaskets. This configuration isolates the glass from direct metal-to-metal stress and piping torque, allowing it to withstand high system pressures and temperatures up to 200C safely.

Q: When is the most efficient time to upgrade or install new viewports in a facility?

A: The ideal time to install or upgrade to FlowBiz sight glasses is during scheduled facility turnarounds, preventive equipment maintenance, or active process line expansions. Upgrading during these windows prevents unscheduled downtime, allowing operators to easily replace outdated, clouded, or unrated sight glasses with temperature-rated, chemical-resistant units that match modern safety and processing standards.

Q: What is the recommended maintenance routine for manual sight glasses in heavy utility services?

A: Manual sight glasses operate with minimal mechanical wear, requiring only periodic visual inspections to ensure optimal performance:

1. Clarity Verification: Operators should visually inspect the window for internal residue buildup, chemical etching, or scaling that could limit visibility.

2. Hardware Integrity Checks: Maintenance crews should periodically check the tightness of the retainer bolts to ensure uniform gasket compression and prevent leak paths.

3. Residue Cleaning: If product accumulation occurs, the inner glass surface should be gently cleaned with a non-abrasive compound during a system shutdown, restoring high-clarity monitoring.

Q: What is the standard ordering workflow for requesting a customized sight flow indicator from Narmada?

A: Sourcing and project engineering teams can establish a customized production profile through a straightforward process:

• Requirement Submission: Contact our Narmada engineering division with your precise application criteriaincluding nominal pipe or port sizes, expected operating pressures, chemical media properties, and maximum thermal ranges.

• Technical Consultation: Our design team reviews your parameters to select the correct glass thickness, gasket compounds, and frame geometry.

• Expedited Manufacturing: Following engineering approval, your custom viewports are advanced to fabrication and hydrostatically verified, ensuring a precise fit and timely field delivery.
