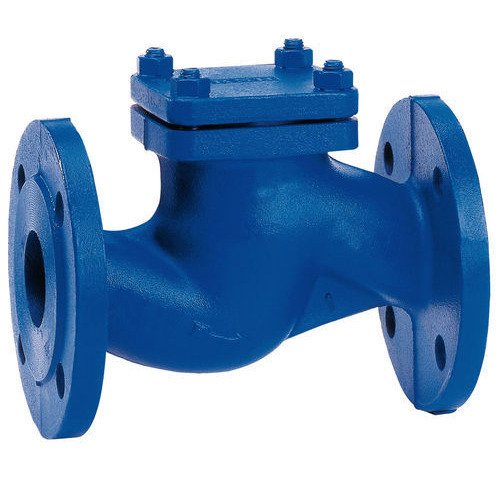

Industrial Non-Return Valves (NRV): Working Principles, Technical Parameters, and Application Scope

In modern fluid dynamics and piping infrastructure, preventing fluid reversal is paramount to safeguarding mechanical assets, maintaining line calibration, and ensuring process safety. A Non-Return Valve (NRV)alternatively designated as a check valve or unidirectional valveis an automated mechanical device engineered to permit liquids or gases to flow unhindered in one direction while instantaneously blocking any reverse travel or backflow.

FlowBiz Exports Pvt. Ltd. is a premier industrial brand and a recognized Non-Return Valve Manufacturer in Kalol, Gujarat, India. We specialize in engineering heavy-duty, high-integrity NRVs with premium metallurgical trims that deliver drop-tight sealing performance across critical process loops, water utilities, and export networks worldwide.

Fluid Dynamics: How a Non-Return Valve Works

The operation of a non-return valve is completely autonomous and relies entirely on the internal hydraulic or pneumatic pressure of the process media rather than manual levers or external automation lines.

1. Cracking Pressure and Valve Opening

Before fluid can pass through the valve, the upstream pressure must overcome the internal resistance of the valve closure mechanism (such as a spring, weight, or hinged disc). The specific minimum upstream pressure required to lift the closure member off its seat is technically defined as the cracking pressure. This value is highly variable and depends directly on:

• The structural profile and nominal diameter of the valve body.

• The mass of the closing disc or the tension of the internal assistance spring.

• System parametershigh-pressure equipment and main utility distribution headers inherently demand a more significant cracking pressure to ensure positive seating.

2. Automated Unidirectional Sealing

When forward fluid velocity drops or reverses, the pressure differential across the valve shifts. The downstream back-pressure, coupled with gravitational force (or spring tension), drives the precision-machined SS 304 disc back onto the seating surface. This mechanical sealing engagement instantly closes the orifice, halting backflow before pressure surges or water hammer can travel back up the pipeline.

Technical Specifications & Parameter Matrix

FlowBiz non-return valves are manufactured in strict compliance with global industrial metrics, ensuring high thermal resistance and mechanical stability.

Comprehensive Industrial and Domestic Applications

Because backflow presents a risk across all fluid handling domains, FlowBiz non-return valves are engineered for diverse application surfaces:

1. Severe Industrial & Process Engineering

• Chemical & Petrochemical Industries: Isolating aggressive chemical feed lines to prevent dangerous cross-contamination or backward acid migration.

• Power Generation & Nuclear Facilities: Managing boiler feedwater systems, auxiliary steam loops, and high-temperature cooling lines under high thermal loads.

• Refineries & Dump Lines: Controlling low-pressure blowdown headers and dump lines to keep hazardous waste flowing outward.

• Wastewater Management Plants: Blocking effluent backflow in heavy-duty sewage processing lines and sludge lift stations.

2. High-Capacity Pumping Systems

• Water Pumping Infrastructure: Preventing high water columns from draining back down into deep-well or centrifugal pumps when they cycle off, completely eliminating pump back-spinning.

• Chemical Metering Pumps: Ensuring exact fluid dosing volumes by maintaining absolute unidirectionality past the pump head.

• Boiler Feed Pumps: Shielding upstream supply pumps from high-temperature back-pressure surges.

3. Domestic & Commercial Utilities

• Irrigation Sprinkler Networks: Retaining line pressure across sprawling agricultural zones to prevent system draining and soil suction at the nozzle head.

• Solar Thermal Installations: Stopping reverse convective flow during nighttime cycles to conserve captured thermal energy in water loops.

• Hydraulic Pump Jacks: Providing tight fluid hold conditions inside hydraulic cylinders to maintain stable mechanical lift under load.

Elite Manufacturing Footprint & Global Supply Network

FlowBiz Exports Pvt. Ltd. operates a highly synchronized logistics and supply network from our primary manufacturing facility in Kalol, India. We serve as a certified manufacturer, supplier, and exporter across major industrial and municipal centers throughout the nation, including:

Pan-India Logistics Connectivity: Rajkot, Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwer, Bharuch, Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur, Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and all major industrial corridors.

Frequently Asked Questions (FAQ)

Q: Why is the selection of an SS 304 stainless steel disc vital for process utility lines?

A: Stainless Steel 304 delivers outstanding structural strength, excellent rust resistance, and high-temperature tolerance up to 200C. In aggressive media lines or water transport systems, an SS 304 disc resists pitting, scaling, and cavitation damage. This ensures the moving disc retains its sharp, smooth seating profile over millions of operational cycles, minimizing valve passing and maintenance costs.

Q: What is the exact engineering workflow for ordering a customized port size from Kalol?

A: Our engineering facility in Kalol provides precision custom tailoring. During the technical inquiry stage, clients provide their precise piping diameters, expected flow rates (Cv), velocity limits, and chemical properties. Our design division models the inner valve geometry to match your existing dimensions exactly, creating a seamless drop-in fit that reduces localized turbulence and friction loss before the unit undergoes full hydrostatic integrity testing.

Q: How do manual non-return valve configurations function, and what maintenance do they require?

A: Manual-type non-return valves feature an external lever or counterweight handle linked directly to the internal hinge pin. This allows operators to visually verify the disc's position from outside the pipeline, assist in heavy-valve closing, or securely lock the disc down during system maintenance. Routine service is exceptionally straightforward: it requires periodic line flushing and visual checks through the valve access cover to ensure the seating surfaces remain clear of pipeline scale or debris.

Q: Where should an NRV be strategically installed relative to an industrial centrifugal pump?

A: An NRV must always be installed on the discharge (outlet) side of a pump, positioned immediately after the pump discharge nozzle and before the main system isolation valve. This layout ensures that if the pump suddenly loses power or is turned off, the valve instantly intercepts the slamming force of the returning water column, isolating the pump casing and impellers from catastrophic mechanical shock.
