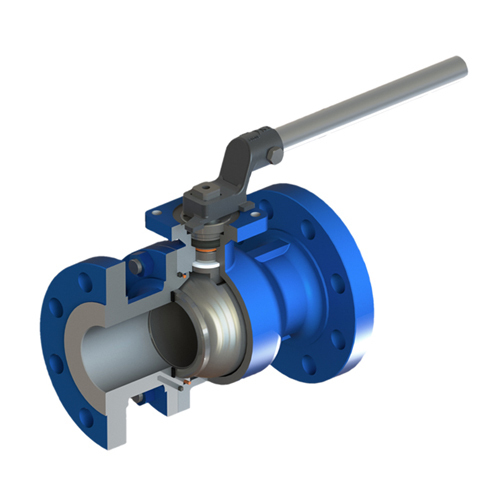

FlowBiz Severe-Service Metal-Seated Flanged Ball Valves Advanced Slurry & Thermal Isolation

Welcome to the engineering authority for severe-service fluid containment, high-temperature thermal routing, and abrasive slurry isolation. Operating advanced multi-axis CNC horizontal boring mills, precision spherical-lapping cells, and specialized metal-to-metal seat matching corridors, FlowBiz specializes in manufacturing premium-grade Metal-Seated Flanged Ball Valves.

Our industrial setup is located in Gandhidham, Gujarat, India, where we engineer high-performance valves engineered to handle the toughest process environments. When pipelines carry abrasive solids, high-density ore slurries, or severe chemical media that easily destroy traditional soft-seated valves, metal-to-metal seating provides the necessary durability. Built with a full-bore internal cavity to completely eliminate material clogging, our metal-seated valves deliver long-term structural integrity and zero-leakage performance under intense thermal and pressure variations.

Technical Specifications & Compliance Parameters

Every FlowBiz severe-service production block undergoes 100% rigorous high-pressure hydrostatic testing, micro-dimensional seat profiling, and API-compliant fire-safe certification audits before factory release.

Advanced Kinematics & High-Durability Stem Architecture

The reliability of the FlowBiz metal-seated valve relies on deep structural reinforcement across the stem and sealing surfaces, reducing localized wear and maintaining predictable operating torque:

 [ EXTENDED TOP-WORKS ACTUATION STEM ] \/ +--------------------------+ | Double-Packed Stuffing | | Box / Low-Emission Ring | +--+--------------------------+--+ | [ DUAL STEM BEARING DRIVE ] | | /======Y======\ | | | Fully Guided | | | | Bimetal Bush | | | | +-------+ | | ===============> |====/ | Metal | | | [ SEAT SPRING LOADING ] Abrasive Slurry | | Ball | | | Unique wave springs maintain Inflow Stream +---------------------------+ constant metal-to-metal force (5 RMS) at low pipeline pressures. \/ [ UNRESTRICTED FULL BORE OUTFLOW ]

I. High-Integrity Guided Stem Engineering

• Dual Stem Bearing Design: By supporting the stem axis with dual heavy-duty bearings, our design completely absorbs side thrust forces caused by high fluid velocities. This prevents stem tilting, ensures uniform operating torque, and protects the seals from premature wear.

• Fully Guided Bimetallic Gland Bearings: The stem is stabilized by a fully guided bimetallic gland bearing sleeve that isolates the drive shaft from physical binding or galling during rapid cycling.

• Double-Packed Stuffing Box: Incorporates two independent layers of high-purity graphite packing separated by a tracking ring. This design minimizes fugitive emissions and provides a reliable external seal.

• Anti-Blowout & Anti-Static Design: The bottom-entry stem features an oversized mechanical shoulder that cannot blow out under sudden pressure spikes. Integrated anti-static ground springs maintain constant electrical continuity between the ball, stem, and body to eliminate static discharge hazards.

II. Precision Metal-to-Metal Sealing Dynamics

• Lapped and Matched Seating Sets: The solid stainless steel ball core and heavy seat rings are hardfaced with Stellite cobalt alloy, then ground and lapped together as a matched pair down to a surface finish of 5 RMS. This precision fit allows the metal surfaces to seal tightly without relying on elastomer inserts.

• Unique Seat Spring Loading: Heavy-duty wave springs are placed behind the metal seat rings to keep them pressed firmly against the ball. This spring force ensures a tight, bubble-tight seal at low line pressures, while allowing the seats to shift slightly to accommodate thermal expansion at high temperatures.

• Lapped Stellite Thrust Washers: A precision-lapped Stellite thrust washer is fitted against the valve body to reduce turning friction and prevent fluid from bypassing the stem assembly.

Strategic Industrial Application Sectors

• Mining, Dredging, & Tailings Management: Pumping abrasive iron ore slurries, copper concentrates, mineral tailing grids, and sand suspension lines.

• Petrochemical Refineries & Hydrocarbons: Regulating high-temperature catalyst cracked loops, heavy bitumen lines, and vacuum distillation bottoms.

• Chemical Processing & Fertilizers: Handling crystallizing chemical compounds, highly reactive organic acids, and hot polymer matrices.

• Power Stations & Ash Handling Infrastructure: Isolating bottom ash slurries, high-pressure boiler feed water, and soot-blower utility networks.

Frequently Asked Questions (FAQ)

Q: How do metal seated flanged ball valves handle extreme temperatures?

A: Thanks to their robust stainless steel construction, advanced spiral-wound Graphoil gaskets, and hardfaced metal-to-metal seating, these valves operate reliably across a broad temperature window from -40F up to 392F. Because they contain no soft polymer seats, they resist thermal degradation and maintain high structural strength through extreme thermal cycles.

Q: What applications are ideal for your flanged ball valves?

A: These full-bore flanged valves are ideal for pipelines routing air, liquids, gases, and abrasive slurries. They are highly specified for demanding applications like mining slurry transfer, chemical crystallization loops, refinery blending manifolds, and high-pressure water treatment lines where soft-seated valves would quickly erode or fail.

Q: When should I choose a metal seated valve over other types?

A: Specify a metal-seated valve when your application involves severe operating conditionssuch as high fluid velocities, abrasive particulates, sticky slurries, or extreme temperaturesthat exceed the limits of soft polymer seats. Their rugged construction prevents seat erosion, tearing, and mechanical binding under heavy solids loading.

Q: Where can your valves be installed within a system?

A: They can bolt securely into any high-duty isolation or flow control point within your piping grid. They are widely installed near utility pump discharges, storage tank isolation manifolds, chemical reactor feed lines, and main process header loops.

Q: What benefits does using a stainless steel, metal seated flanged ball valve offer?

A: The primary advantages are long-term structural durability, high resistance to erosion and chemical corrosion, and reliable seal performance in severe environments. Their heavy-duty design minimizes maintenance needs, eliminates frequent seat replacements, and reduces total operational costs over the lifetime of your piping system.

Q: What is the process for sourcing these valves from you?

A: Sourcing from our Gandhidham facility is simple. You can contact our technical sales team directly via email or through our digital channels. Our engineers will review your system parametersincluding line size, operating pressure, temperature range, and media propertiesto guide you to the ideal metallurgy and hardfacing configurations, followed by prompt delivery.

Q: How should these valves be maintained for optimal performance?

A: Thanks to their robust stainless steel build and self-cleaning metal seats, these valves require minimal maintenance. We recommend performing regular visual checks on the packing gland, confirming body bolt torque settings, and cycling the valve periodically to clear out any trapped scale or sediment from the internal chamber.

Are you updating an industrial slurry network that requires a two-piece full-bore metal-seated ball valve, or configuring a chemical utility line in Gandhidham that demands robust Stellite hardfacing? Contact our technical sales division today to secure a factory-direct quote and detailed technical review, or ask a single relevant question regarding your specific solids concentration or line pressure parameters below to guide the conversation forward.
