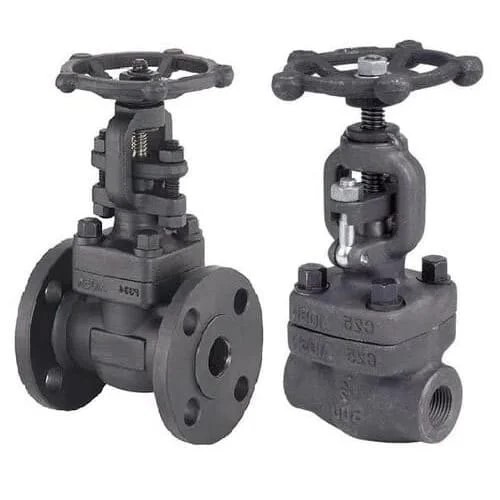

FlowBiz Class 800 Forged Carbon Steel Gate Valve: High-Pressure Heavy-Duty Isolation

When your piping infrastructure demands uncompromising strength and absolute fluid isolation under extreme conditions, the FlowBiz Brand Class 800 Forged Carbon Steel Gate Valve delivers the ultimate solution. Engineered by FlowBiz Exports Pvt. Ltd., this heavy-duty valve is specifically forged to withstand the punishing pressures and thermal cycling typical of severe-service upstream and downstream applications.

Designed with an optimized full-port or reduced-port internal configuration, it permits fluid to pass with minimal turbulence and an exceptionally shallow pressure drop, ensuring maximum system efficiency.

Why Engineers Prefer FlowBiz Forged Gate Valves over Ball Valves

While ball valves are common in utility lines, piping engineers widely specify the FlowBiz Forged Carbon Steel Gate Valve for critical isolating zones and steam trapping stations due to several distinct mechanical advantages:

• Linear Multi-Turn Closure: The gradual closing mechanism of a gate valve eliminates the risk of devastating water hammer or pressure surges inherently caused by quick-acting quarter-turn ball valves.

• Bi-Directional Sealing: Engineered for absolute flow isolation in both directions, making system layouts more versatile.

• Superior Sealing Position: Provides a definitive, tight shutdown whether installed in horizontal or vertical piping alignments.

• Limited Control & Throttling Capability: While primarily engineered for on-off isolation, its rugged internal wedge design can accommodate intermittent, minor throttling of steam, gases, or heavy liquids without immediate seat degradation.

Key Features & Structural Engineering

Every FlowBiz Class 800 Gate Valve is built with premium-grade metallurgy and structural features designed to extend operational lifetimes:

1. Robust Forged Steel A105N Body & Bonnet

Unlike cast valves which can harbor internal porosity or structural defects, our valves are constructed from normalized forged carbon steel (ASTM A105N). This provides dense grain structures, superior mechanical strength, and elevated resistance to high-pressure fatigue.

2. OS&Y (Outside Screw & Yoke) Design with Elevated Stem

Featuring an Outside Screw and Yoke (OS&Y) configuration, the stem threads remain completely external to the process media.

• The Benefit: This protects the critical drive threads from corrosive fluids or abrasive particulates, while the elevated stem provides an immediate visual indication of whether the valve is open or closed.

3. High-Integrity Bolted Bonnet

The body-to-bonnet joint is secured with high-tensile fasteners to manage fluctuating thermal expansions, preventing accidental fugitive emissions or gasket blowouts.

4. Ergonomic Handwheel Operator

Equipped with a heavy-duty, impact-resistant handwheel that ensures smooth, low-torque manual operation even under full differential line pressure.

Technical Specifications & Compliance Matrix

FlowBiz Forged Steel Gate Valves are manufactured to comply precisely with strict global oil, gas, and petrochemical standards:

Target Sectors & Severe-Service Applications

The FlowBiz Class 800 Gate Valve is highly sought after in demanding industries where viscous fluids, media separation, and high-temperature utility lines are present:

• Petrochemical & Oil Refineries: For handling crude oils, hydrocarbons, and viscous process mediums.

• Thermal Power Plants: Ideal for high-pressure boiler feed lines, steam isolation, and condensate trapping stations.

• Chemical Processing: Excellent for heavy chemical pipelines that undergo extreme temperature shifts.

• Gas Infrastructure: High-pressure natural gas distribution networks and gas processing plants.
