Industrial Basket-Type Strainers: Design Architecture, Flow Dynamics, and Quality Standards

In high-volume fluid transmission systems, industrial cooling loops, and chemical utility networks, managing particulate loading is a critical operational parameter. Heavy process fluids often carry suspended solids, pipe scale, silt, and foreign debris that can cause severe downstream issues. If left unmanaged, these contaminants can score the tight sealing surfaces of control valves, erode high-speed pump impellers, and block the narrow channels of heat exchangers, leading to unexpected system failure and expensive maintenance shutdowns.

An industrial Basket-Type Strainer (or simplex basket strainer) provides a heavy-duty, high-capacity inline filtration solution designed to trap and retain these solid contaminants. Featuring a vertical chamber that is significantly larger than standard Y-strainers, the basket design provides a large internal filtration surface area. This expansive area allows the system to hold a large volume of debris while maintaining a low initial pressure drop (P), safeguarding continuous process flow.

                    Simplex Basket Strainer Internals



                          Quick-Opening Bonnet

                                     (Top-Removal Access Chamber)
         [ Inlet Port ]    [ Outlet Port ]
         (Fluid + Debris)     Heavy SS 304       (Cleaned Fluid Out)
                              Mesh Basket

                                     (Traps Solids at Base of Mesh)

                          Sediment Drain Plug

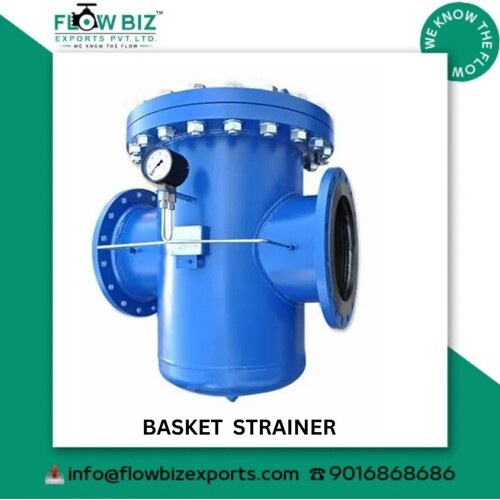

FlowBiz Exports is an elite global fluid-handling brand and a leading Basket Type Strainer Manufacturer in Vapi, Gujarat, India. We specialize in precision engineering rugged, high-capacity simplex basket strainers designed to deliver exceptional solids collection, low total cost of ownership, and reliable equipment protection across global processing grids.

Technical Specifications & Compliance Parameters

FlowBiz basket-type strainers are manufactured, machined, and hydrostatically tested to comply with international pressure containment guidelines and standard pipeline dimensions.

Core Product Configuration Matrix

Critical Engineering Features & Operational Benefits

1. High Filtration Surface Area & Optimized Flow Dynamics

The vertical chamber design allows the internal SS 304 mesh basket to feature a surface area ratio up to six times larger than the cross-sectional area of the inlet pipe. This large surface area optimizes internal flow tracks, provides an exceptionally high dirt-holding capacity, and delays filter blinding. This design minimizes initial pressure drop metrics, reducing structural strain on upstream pumps.

2. Premium SS 304 Mechanical & Corrosion Durability

Industrial cooling water networks, chemical reagents, and raw process water can cause rapid oxidation and pitting in standard metals. FlowBiz constructs its internal structural elements and baskets from high-grade SS 304 stainless steel. This alloy features a dense chromium-nickel matrix that resists chemical corrosion and physical erosion, ensuring long-term structural durability and reducing overall maintenance frequency.

3. Simple Top-Removal Access & Quick Maintenance

A key operational advantage of the simplex basket design is its easy maintenance workflow. Unlike Y-strainers that drain from the bottom, a basket strainer is engineered with a top-opening bonnet. This layout allows maintenance teams to access, lift out, clean, and replace the internal basket vertically without disconnecting the strainer body from the pipeline, significantly reducing facility downtime.

                      Quick-Clean Maintenance Cycle



                Isolate Line Section & Vent Internal Pressure




 [ Open Top-Chamber Bonnet ]                              [ Clean & Flush Mesh Basket ]
 (Vertically Lift Out Basket)                             (Reinsert & Restore Flow)

Strategic System & Industrial Applications

Our high-performance basket strainers provide critical manual monitoring and solids filtration across severe-service sectors:

• Chemical Processing & Industrial Facilities: Catching solid particulates inside raw chemical feeds, aggressive liquids, and blending loops.

• Petroleum Refineries & Petrochemical Units: Positioned along hydrocarbon manifolds, cooling towers, and heavy oil transfer headers.

• Power Generation & Boiler Utilities: Protecting high-volume boiler feed pumps, condenser tubes, and auxiliary utility circuits.

• Nuclear Power Plant Skids: Meeting strict material safety guidelines to provide clean, dependable fluid filtration in auxiliary circuits.

• Water Treatment & Desalination Facilities: Intercepting sand, silt, organic matter, and debris ahead of delicate reverse-osmosis filtration banks and high-pressure pumps.

Frequently Asked Questions (FAQ)

Q: What core technical variables must be reviewed to select the correct basket strainer for a facility?

A: Selecting the optimal strainer involves evaluating five key process parameters:

1. Media Chemical Compatibility: Review fluid properties to ensure the body casting and internal SS 304 elements resist chemical attack.

2. Target Filtration Micron Level: Define the particulate size limits of your downstream assets to specify the correct mesh opening size.

3. Pipeline Port Dimensions: Match the strainer's connection layout to your nominal pipe size to prevent line turbulence.

4. Thermal and Pressure Limits: Verify that the system's operational pressure and temperature spikes remain within the strainer's safety limits.

5. Flow Rate Volume: Audit fluid velocity against pressure drop considerations (P) to maintain efficient system performance.

Q: When should an engineer specify a customized port size over a standard commercial model?

A: Customized port sizes are highly recommended when upgrading older processing skids with non-standard pipe connections or unique space constraints. Tailoring the port sizing and face-to-face dimensions to match your unique process system requirements ensures a secure, clean fit. This customization helps maintain efficient system flow dynamics, prevents line restriction, and protects your downstream equipment without requiring expensive piping modifications.

Q: Why is a basket strainer preferred over a Y-strainer for high-volume liquid loops?

A: The choice is driven by fluid volume and debris capacity:

• Basket Strainer: Features a large vertical collection chamber, offering a much higher dirt-holding capacity and lower pressure drops. It is the preferred choice for liquid lines requiring high flow volumes and periodic manual cleaning.

• Y-Strainer: Features a compact, angled design with a smaller debris holding capacity. It is optimized for high-pressure gas, steam, or low-viscosity fluid lines that carry minimal suspended solids.

Q: What is the recommended field routine for cleaning a loaded basket strainer safely?

A: Cleaning a loaded manual strainer follows a straightforward, sequential procedure:

1. System Isolation: Completely close the upstream and downstream valves to isolate the strainer section from the main flow.

2. Pressure Relief: Safely open the drain plug or vent valve to relieve internal pressure and drain any remaining process fluid.

3. Basket Rinsing: Loosen the top bonnet fasteners, lift the SS 304 mesh basket out vertically, wash out the trapped contaminants, and check the screen for signs of wear.

4. Recommissioning: Reinsert the clean basket, fit a fresh gasket to ensure a leak-proof seal, and secure the bonnet tightly before reopening the pipeline valves.
