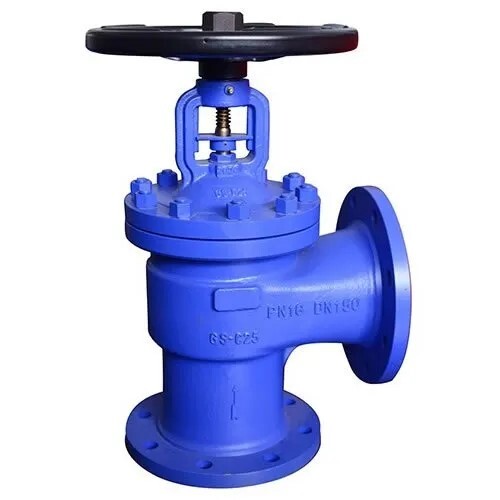

FlowBiz Heavy-Duty Brand Angle Globe Valve: High-Performance 90-Degree Flow Control

When standard inline valves fail to meet the rigorous demands of harsh industrial piping layouts, the FlowBiz Brand Angle Globe Valve steps in as the ultimate solution. Engineered by FlowBiz Exports Pvt. Ltd., this valve is a specialized modification of the traditional globe valve design, featuring inlet and outlet ports set at a precise 90-degree angle.

This smart geometric design allows the valve to function simultaneously as a highly efficient flow control mechanism and a 90-degree piping elbow, reducing the need for extra fittings, lowering installation costs, and minimizing space requirements.

Key Features & Engineering Benefits

FlowBiz Angle Globe Valves are meticulously manufactured to optimize fluid dynamics, eliminate maintenance headaches, and extend operational lifespans in critical applications.

1. Advanced Low-Pressure Drop (Prevents Crystallization)

The 90-degree body configuration creates a more streamlined flow path than standard globe valves. This significantly reduces the pressure drop across the line.

• The Benefit: Lower pressure drops mean less turbulence and a minimized risk of media crystallization or slurry buildup, making it ideal for chemical processing and polymer industries.

2. Dead-Space-Free Architecture (Anti-Corrosion Design)

Internal stagnant zones are breeding grounds for media accumulation, localized corrosion, and bacterial growth.

• The Benefit: The FlowBiz design is completely free of dead space, ensuring continuous, self-cleaning media flow and preventing premature body corrosion.

3. Integrated One-Piece Disc & Stem

Traditional valves often feature a multi-piece disc and stem assembly, which creates tiny crevices where fluids can stagnate.

• The Benefit: FlowBiz utilizes a unified, single-piece disc and stem design. By eliminating the gap between the disc and stem, we completely erase internal dead space, ensuring zero fluid entrapment and enhanced mechanical strength.

4. Rugged Integral Stellite Seat & Fully Stellite Disc Face

To combat the destructive forces of erosion, cavitation, and high-velocity flow, the seating surfaces must be incredibly tough.

• The Benefit: We feature an Integral Stellite Seat combined with a Fully Stellite Disc Face. This heavy-duty cobalt-base alloy shielding drastically reduces wear and tear, guaranteeing a bubble-tight shutoff even under extreme pressure and temperature cycles.

5. High-Integrity Bolted Bonnet (Class A Tight Flange Gasket)

System leaks at the body-bonnet joint can cause catastrophic failures and hazardous environmental leaks.

• The Benefit: Engineered with a robust bolted bonnet design utilizing a premium Class A tight body-bonnet flange gasket, this valve guarantees superior sealing integrity under fluctuating thermal stresses.

6. Low-Emission Stem Packing

Environmental regulations and plant safety demand zero fugitive emissions from valve stems.

• The Benefit: Equipped with advanced low-emission (Low-E) stem packing, FlowBiz angle globe valves prevent toxic or volatile organic compounds (VOCs) from escaping into the atmosphere, keeping your plant compliant with international eco-standards.

Technical Specifications Overview

Why Choose FlowBiz Exports Pvt. Ltd.?

As a trusted global manufacturer and exporter, FlowBiz Exports Pvt. Ltd. delivers precision-engineered valve solutions tailored to severe-service applications. Our Angle Globe Valves are widely utilized across power plants, chemical processing industries, oil & gas refineries, and fertilizer manufacturing units where reliability is non-negotiable.

When you choose FlowBiz, you invest in reduced downtime, lower maintenance overheads, and world-class engineering compliance.
