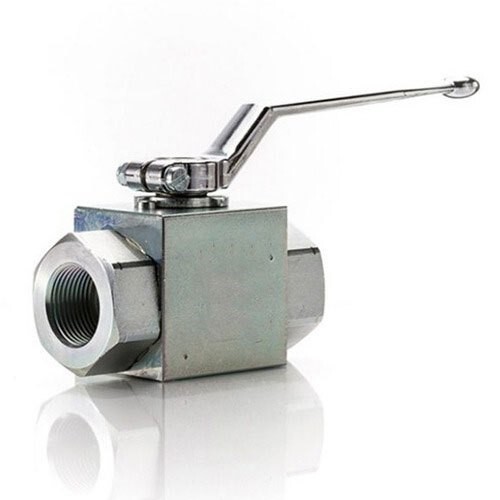

About Hydraulic High Pressure Ball Valve

High-Pressure Industrial Ball Valves | FlowBiz Exports Pvt. Ltd.

FlowBiz Exports Pvt. Ltd. is a premier manufacturer, supplier, and global exporter of high-pressure industrial ball valves in Surat, Gujarat, India. Engineered to provide secure shut-off and efficient flow control in the most demanding high-pressure environments, our heavy-duty ball valves deliver robust mechanical stability.

Constructed from the highest quality raw materials and tested under extreme conditions, FlowBiz high-pressure valves maintain absolute structural integrity under immense pipeline stress. We supply these certified, elite flow isolation components to major industrial hubs, manufacturing complexes, and hydraulic system installers across India and global export markets.

Technical Specifications & Manufacturing Range

Our Surat production facilities utilize advanced metallurgy and geometric tolerances to meet strict international pipeline codes:

Parameter	Specification & Engineering Standards
Size Range	Standard sizes from 1/2" to 10" inches (Sizes above 10" available on request)
Port Sizes	Flexible configurations from 1/2" inch to 6" inches
Pressure Velocity	Engineered to withstand heavy high-pressure thresholds up to 6000 PSI
Design Compliance	Built to fulfill international ANSI, DIN, and BS standards
Testing Standards	100% rigorously tested to API 598 and BS EN 12266 codes
Sealing Threshold	ANSI/FCI 70-2 Leakage Class VI (Absolute bubble-tight isolation)
Thermal Threshold	Rated for continuous safe operation at elevated temperatures up to 220C
Body Architectures	Versatile Two-Piece (low maintenance) or Three-Piece (fast inline service) body designs

Strategic Engineering Features & Benefits

1. Advanced Leak Protection & Double O-Ring Seals

To ensure absolute containment in volatile high-pressure lines, our valves are equipped with a redundant double O-ring sealing system. Combined with premium graphite or PTFE packing materials, this dual-layer architecture provides superior stem and seat sealing properties, completely eliminating fugitive emissions and pipeline weeping.

2. Streamlined Automation & Universal Mounting

Every high-pressure valve features an integrated ISO 5211 mounting pad machined directly into the top works. This standard interface facilitates straightforward, direct installation of pneumatic or electric actuators. It streamlines plant automation and remote PLC execution without the expense of custom mounting brackets or external alignment couplings.

3. Sturdy Metallurgies & Surface Shields

Our valves are built to handle aggressive and diverse media loopsincluding water, oil, gas, and volatile chemicals. The heavy-walled forged or cast bodies are treated with high-durability polished or powder-coated finishes that shield the raw metallurgy against external corrosion, atmospheric oxidation, and chemical wear.

4. Flexible End Connection Matrix

To accommodate varying hydraulic system layouts and industrial piping criteria, FlowBiz provides complete connection flexibility. Choose from:

• Flanged Ends: Ideal for heavy industrial networks requiring quick bolt-on replacement.

• Threaded Ends (Screwed): Best for low-cost, compact installations in smaller utility lines.

• Socket Weld & Butt Weld Ends: Permanently fused connection choices for critical high-pressure lines where joint leaks cannot be tolerated.

Structural Body Selection: Two-Piece vs. Three-Piece

To optimize plant upkeep and downtime budgets, FlowBiz offers two distinct structural layouts for high-pressure systems:

• Two-Piece Ball Valves: Composed of a main body and one end piece. This split-body structure offers a highly secure, cost-effective design with minimal external body joints, making it ideal for general high-pressure processing lines where routine internal valve cleaning is not required.

• Three-Piece Ball Valves: Composed of a central body capsule containing the ball and seats, sandwiched between two independent end connectors. This layout is critical for complex or high-cycle processing plants; technicians can completely swing out or service the center section without cutting or unbolting the end connections from the pipe, eliminating lengthy plant shutdowns.

Frequently Asked Questions (FAQs)

Q: Why are API 598 and BS EN 12266 testing codes vital for a 6000 PSI valve?

A: In high-pressure applications up to 6000 PSI, any minor material porosity or microscopic gap in the seating will lead to dangerous jet leakage or premature component erosion. Testing standards matching API 598 (valve inspection and testing) and BS EN 12266 (testing of metallic valves) mandate rigorous hydrostatic shell tests and pneumatic seat validations. This guarantees that every valve arriving at your facility is certified defect-free and bubble-tight.

Q: How do graphite packing materials perform under extreme thermal stress?

A: When process media temperatures climb up to 220C, traditional soft polymers can degrade or cold-flow under high pressure. Graphite packing materials maintain high mechanical compliance, dimensional stability, and self-lubrication across extreme temperature spans, ensuring the stem seal remains completely compressed and leak-free.

Q: What operating options are available for the FlowBiz high-pressure series?

A: Our valves support complete operational versatility. They can be operated manually via ergonomic heavy-duty hand levers, outfitted with mechanical gearboxes to reduce manual breakout torque on large sizes, or fully automated using pneumatic or electric actuators for integrated plant process control.

Q: Why is FlowBiz considered a top high-pressure valve manufacturer in Surat?

A: Operating as a leading exporter and manufacturer in Surat, FlowBiz Exports Pvt. Ltd. merges premium industrial metallurgy with highly competitive factory-direct pricing. By maintaining strict QA validation pipelines and offering flexible, code-compliant designs from 1/2" to 10" inches, we deliver reliable fluid management components tailored for both rapid domestic deployment and intensive international trade contracts.
