FlowBiz Valves is a premier, engineering-driven manufacturer, supplier, and global exporter of high-integrity Metal-Seated and Flanged Ball Valves in India. Operating through our advanced industrial manufacturing footprintwith an extensive technical distribution matrix across Pune, Maharashtra, and pan-Indiawe engineer these specialized valves to anchor critical lines where standard soft-seated valves would fail within minutes.

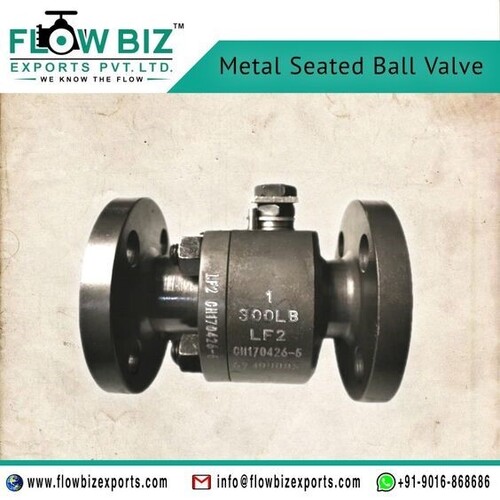

Standard soft-seated valves utilizing polymer seals like PTFE are limited by thermal thresholds and are easily scored or torn by abrasive particles. The FlowBiz Metal-Seated Ball Valve series resolves this vulnerability by matching a precision-ground metallic ball with solid metal seat rings. Both sealing faces are enhanced with specialized thermal spray coatings, enabling absolute, bubble-tight fluid containment under extreme physical conditions. This makes them indispensable for handling superheated steam, catalyst slurries, mining tailings, and hot hydrocarbons.

Technical Specifications & Compliance Matrix

Our severe-service production series is precision-machined from traceable stock to satisfy rigid international safety and pressure containment criteria:

Advanced Stem Design & Packing Features

The moving stem assembly is a frequent vulnerability for fugitive emissions in severe-service lines. To prevent atmospheric leakage and maximize operational safety, FlowBiz utilizes a highly advanced stem architecture:

1. Fully Guided Stem with Bimetallic Gland Bearings

To counter the heavy lateral forces generated by high-pressure process fluids, the stem is fully guided by high-performance bimetallic gland bearings. These heavy-duty bearings prevent stem tilting, minimize operational friction, and eliminate uneven structural loading on the packing rings, ensuring smooth quarter-turn rotation even under maximum line pressure.

2. Extended Stem Configuration

For extreme-temperature operations, the valve incorporates an extended stem design. This extension moves the packing box and actuator setup away from the main pipeline body. This distance protects the packing materials and automated electronics from intense heat radiation or freezing cryogenic temperatures, ensuring a long, dependable system lifespan.

3. Double-Packed Stuffing Box

To provide dual-layer safety against hazardous fluid emissions, the valve features a double-packed stuffing box configuration. This setup utilizes two separate sets of compression packing rings separated by an intermediate lantern ring. Any trace leakage that passes the primary lower packing is safely caught by the secondary upper packing, creating an ultra-reliable packing seal for critical processes.

Strategic Safety & Protection Systems


                          Stem Safety Systems
                       =========================


  Anti-Static Grid         Blowout-Proof         Certified Fire
  Dissipates Risk        Internal Shoulder       Safe Protection


• Integrated Anti-Static Design: Fluid friction moving through pipeline valves can generate significant static electricity. Our integrated anti-static device maintains permanent electrical continuity between the ball, stem, and valve body, safely discharging static build-up to prevent sparks when handling flammable media.

• Blowout-Proof Stem Architecture: Engineered with an internal bottom-entry mechanical shoulder. The stem cannot be ejected or blown out under high internal line pressures, ensuring field operator safety.

• Certified Fire-Safe Protection: Essential for high-risk zones like oil refineries, petrochemical complexes, and gas terminals. The all-metal sealing boundary inherently withstands high-heat events, maintaining valve integrity and preventing hazardous fluid leakage during unexpected plant fires.

High-Performance Coating Matrix & Seat Selections

Achieving a long operational lifespan under abrasive conditions requires specifying the correct hard-facing chemistry for the internal trim parts:

• Tungsten Carbide (WC-Co) Coating: Delivering exceptional mechanical hardness and wear resistance, this coating is ideal for abrasive slurries, mining tailings, and high-velocity sand particles up to 400C.

• Chrome Carbide (Cr3C2) Coating: Providing high physical stability and oxidation resistance, this hard-facing option handles superheated steam loops and corrosive chemical processes up to 600C.

Lower Total Cost via Replaceable Components

To prevent high capital replacement expenses, the valve trim features fully replaceable seats. If the metallic sealing boundaries suffer long-term erosion from abrasive media, maintenance crews can quickly swap out the seat rings during routine maintenance shutdowns. This extends the valve's overall service life and lowers inventory costs.

Flexible Connection & Automation Options

FlowBiz flanged ball valves are engineered to integrate seamlessly into new capital projects or existing piping retrofits across diverse installation setups:

• End Connections: Integral Flanged ends (machined to ANSI, DIN, or IS standards), Butt-Weld (BW) connections for permanent leak-free transmission lines, Socket Weld (SW), and Threaded profiles.

• Actuation Mechanisms: Direct-mount manual hand levers or mechanical gear operators for high-torque configurations. Thanks to the integral ISO 5211 mounting pad, the valve can couple directly to pneumatic cylinders or electric motorized actuators without requiring custom brackets, making automated system retrofits fast and straightforward.

Frequently Asked Questions (FAQs)

Q: When exactly should a metal-seated ball valve be chosen over a soft-seated variant?

A: You should specify a metal-seated ball valve whenever your process parameters involve operating temperatures exceeding 200C, abrasive suspended particles (such as catalyst fines, fly ash, sand, or heavy slurries), or when the process media chemically degrades soft polymers. Common installations include high-pressure steam headers, hydrocarbon cracking lines, mining lines, and chemical pulp loops where soft-seated valves would quickly melt, deform, or leak.

Q: What distinct advantage does compliance with API 6D, BS 5351, and ISO 17292 provide?

A: Adhering to these strict international standards ensures that the valve's wall thickness, pressure boundary design, stem safety margins, and materials meet recognized global engineering criteria. This design compliance ensures consistent quality, long service life, and reliable performance in high-pressure, critical process installations across both domestic Indian and international projects.

Q: How do Pune manufacturers verify the bubble-tight leakage performance of metal seats?

A: Every individual metal-seated valve undergoes a rigorous pressure containment inspection at our facility in strict compliance with API 598 protocols. This inspection checks the structural density of the shell and verifies the sealing face under high-pressure hydrostatic and pneumatic testing. Precision grinding allows our hard-coated metal seats to achieve a certified Class VI absolute tight shut-off, preventing fluid loss and safeguarding the plant environment.

Q: Why choose FlowBiz as your long-term metal-seated valve partner in Pune?

A: Operating from Pune, FlowBiz Valves balances precision severe-service metallurgy with strict compliance to global validation benchmarks. By utilizing traceable castings, applying advanced tungsten or chrome carbide coatings, and utilizing multi-layered stem safety systems, we eliminate field reliability concerns. Our capacity to deliver high-quality, fully customized flanged and metal-seated valves tailored to your exact application footprint makes us a trusted supply chain partner across India and global export markets.
