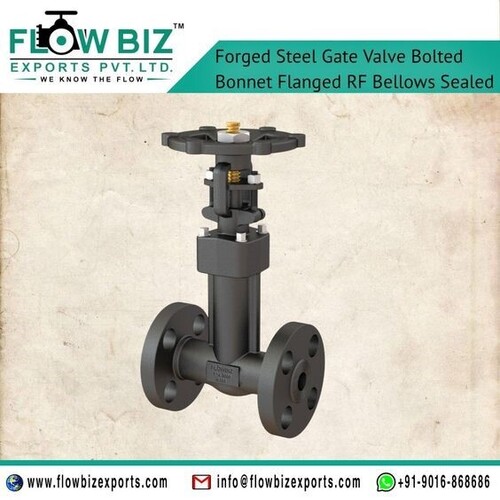

FlowBiz High-Performance Forged Steel Gate Valves: Supreme Integrity for Severe Service

Industrial processing networks dealing with high-pressure spikes, rapid thermal cycling, and volatile fluid velocities require valves engineered beyond standard cast metallurgy. FlowBiz Exports Pvt. Ltd. fulfills this critical safety directive with our premium range of Forged Steel Gate Valves.

Unlike traditional cast valves, which can contain microscopic internal porosity or sand voids, the forging process subjects solid steel blocks to immense mechanical pressure and heat. This refines the grain structure of the metal, creating a highly dense, uniform, and robust valve body capable of enduring intense pipeline stresses without structural failure.

Our forged steel gate valves are engineered specifically for high-pressure, high-temperature industrial environments. Featuring a standard parallel or wedge gate mechanism that slides perpendicular to the fluid stream, these manual valves provide an absolute, bubble-tight shut-off. This makes them an invaluable asset for critical utility lines, isolation manifolds, and primary headers across India and global export markets.

Technical Specifications & Engineering Framework

FlowBiz forged steel components are designed, manufactured, and tested to conform to rigorous global engineering protocols, including API 602 and ASME B16.34 criteria.

Key Performance Advantages & Structural Attributes

1. High-Density Forged Structural Integrity

The forging process eliminates the risk of structural wall weeping or body deformation under sudden high-pressure transients. Our valves maintain strict dimensional tolerances at elevated temperatures, preventing the valve body from warping, binding, or distorting over years of continuous field operations.

2. Outside Screw & Yoke (O.S. & Y.) Design

Outfitted with an O.S. & Y. bonnet assembly, the operating threads of the valve stem are located entirely outside the fluid envelope. This prevents high-pressure water, abrasive scales, or hydrocarbons from eroding or seizing the critical drive threads, ensuring smooth manual operation during emergency isolation or routine plant shutdowns.

3. Precision Polished Sealing Surface

The internal gate and matching seat rings are fine-lapped and polished to remove microscopic surface friction. This ultra-smooth interface reduces the operational torque required to turn the handwheel, isolates media-borne particulates from scoring the seals, and minimizes wear for an extended service life.

Extensive Pan-India & Global Distribution Network

Operating out of our primary manufacturing corridor in Pune, Maharashtra, FlowBiz Exports Pvt. Ltd. maintains an agile production and supply chain infrastructure. We serve as a trusted partner for major industrial plants, refineries, and chemical grids across India, including:

• Maharashtra: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur

• Gujarat: Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch

• Madhya Pradesh & Tamil Nadu: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem

Frequently Asked Questions (FAQs)

Q: Why is a forged steel valve structurally superior to a standard cast steel valve?

A: Cast valves are manufactured by pouring liquid metal into a sand mold, which can trap air pockets, gas bubbles, or impurities as it cools, potentially creating structural weak points. Forged valves are hammered or pressed into shape from a solid block of steel while hot. This mechanical forging compresses the metal, eliminating internal voids and aligning the grain structure to give the valve significantly higher impact strength and pressure containment capabilities.

Q: What is the recommended step-by-step installation process for a flanged forged gate valve?

A: 1. Thoroughly clean the faces of both the valve flanges and the pipeline flanges to remove dirt, scale, or welding slag.

2. Align the pipeline piping to ensure it sits perfectly parallel with the valve face, preventing alignment stresses.

3. Insert a compatible industrial gasket between the sealing faces.

4. Pass high-tensile fasteners through the bolt holes and tighten the nuts progressively in a star-pattern sequence using a torque wrench to ensure uniform gasket compression and a leak-proof mechanical joint.

Q: How does the rising stem on a manual forged gate valve enhance facility safety?

A: The rising stem moves upward linearly outside the valve body as the handwheel is rotated to open the valve. This gives plant operators an immediate, unambiguous visual confirmation of the valve's internal position from a distance. It eliminates operator guesswork, which is a vital safety advantage during plant turnarounds or emergency isolation procedures.

Q: When should an industrial facility choose a manual valve over an automated version?

A: Manual handwheel gate valves are highly recommended for isolation points that are cycled primarily during maintenance turnarounds, safety checks, or system modifications. Because these valves do not rely on electrical wiring, pneumatic air lines, or digital control loops, they remain 100% operational during total plant power failures, providing a dependable and cost-effective mechanical safety barrier.

Q: What steps are included in the quality validation process at the Pune manufacturing plant?

A: Every single valve batch undergoes non-destructive examination (NDE) alongside mandatory hydrostatic shell and pneumatic seat-leakage testing. We verify that each valve holds pressures well beyond its rated class without structural weeping or drop-by-drop seat bypass, supplying every batch with material traceability and test certificates before field dispatch.
