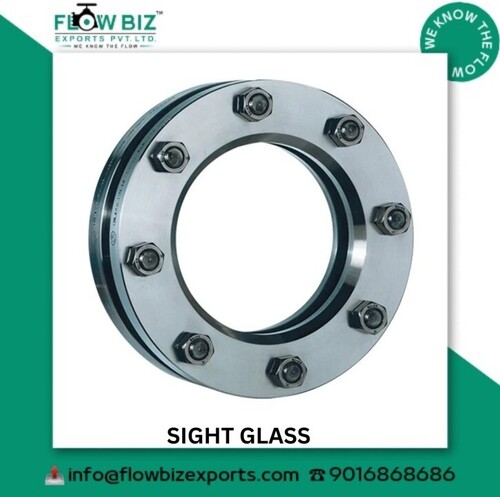

About Double Window Sight Glass Manufacturer Vapi Exporter

High-Quality Industrial Sight Glass Indicators | FlowBiz Exports

FlowBiz Exports is a premier, engineering-driven manufacturer, supplier, and global exporter of high-precision industrial Sight Glass Indicators and Liquid Level Gauges. Operating from our advanced manufacturing hubs in India, including Vapi, Gujarat, we precision-engineer a comprehensive selection of visual flow indicators and water gauges.

Engineered to function as heavy-duty level sensors and flow monitors, our sight glasses feature highly transparent, pressure-tight viewing tubes or windows. These allow plant operators to inspect internal fluid movement, confirm color changes, verify phase transitions, and monitor liquid levels in tanks, vessels, reactors, and boilers. This real-time visual clarity ensures optimal process control, product quality, and workplace safety without exposing personnel to hazardous process media.

Technical Specifications & Operational Limits

Every FlowBiz sight glass is designed, machined, and verified to satisfy strict international pressure containment and pipeline safety metrics:

Parameter	Technical Specification & Engineering Limits
Glass Type Options	High-purity Borosilicate Glass or Toughened Glass tubes/windows
Sealing Gasket Matrix	Chemical-grade PTFE, Graphite, and Compressed Asbestos Fiber (CAF)
Retaining & Pin Fasteners	High-tensile Stainless Steel Pins and heavy-duty clamping hardware
Body Construction Styles	Available in Straight or Angular Types; Single or Double Window setups
Pressure Boundary Rating	Operating threshold up to 10 kg/cm
Hydrostatic Proof Test	Factory validated under 1.5 times the rated working pressure
Thermal Operating Envelope	High-temperature operational stabilization up to 200C
Installation Alignment	Multi-plane flexibility: Optimized for both Vertical and Horizontal lines
Manufacturing Standards	Built in strict compliance with BS, ASTM, IS, DIN, ANSI, and JIS
Surface Finish Profiles	High-grade Shot Blasting, Epoxy Painting, or Mirror Polishing

Innovative Structural Designs for Enhanced Safety

To provide optimal flow visibility across diverse piping arrangements and industrial spaces, FlowBiz offers sight glasses in multiple structural layouts:


                  FlowBiz Sight Glass Structural Layouts




  [STRAIGHT BODY TYPE]         [ANGULAR BODY TYPE]           [DOUBLE WINDOW STYLE]
   For linear pipe runs.        Fits 90-degree elbows.        Opposite twin windows.
   Unobstructed flow path.      Simplifies tight spaces.      Light passes straight through.

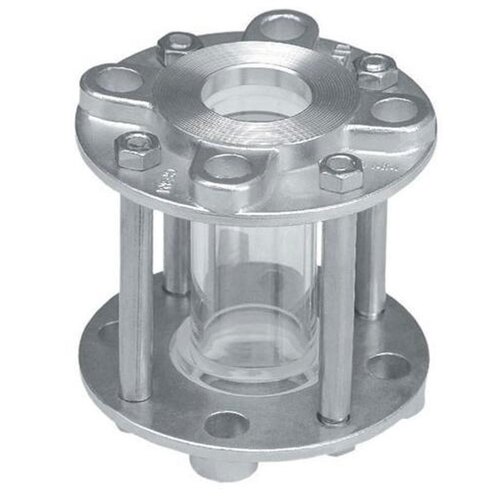

• Straight vs. Angular Types: Straight-through bodies provide an unobstructed view of linear fluid streams. Angular types are engineered to sit directly at 90-degree pipeline turns, functioning as both an instrumentation window and a structural elbow to save physical space on compact process skids.

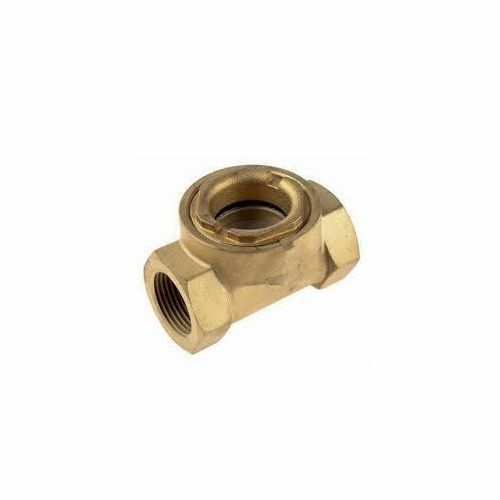

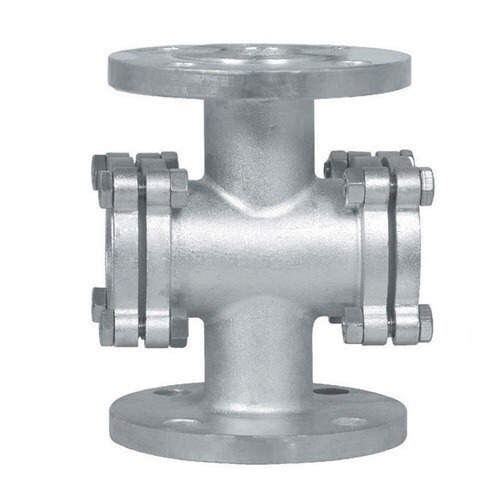

• Single vs. Double Window Options: Single window models offer a compact, budget-friendly monitoring point for clean utility streams. Double window models place two transparent windows directly opposite each other, allowing ambient light to shine straight through the fluid column. This makes it much easier to detect tiny bubbles, suspended solids, slurries, or color shifts in dark or viscous fluids.

Strategic Material Selection & Quality Processes

1. High-Performance Borosilicate & Toughened Glass

Industrial sight glasses face severe physical loads, including thermal shock and internal erosion. FlowBiz uses high-grade borosilicate and toughened glass tubes that provide exceptional thermal and chemical resistance. These robust materials withstand sudden temperature spikes up to 200C and high operating pressures without clouding, etching, or cracking, ensuring long-term visibility and safe operation.

2. Comprehensive Engineered Gasket Selection

To eliminate the risk of external leaks and fugitive emissions, our sight glasses utilize precision-cut gaskets tailored to specific chemical profiles:

• PTFE (Teflon): Provides total chemical inertness, making it the ideal choice for highly aggressive acids, strong alkalis, and pure pharmaceutical solvents.

• Graphite: Formulated for high-temperature thermal fluids and superheated steam lines where maximum thermal stability is required.

• CAF (Compressed Asbestos Fiber): Delivers excellent mechanical strength and reliable sealing under steady structural and pressure loads.

3. Rigorous Quality Validation and Testing

Every sight glass manufactured at our Vapi facility undergoes a strict validation process to guarantee field reliability. The raw metal housings are finished using advanced shot blasting, corrosion-resistant epoxy painting, or high-purity mirror polishing. After assembly, every unit is subjected to an industrial pressure test at 1.5 times its rated working pressure, ensuring zero tracking leaks, complete structural safety, and full compliance with global manufacturing codes before shipment.

Versatile Performance Across Industrial Sectors

FlowBiz high-quality sight glasses deliver dependable visual monitoring across a broad spectrum of heavy processing industries globally:

• Chemical, Petrochemical, & Oil Refineries: Provides clear, safe observation of aggressive chemicals, hydrocarbons, and processing streams under continuous pressure.

• Pharmaceuticals, Food & Beverage, & Breweries: Utilizes mirror-polished stainless steel housings and clean borosilicate windows to ensure hygienic fluid tracking with zero trace contamination.

• Utilities, Power Stations, & Biofuels: Offers reliable inline level sensing for superheated water headers, boiler feed networks, and fuel processing lines.

• Wastewater Treatment & Industrial Management: Allows operators to easily monitor effluent clarity, check filtration performance, and verify chemical dosing inputs.

Frequently Asked Questions (FAQs)

Q: How do I select the right sight glass configuration for my facility's requirements?

A: Choosing the correct sight glass depends on a few core parameters. You should identify your industrys hygiene and design standards, the specific international flange compliance required (such as ANSI, DIN, or JIS), the type of media (liquid, gas, or steam), the maximum operating temperature and pressure limits, and your mounting style. Additionally, you should specify your required inspection length and viewing dimensions at the time of ordering so our engineering team can custom-tailor the sight glass to your exact process footprint.

Q: What mechanical advantages do stainless steel pins provide in a sight glass assembly?

A: Managing high-pressure fluid lines requires uniform mechanical clamping across the glass panel. FlowBiz sight glasses utilize high-strength stainless steel pins and tie rods to secure the retainer rings to the main body housing. Stainless steel prevents environmental rust and chemical corrosion from seizing the fasteners, while its high tensile strength ensures steady, balanced compression across the gaskets. This protects the glass from uneven stress concentrations and guarantees a long-lasting, leak-proof seal.

Q: Can these visual flow indicators be installed on both vertical and horizontal lines?

A: Yes. Our sight glasses are engineered with versatile mounting options that support both vertical and horizontal installations. This flexible design allows them to be easily integrated into vertical reactor outlet lines, horizontal chemical distribution headers, or compact pump bypass loops while maintaining optimal viewing clarity and sealing safety.

Q: Why partner with FlowBiz Exports as your premier sight glass manufacturer in India?

A: FlowBiz Exports balances precision severe-service industrial engineering with flexible custom manufacturing and excellent commercial value. By providing traceable, high-grade body materials, high-durability borosilicate windows rated up to 200C, a versatile range of gasket materials (PTFE, graphite, CAF), custom inspection lengths, and strict pressure testing at 1.5 times working limits, we eliminate operational risks in the field. Our focus on reducing maintenance downtime and providing robust, highly reliable level and flow monitoring instruments makes us a trusted supply chain partner across India and international export markets.
