API 609 High-Performance Offset Disc Butterfly Valves FlowBiz Gandhinagar

Welcome to FlowBiz Export Private Limited, a certified global manufacturing authority for high-capacity quarter-turn fluid mechanics, thermal utility isolation, and premium low-torque pipeline networks. Operating state-of-the-art metallurgical foundries, high-precision multi-axis CNC machining complexes, and automated hydrostatic compliance testing cells in Gandhinagar and Ahmedabad, Gujarat, we stand as India's premier manufacturer, supplier, and global B2B exporter of industrial Double Flange Offset Disc Butterfly Valves.

Our high-performance offset disc butterfly assets are engineered specifically to provide a permanently tight closure across challenging industrial distribution manifolds. From our primary corporate manufacturing hubs in Gujarat, we seamlessly support critical processing networks across India's key industrial corridorsincluding Rajkot, Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur, Indore, Dewas, Bhopal, Chennai, Coimbatore, and Salembacked by fast-tracked maritime logistics for direct project export worldwide.

Technical Specifications & Compliance Parameters

FlowBiz Offset Disc Butterfly Valves feature an advanced eccentric design where the shaft axis is offset behind the centerline of the sealing face and to one side of the pipe centerline. This double offset profile allows the disc to cam lift smoothly out of the seat upon opening, drastically dropping operating friction, lowering breakdown torque, and keeping the sealing ring protected from premature wear.

Core Engineering Features & Design Advantages

1. Advanced Double Offset Disc Geometry

In standard concentric butterfly valves, the disc continuous rubs against the rubber liner during its full 90-degree rotation, causing deep friction gouges, high operational torque, and frequent seat tearing. The FlowBiz offset disc design eliminates this wear. The eccentric shaft geometry causes the disc to engage the seat ring only during the last few degrees of closure, providing a permanently tight closure, reducing pressure drop, and significantly extending the asset's service life.

2. High-Strength Ductile Iron Construction

To safely manage medium pressure and temperature environments without structural fatigue, our valve casings are cast from premium high-tensile ductile iron (ASTM A536). Ductile iron offers superior strength, structural elasticity, and excellent corrosion resistance compared to standard gray irons. This tough cast housing naturally absorbs pipeline stresses and external impacts, making it ideal for chemical processing, water treatment, or manufacturing lines.

3. Replaceable Soft Seat Design for Class VI Sealing

Our valves feature a field-proven soft seat design that is exceptionally easy to replace during routine plant upkeep cycles. The flexible seat profile ensures greater sealing capacity by conforming perfectly to the polished edge of the offset disc. This tight structural contact achieves a true Leakage Class VI (Zero Leakage) rating, making the valve suitable for both tight isolation and precise throttling service.

4. Lightweight, Compact Body with Low-Torque Execution

Featuring a short face-to-face dimension and a compact wafer/sandwich design body, our valves carry significantly less weight than traditional gate or globe valves, making them incredibly easy to install between existing piping sections. Furthermore, because the eccentric geometry lifts the disc away from the seat instantly upon rotation, it ensures lower torque with any fluid, allowing manual operators to manage the handle smoothly without needing heavy gear boxes or high-power electric lines.

Strategic Cross-Industry Applications

FlowBiz high-performance offset disc butterfly valves are specified across primary processing lines:

• Industrial Water Treatment & Filtration: Managing raw intake water lines, membrane isolation manifolds, chemical backwash loops, and wastewater treatment systems.

• Chemical Processing & Fluids Distribution: Low-friction isolation and throttling of mild chemical compounds, process utility loops, and acidic wastewater mains.

• Oil, Gas, & Lubricant Manifolds: Low-pressure refined oil lines, non-flammable gas utility pipelines, and bulk fluid transport circuits under medium pressures.

• Manufacturing Facility Processing Utilities: Central facility cooling water headers, compressed air distribution loops, and factory process air manifolds.

Frequently Asked Questions (FAQ)

Q: When should an engineer select a double flange offset disc butterfly valve over a standard wafer design?

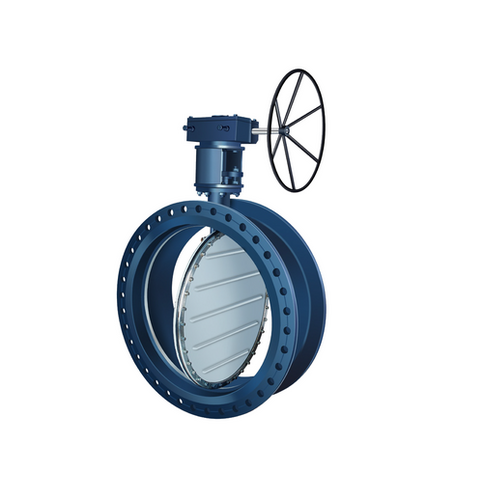

A: A wafer-style valve is clamped between piping flanges and depends entirely on the compression of the surrounding pipeline bolts to stay in position. A Double Flange Design features independent bolt holes on both sides of the valve casing, allowing it to bolt directly to matching pipe flanges. This design is highly advantageous when you require strong, leak-proof connections and easier installation between piping sections, particularly at dead-end locations or where downstream pipe loops must be unbolted for maintenance while the upstream line remains active.

Q: Why is this valve classified as a uni-directional isolation valve?

A: High-performance double offset butterfly valves are engineered as a Uni-Directional Valve to leverage the system's internal pressure to enhance the seal. When fluid enters from the recommended high-pressure upstream direction, the incoming line pressure presses the offset disc directly into the soft seat ring, maximizing sealing tension and achieving a bubble-tight, zero-leakage shut-off. While it can withstand mild backpressures, installing the valve in line with the marked flow arrow guarantees optimal performance and absolute sealing security.

Q: What makes this compact valve suitable for continuous throttling service?

A: In concentric valves, leaving the disc partially open exposes the elastomer liner to high-velocity fluid currents, causing rapid seat erosion and localized washouts. Because the offset disc design reduces friction and wear during operation, the disc can be held at partial angles between 0 and 90 without straining the sealing components. The disc handles high-velocity fluid paths smoothly, making it excellent for on-off as well as throttling services.

Q: What is the process for maintaining and replacing the soft seat on this valve?

A: FlowBiz valves utilize a low-maintenance version with an accessible seat retainer ring. If the soft seat needs to be replaced after years of continuous service, maintenance technicians can unbolt the retainer ring, remove the worn soft seat, and drop in a fresh factory liner. This quick repair can be completed right in the field workshop without requiring complex machining or complete valve replacement, reducing plant downtime and keeping your operation secure.

Q: How can project procurement managers and engineers coordinate a direct factory quote in Gandhinagar?

A: Sourcing can be initiated by contacting our corporate sales and engineering division in Gandhinagar or Ahmedabad, Gujarat. Our technical staff will guide you through a comprehensive consultationassessing your precise nominal pipe dimensions (1/2" to 12"), target process media parameters (water, gas, or oil), system temperature boundaries, and preferred installation profile (Wafer vs. Double Flanged)to deliver a certified product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a high-capacity water filtration loop or upgrading an industrial process distribution manifold? Contact our Gandhinagar sales and engineering office today to receive complete technical data sheets, certified dimensional blueprints, and an itemized commercial proposal.
