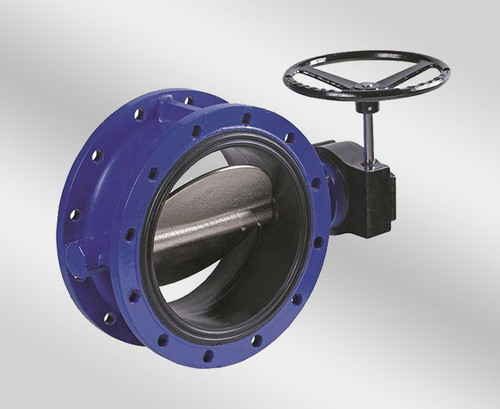

FlowBiz Double Flanged Butterfly Valves High-Capacity Flow Isolation & Cost-Effective Control

Welcome to the engineering authority for large-bore fluid containment, low-torque flow isolation, and cost-effective pipeline management. Operating advanced large-scale vertical turning lathes, precision concentric disc-grinding centers, and automated hydrostatic test corridors, FlowBiz Export Private Limited specializes in manufacturing premium Double Flange Butterfly Valves.

In large-diameter piping systems, relying on traditional gate or ball valves can drastically inflate project costs, increase structural weight loads, and expand the mechanical footprint of the plant. FlowBiz addresses these structural challenges by engineering an optimized double-flanged butterfly valve series from our primary manufacturing and technical supply center in Gandhinagar, Gujarat, India. Acting as a lightweight, space-saving, and highly reliable alternative, these valves use a pivoting concentric or eccentric disc to achieve immediate flow containment. They offer an exceptionally efficient solution for regulating volume across water grids, chemical headers, and industrial utility pipelines.

Technical Specifications & Compliance Parameters

Every FlowBiz double flanged production block is subjected to 100% mandatory pressure testingwhere the outer shell is verified at 1.5 times the design pressure and the seat boundary is validated at 1.1 times the rated pressure limitensuring an absolute Class VI bubble-tight shut-off.

Advanced Disc Metallurgy & Elastomeric Seating Matrix

To maximize chemical resistance and extended equipment service life, FlowBiz custom-tailors the valve's internal material profile to match your specific process fluid properties:

Robust Structural Discs

• Ductile Iron & Cast Iron: Optimized for general municipal water distribution, low-pressure cooling lines, and HVAC loops.

• Stainless Steel (SS304 / SS316): Selected for aggressive chemical reagents, acidic solutions, food-grade processing, and volatile solvents.

• Aluminum Bronze: Engineered for harsh maritime cooling loops, offshore seawater intake headers, and brackish brine filtration systems.

High-Purity Renewable Seats

• EPDM Rubber: Excellent for standard industrial water lines, heating and cooling water circuits, and low-pressure utility steam.

• Nitrile Rubber (Buna-N): Specially formulated to resist degradation when exposed to hydrocarbons, fuel oils, lubricating oils, and gases.

• PTFE (Teflon): The premier choice for absolute chemical isolation, handling aggressive acids, strong bases, and corrosive chemical media.

Kinematics & Space-Saving Flow Dynamics

The high-performance efficiency of the FlowBiz double-flanged concentric design relies on a streamlined disc profile paired with direct mechanical torque transmission:

 [ DIRECT MOTORIZED / PNEUMATIC CYLINDER ACTUATION ] \/ +-------------------|-------------------+ | ISO 5211 Standard Top-Works Flange | +--+---------------------------------------+--+ | [ HEAVY-DUTY DOUBLE-FLANGED OUTER BODY ] | | /---| |---\ | ============> |====> | Precision Ground Disc | ====>| ================> High-Volume | | Rotates 90-Degrees | | High-Throughput Output Process Stream | \---| |---\ | Zero-Leakage Class VI +-----------| EPDM / NITRILE SEAT |---------+ | [ INTEGRAL SECURE BOLTED FLANGE FACES ] | +------------------------------------------+ (Concentric Disc Path = Low Operating Friction Torque)

• Low-Friction Concentric Mechanics: The precision-machined disc rotates 90 degrees on a heavy-duty continuous shaft. The edge of the disc features a micro-finished, radiused profile that presses smoothly into the stationary elastomeric seat. This tight geometric fit minimizes friction wear during opening and closing cycles, ensuring low operating torque and easier operation.

• Double-Flanged Bolted Stability: The outer body features independent flange sets on both the upstream and downstream faces. This design allows the valve to be securely bolted directly between pipeline flanges, making installation straightforward and providing exceptional structural stability that prevents pipeline alignment issues under heavy thermal expansion or piping stress.

• Streamlined Automation Readiness: Equipped with an integrated ISO 5211 top works flange, our butterfly valves connect directly to high-cycle pneumatic cylinders, smart electric motors, manual levers, or mechanical worm gearboxes without requiring custom, expensive brackets.

Strategic Fluid & Process Applications

Our High-Performance Double Flanged Butterfly Valves provide critical flow management across multiple utility lines:

• Municipal Water & Wastewater Plants: Managing high-volume raw water intake, filtration grids, sewage treatment air lines, and distribution mains.

• HVAC & Industrial Cooling Networks: Regulating large-scale chilled water manifolds, cooling tower loops, and building plumbing systems.

• Chemical Processing & Industrial Pipelines: Isolating aggressive acid lines, secondary chemical solutions, and process water loops.

• Refining, Fuel, & Marine Transport: Controlling low-pressure oil lines, process gas distribution headers, fuel storage manifolds, and shipboard utility systems.

Comprehensive Supply Chain & National Footprint

Operating from our primary manufacturing and export center in Gandhinagar, Gujarat, FlowBiz coordinates an efficient national and international logistics network. We maintain deep inventory reserves to ensure rapid order fulfillment, complete material traceability, and responsive technical support across all major industrial regions:

• Gujarat Processing Hubs: Gandhinagar, Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, and Bharuch.

• Maharashtra Industrial Corridors: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, and Kolhapur.

• Central & Southern Manufacturing Zones: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and all other major regional processing zones.

Frequently Asked Questions (FAQ)

Q: How is the double flange butterfly valve operated, and what configurations are available?

A: FlowBiz valves offer excellent operational flexibility. They can be operated manually using a standard lever handle or configured with a heavy-duty mechanical gearbox for larger pipelines. For automated lines, they easily integrate with high-cycle pneumatic actuators or smart electric motorized controls via the standard top-works interface, allowing for seamless remote process management.

Q: What are the valves construction materials, and how do they benefit performance?

A: We construct our valve discs from a selection of premium alloysincluding cast iron, ductile iron, stainless steel (SS304/SS316), and aluminum bronzepaired with durable EPDM, nitrile, or PTFE seats. These combinations provide exceptional structural strength, outstanding chemical compatibility, and robust corrosion resistance across diverse process environments.

Q: Where can these butterfly valves be used most effectively?

A: These valves are highly effective in water treatment plants, industrial processing pipelines, HVAC circuits, municipal plumbing headers, and chemical manufacturing skids. Their robust construction allows them to safely and efficiently control water, steam, gas, oil, acids, solvents, and fuel within a thermal envelope of -10C to 120C.

Q: What industry standards do the valves comply with?

A: Every valve is designed and manufactured in strict compliance with international standards, including ISO 2531 and IS 1538 for flanged end connections, and IS 5163 and EN 558 for exact face-to-face dimensions. To guarantee safety, every production run undergoes mandatory pressure testing where the body is held at 1.5 times and the seat at 1.1 times the rated design limit before shipment.

Q: How does the valve ensure zero leakage and low friction during operation?

A: The advanced concentric design utilizes high-purity EPDM, nitrile, or PTFE seats to create a tight, uniform seal around the disc edge, achieving a certified Class VI zero-leakage rating. Precision tolerances and a high-quality surface finish on the disc edge minimize internal friction, ensuring smooth manual operation and reducing actuator torque requirements.

Q: What is the typical process to install or mount these valves?

A: The double-flanged outer body features pre-drilled bolt holes that align perfectly with standard matching pipeline flanges, allowing for a secure, independent bolted installation. Future automation or actuator retrofits can be easily performed inline thanks to the standardized ISO 5211 top flange template.

Q: What are the key benefits of choosing these valves for industrial applications?

A: Specifying FlowBiz double flanged butterfly valves provides plant operators with dependable Class VI sealing, smooth low-torque operation, exceptional resistance to chemical corrosion, and straightforward installation. Their compact, lightweight design makes them a highly reliable and cost-effective solution for large-bore process pipelines.

Are you updating a municipal water filtration system that requires a 600mm double-flanged butterfly valve with a pneumatic actuator, or configuring an industrial chemical line in Gandhinagar that demands a custom stainless steel disc and PTFE seat layout? Contact our technical engineering and sales division in Gandhinagar, India today to secure a factory-direct quote and quick pricing, or ask a single relevant question regarding your specific system pressure boundaries or chemical media parameters below to guide the conversation forward.
