Industrial Conical Strainers: Technical Design, Pre-Commissioning Protection, and Specifications

In industrial fluid dynamics and plant construction, the initial start-up phase poses the highest risk of catastrophic equipment failure. During system commissioning, loose foreign matter within the pipelinesuch as welding slag, pipe scale, thread tape, and installation debrisgets swept downstream by high-velocity fluid paths. If left unfiltered, these solids will score pump impellers, choke control valve orifices, destroy seal seats, and knock digital flow meters out of calibration.

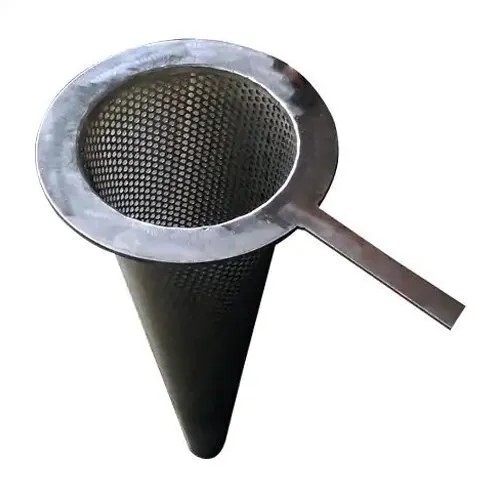

A Conical Strainer (frequently designated as a Temporary Strainer or Witchs Hat Strainer) serves as a highly cost-effective, heavy-duty mechanical filter specifically designed to provide vital protection during these critical start-up and commissioning windows.

 Pipeline Flow Stream \ / \ MESH / Inlet \ / Outlet \/ Conical Tip

FlowBiz Export Private Limited is a premier engineering brand and a trusted Conical Strainer Manufacturer in Pune, Maharashtra, India, with extensive global logistics networks managed from our key supply hubs, including Gandhidham, Gujarat. We design and fabricate high-integrity temporary strainers engineered to capture high concentrations of suspended solids before they can impact your primary mechanical assets.

Technical Specifications & Code Compliance

FlowBiz conical strainers are fabricated in strict compliance with global pressure-piping standards, ensuring structural integrity and precise boundary fitment between existing pipeline flanges.

Key Engineering Parameters

Technical Advantages of FlowBiz Conical Strainers

1. Cost-Effective Pre-Commissioning Safeguards

Unlike permanent, bulky basket or duplex strainers that require dedicated external pressure housings and complex plumbing manifolds, a conical strainer features a sleek, compact profile. It is designed to be clamped directly between two standard pipeline flanges. This minimal design delivers high-efficiency particle separation at a fraction of the capital expenditure, making it the perfect choice for temporary commissioning phases.

2. High-Strength Stainless Steel 304 Construction

When high-velocity fluid paths carry large pieces of welding slag or pipe scale, the internal filter element faces extreme mechanical impact and structural stress. Fabricating our strainers from premium SS 304 Stainless Steel guarantees exceptional yield strength, uniform thermal expansion, and excellent resistance to chemical oxidation. This material maintains deep structural stability across high thermal thresholds up to 200C without risk of collapse.

3. Optimized Hydraulic Geometry & Fluid Flow

The conical shape provides an extended surface area relative to the pipe cross-section, allowing captured particles to naturally accumulate toward the tip of the cone. This distribution leaves the wider base section open for fluid passage, minimizing initial pressure drops (Pressure Difference) and preventing fluid restriction or pump starvation across water and chemical lines.

Strategic Industrial Application Scope

Our ASME-designed temporary strainers are widely deployed across critical sectors to guarantee contaminant-free plant start-ups:

• Refineries & Petrochemical Plants: Safeguarding high-volume hydrocarbon lines, blending systems, and crude transfer lines during initial fluid loops.

• Chemical Processing Facilities: Trapping chemical solids and debris prior to routing fluids through sensitive analytical instruments and chemical reactions.

• Power Generation & Nuclear Stations: Protecting boiler feed loops, auxiliary steam networks, and cooling tower lines from installation scale.

• Municipal Water Supply & Treatment Utilities: Positioned upstream of high-pressure pumps and desalination systems to trap sand, gravel, and installation debris.

Frequently Asked Questions (FAQ)

Q: What is the mechanical difference between installing a conical strainer with the tip pointing upstream versus downstream?

A: The installation orientation dictates the strainer's capacity and flow dynamics:

• Tip Pointing Downstream (Flow Into Base): This is the standard, most frequent orientation. Debris collects at the outer perimeter and base of the cone, which maximizes the available flow path down the center and allows the element to handle higher structural loads.

• Tip Pointing Upstream (Flow Into Tip): This orientation collects debris right at the inner tip of the cone. It is occasionally selected when space constraints require easier debris containment during clean-out removal.

Q: Can these temporary conical strainers be left in the pipeline permanently?

A: No. Conical strainers are specifically designed as temporary or start-up devices. Because they lack a dedicated clean-out drain port or dual-chamber isolation system, the pipeline must be fully shut down and unbolted to clean them out. Once the initial start-up phase is complete, the fluid lines have cleared, and differential pressure levels stabilize, these temporary units should be removed and replaced with standard inline permanent filters like Y-type or basket strainers.

Q: What is the step-by-step engineering process to order a customized strainer from your Gandhidham facility?

A: The procurement workflow is structured for precise system integration:

1. Parameter Submission: Sourcing teams provide their specific piping specsincluding nominal pipe size (from 2 to 24 inches+), flange class rating (ASME/ANSI), target media properties, maximum temperature limits, and target micron or mesh requirements.

2. Design Modeling: Our technical team calculates the open-area ratio and fabricates the precise length and perforation profile to match your flow velocity constraints.

3. Quality Check & Dispatch: The custom unit is precision-machined, quality-inspected, and shipped via our integrated domestic and global export logistics channels.
