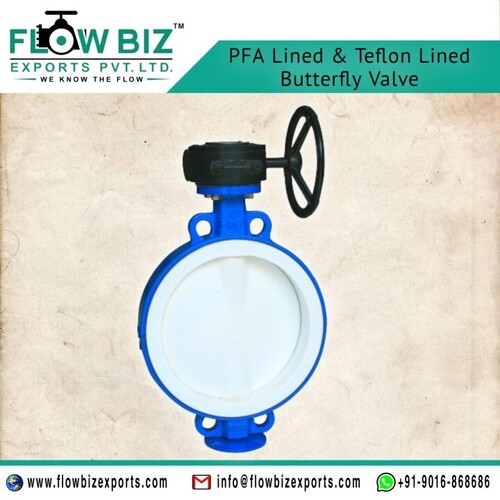

Chemical Grade PTFE Lined Butterfly Valve Manufacturer Vapi Gujarat

FlowBiz PTFE Lined Butterfly Valves (Model IVTFE): Ultra-Pure Corrosion Isolation

Process pipelines in chemical processing, petrochemical refining, and high-purity utility grids frequently transport highly aggressive media that can rapidly destroy standard cast iron or stainless steel valves. FlowBiz Exports Pvt. Ltd. solves this severe engineering challenge with our premium PTFE Lined Butterfly Valve (Model IVTFE).

Manufactured at our high-tech production facility in Vapi, Gujarat, the Model IVTFE is explicitly engineered to eliminate the high cost of specialized exotic alloy valves. By combining the mechanical structural strength of a heavy-duty carbon steel body with the absolute chemical inertness of a thick, non-porous Polytetrafluoroethylene (PTFE / Teflon) liner, this valve provides an impenetrable barrier against volatile acids, caustics, and aggressive process fluids.

Technical Specifications & Engineering Profile

The FlowBiz Model IVTFE is built, tested, and certified to meet the highest industrial safety benchmarks, ensuring long-term field reliability under continuous operational stress.

Critical Features & Structural Attributes

1. 100% Wetted Surface Isolation

The premium PTFE seat liner is meticulously molded to cover the entire internal wetted surface of the carbon steel body. Crucially, this lining extends outward over the face of the flange contact areas. This ensures that when the valve is bolted into a pipeline, the moving process fluid only comes into contact with the chemically inert PTFE barrier, completely eliminating the possibility of localized body corrosion or galvanic reactions.

2. Resilient Elastomeric Backup Profile

To guarantee a bubble-tight closure every time the valve is cycled, a circularly molded backup elastomer is encapsulated directly behind the PTFE seat liner. This resilient backing functions as a continuous spring, applying uniform, omni-directional contact pressure across the entire edge of the disc. This unique geometry maintains a leak-proof barrier without distorting the critical shaft bore shape.

3. Advanced Triple Shaft Sealing System

Fugitive emissions and secondary stem leaks are a major environmental and safety hazard in chemical facilities. The Model IVTFE eliminates this risk with a unique triple sealing system built into the shaft journal. This layered packing matrix isolates the stem from atmospheric pressure paths, ensuring absolute environmental compliance and protecting operators from toxic line leaks.

4. Self-Lubricating Low-Torque Bearings

The drive and non-drive end shafts rotate within heavy-duty, self-lubricating bearings constructed from PTFE-coated stainless steel. This design minimizes mechanical bearing friction torque, resulting in exceptionally smooth quarter-turn operation and significantly reducing the size and cost of any automated pneumatic or electric actuators added to the line.

Key Performance Advantages for Process Industries

• Total Corrosion Immunity: High-grade PTFE resists virtually all industrial chemicals, solvents, caustics, and acids, extending the valve's service life up to five times compared to unlined metal alternatives.

• Streamlined Flanged Installation: The integral flanged design provides a highly rigid mechanical joint that prevents pipeline deflection under weight and allows technicians to unbolt and service the valve with minimal facility downtime.

• Pure Media Integrity: The non-stick, non-porous nature of the PTFE liner prevents media scaling, crystallization, or particulate adhesion, maintaining steady line velocities and ensuring high process purity.

Frequently Asked Questions (FAQs)

Q: Why is a PTFE-lined butterfly valve preferred over an expensive solid exotic alloy valve (like Hastelloy or Monel)?

A: Solid exotic alloy valves provide excellent chemical resistance but are phenomenally expensive, involve long manufacturing lead times, and are highly susceptible to market metal price fluctuations. A PTFE-lined valve delivers the exact same absolute chemical immunity at a fraction of the cost. The rugged carbon steel exterior shell handles all the physical pipeline pressure and mechanical stresses, while the cost-effective PTFE liner isolates the chemistry completely.

Q: What is the recommended step-by-step installation process for a flanged PTFE-lined valve?

A: 1. Spread the adjacent pipeline flanges wide enough to slide the valve in without scraping or pinching the delicate PTFE liner faces that extend over the flange contact areas.

2. Align the valve center perfectly with the pipeline centerline using the bolt holes as a guide.

3. Note: Because the PTFE liner acts as its own high-quality integral gasket, separate flange gaskets are generally not required.

4. Pass high-tensile fasteners through the holes and tighten the nuts progressively in an alternating star-pattern sequence using a calibrated torque wrench to ensure uniform compression and a leak-proof mechanical joint.

Q: How does the bi-directional sealing feature of the Model IVTFE improve facility safety?

A: In complex chemical networks, reverse flow transients, back-pressure surges, or vacuum loops can cause fluid to travel backward through a line. Standard uni-directional valves can fail or bypass completely when pressurized from the wrong side. The FlowBiz bi-directional sealing architecture utilizes identical seating geometries on both faces, allowing the valve to hold back rated pressures perfectly from either direction, giving plant managers maximum flexibility and security.

Q: When should an engineer specify a medium-pressure PN10 rated valve over higher ratings?

A: A PN10 rated valve is ideal for standard, mid-tier industrial process lines where working pressures do not exceed 10 bar (145 PSI) . Specifying a PN10 valve for these moderate flow networks avoids the unnecessary cost and heavy weight of over-engineered high-pressure classes while still providing a highly secure, reliable, and perfectly optimized safety margin for your system.

Q: What explicit quality verification controls are implemented at the Vapi manufacturing plant?

A: Operating as a trusted manufacturer, exporter, supplier, and trader, FlowBiz enforces strict quality benchmarks. Every single Model IVTFE valve undergoes a mandatory spark-test at high voltage to verify that the PTFE lining is completely free of microscopic pinholes or fractures. This is followed by rigorous hydrostatic shell pressure testing and pneumatic seat-leakage diagnostics to guarantee zero bypass before shipping with full material traceability certificates.
