BS 1873 / ASME B16.34 High-Performance Angle Globe Valves FlowBiz Mumbai

Welcome to FlowBiz Export Private Limited, a globally recognized engineering authority for severe-service flow regulation, high-differential pressure management, and dynamic fluid throttling systems. Operating high-capacity casting foundries, automated multi-axis CNC machining bays, and certified hydrostatic testing cells in Mumbai, Maharashtra, we stand as India's premier manufacturer, supplier, and global B2B exporter of industrial Angle Type Globe Valves.

Our high-performance rotary and linear assets are engineered explicitly to provide tight, repeatable isolation and precision throttling under unstable fluid conditions. FlowBiz Brand Angle Globe Valves are used in fluctuating flow conditions and in applications having periods of pulsating flow as we can handle the slugging effect seamlessly. From our centralized manufacturing and commercial export hub in Mumbai, we support critical processing networks across India's key industrial hubsincluding Thane, Pune, Nashik, Nagpur, Kolhapur, Aurangabad, Satara, Sangli, Ahmedabad, Rajkot, Surat, Vapi, Valsad, Gandhidham, Indore, Bhopal, Chennai, and Coimbatorebacked by direct access to major maritime corridors for rapid international project export.

Technical Specifications & Compliance Parameters

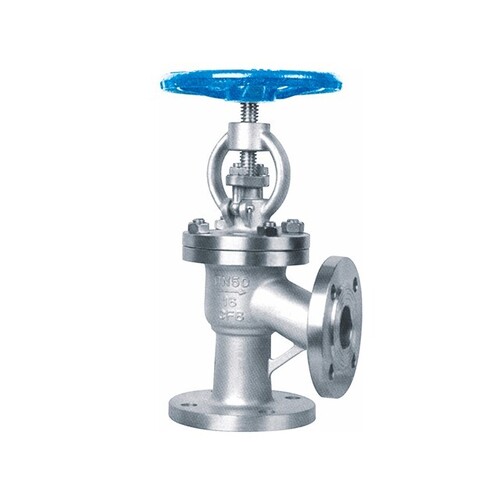

FlowBiz Angle Globe Valves feature an engineered linear-motion configuration where the wetted fluid stream turns the flow direction by 90 degrees without using an elbow and one extra pipe weld. The precision-ground disc opens against the flow, using the line's natural pressure to stabilize the internal trim elements against severe cavitation and mechanical vibration.

Core Engineering Features & Design Advantages

1. Dual-Purpose Flow Deflection and Weld Elimination

The defining structural benefit of our angle configuration is its multi-functional footprint. By integrating a 90-degree bend directly into the valve body casing, it turns the flow direction by 90 degrees without using a separate pipe elbow or requiring an extra pipe weld. This eliminates a permanent welding joint, lowers overall project installation costs, reduces potential structural leak paths, and minimizes piping fluid friction.

2. Specialized Slugging and Pulsation Mitigation

Standard straight-through globe valves can experience severe internal chatter and premature plug failure when exposed to rapid pressure changes or slugs of liquid. Our heavy-duty angle valves are specifically engineered to handle the slugging effect. Supported by a robust Outside Screw and Yoke (O/S & Y) structure and a rising stem, the internal wetted trim elements manage fluctuating flow conditions and periods of pulsating flow with absolute stability.

3. Premium Materials and Finish

To deliver advanced manufacturing expertise for demanding industrial environments, our valves are constructed from high-strength cast iron and finished with premium chrome plating. This industrial metallurgy provides excellent resistance to corrosion and superior longevity. The professional silver color finish resists external rust, prevents scale buildup, and facilitates effortless maintenance routines.

4. High-Precision Manual Throttling and Secure Fit

Equipped with a precision-machined flange type connection, our valves ensure straightforward, secure installation and reliable sealing across industrial piping systems. The manual operator utilizes fine-pitch stem threads to give operators precise, hands-on control over flow and system pressure. The heavy-duty bolted bonnet allows for quick field access to the internal S.S. Trim during scheduled maintenance turnarounds.

Strategic Severe-Service Applications

FlowBiz high-performance angle type globe valves are specified across primary high-velocity pipelines:

• Fluctuating Process Headers: Regulating pipelines experiencing irregular system volumes, flashing water states, and rapid pressure drop variations.

• Pulsating Discharge Lines: Managing the immediate downstream flow from reciprocating pumps, compressors, and high-velocity blending manifolds.

• Boiler Blowdown Operations: Safe control of rapid boiler blowdown systems, steam tracer loops, and facility heating lines.

• Water, Oil, and Gas Distribution: Precision throttling and multi-phase fluid control within heavy manufacturing plants and refinery utilities.

Frequently Asked Questions (FAQ)

Q: Why does the valve disc open against the flow instead of with the flow?

A: Designing the disc to open against the fluid current is essential for safe, high-precision throttling. As the operator turns the handwheel to crack the valve open, the oncoming fluid pressure pushes directly against the bottom face of the disc. This force keeps the stem under constant tension, preventing the plug from fluttering or chattering against the seat ring during periods of pulsating flow, ensuring highly predictable fluid regulation.

Q: When should a process engineer choose an angle globe valve over a standard globe valve?

A: A standard straight-through globe valve forces the process fluid through an S-shaped path inside the body, which creates high fluid friction and a substantial drop in line pressure. An Angle Type Globe Valve provides a much cleaner, single 90-degree turn. This makes it ideal for piping headers where space is limited and an elbow is already required. Choosing this valve allows you to regulate flow and pressure in medium-pressure applications while changing the direction of flow with minimal pressure drop.

Q: What routine inspection and maintenance is recommended for these valves?

A: Our angle type globe valves are operated manually, allowing precise control over flow with minimal maintenance needs. For optimal performance, field crews should periodically check the tightness of the bolted bonnet and ensure the integrity of the flanged joints. Regular inspection and cleaning of the chrome-plated surface helps maintain the valve's professional appearance and performance, while periodically greasing the rising stem threads keeps manual operation smooth.

Q: How can project procurement managers request customized or tailored globe valves?

A: Sourcing custom solutions is straightforward through our advanced engineering office. Clients can contact us with their specific requirements regarding size, pressure ratings, or application needs. Our technical team will guide you through material compatibility, connection specifications, and delivery timelines to ensure you receive the optimal valve solution. As a trusted manufacturer, supplier, exporter, and trader based in Mumbai, we handle everything from design submittals to final hydrostatic testing.

Q: What is the correct field installation sequence for a flanged angle globe valve?

A: Proper physical alignment is critical to ensure a long-lasting, leak-proof seal:

• Clean the pipeline companion flanges thoroughly to remove scale, sediment, and welding slag.

• Align the valve body inlets and outlets carefully with the vertical and horizontal pipe segments, avoiding excessive structural force.

• Place an application-rated gasket evenly between the flanged faces.

• Insert standard industrial bolts and tighten the nuts progressively using a torque wrench in an alternating cross-star pattern to distribute clamping forces equally.

Are you optimizing a medium-pressure water distribution manifold or upgrading a process line with pulsating flow conditions? Contact our Mumbai sales and engineering office today to guide your project forward, or ask a specific question regarding your piping layout below.
