Welcome to FlowBiz Export Private Limited, a leading global manufacturing authority for space-optimized fluid isolation, high-volume flow modulation, and resilient utility pipeline infrastructure. Operating advanced casting complexes, multi-axis CNC machining bays, and certified hydrostatic testing labs in Ahmedabad, Gujarat, we stand as India's premier manufacturer, supplier, and global B2B exporter of industrial Double Flange and Wafer Type Butterfly Valves.

Our butterfly valves are made with state-of-the-art engineering for multiple ON/OFF operations in a more extensive pipeline & full flow downstream. Engineered to replace bulky, maintenance-heavy gate valves, this series maximizes flow efficiency while minimizing pipeline footprint. From our centralized manufacturing and distribution headquarters in Ahmedabad, we seamlessly support critical processing networks across India's key industrial corridorsincluding Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur, Indore, Dewas, Bhopal, Chennai, Coimbatore, and Salembacked by immediate access to international shipping networks for fast-tracked global project export.

Technical Specifications & Compliance Parameters

FlowBiz Butterfly Valves feature a quarter-turn rotary disc design. When operated via a manual hand lever or an enclosed gear unit, the disc rotates 90 degrees around a central shaft to allow or completely block fluid flow. The perfect line-size body structure ensures maximum flow capacity with the lowest pressure drop across the valve.

Core Engineering Features & Design Advantages

1. Integrally Molded Liner with Self-Gasketing Flange Faces

To guarantee outstanding dimensional stability & assured seat tightness, the resilient seat liner on the body is integrally molded directly into the internal casing bore. This prevents the rubber liner from bunching, stretching, or tearing away during high-velocity flow. Crucially, FlowBiz engineers have dismissed the need for separate flange gaskets by extending the seat liner to the contact faces, ensuring perfect sealing and simplifying field assembly.

2. Narrow Land Disc Design for Low-Torque Operation

Standard butterfly discs have broad sealing margins that generate heavy friction against the rubber liner, requiring massive mechanical force to turn. FlowBiz engineers have designed a narrow land disc design that ensures perfect sealing with minor operating torque requirements. This profiles less friction, reduces wear on the elastomeric seat, and allows operators to cycle large-bore valves manually with minimal effort.

3. Structural Strength and Protection Against Surges

The outer pressure casing is poured from superior FG 260 grade cast iron body casting to ensure additional strength against external piping loads and environmental stress. Internally, the high-grade stainless steel or ductile cast iron made valve disc protects against possible water hammer or pressure surges, preventing internal distortion or structural component failure during sudden process shutdowns.

4. Fully Universal Body with Locked Positioning

To ensure easy matching between companion flanges of all popular global standards (including ANSI, BS, DIN, and JIS), our team developed a fully universal body design. For manual control, the valves support two manual operating options (gear or handle). The notched disc & band lever ensures the valves lock in 8 intermediate classes for precise throttling, and the hand lever can be securely locked in place through an external padlock.

Body Selection Profiles: Wafer vs. Double Flange

To suit your explicit pipeline specification, our manufacturing facility produces two distinct structural designs:

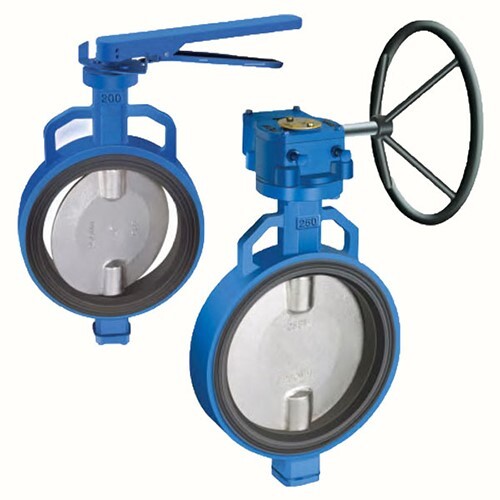

• Wafer Type Butterfly Valves: Features a compact, round, wafer-style profile. The valve is typically installed between two flanges in a piping system, utilizing long through-bolts to clamp the valve body. This design is highly valued for being space-efficient and lightweight, making it an effective choice for quick shut-off or regulation within tight process layouts.

• Double Flange Butterfly Valves: Built with dedicated, full-size structural flanges cast on both ends of the body. This heavy-duty architecture allows the valve to be securely bolted directly to individual pipeline ends, making it the preferred option for larger pipelines (12" to 48") or applications requiring full downstream isolation and dead-end service.

Strategic Multi-Phase Applications

FlowBiz high-performance rotary butterfly valves are specified across primary process tracks:

• Water Treatment & Distribution Systems: Sectional isolation of municipal raw water lines, reverse osmosis (RO) pre-treatment headers, and waste sludge pipelines.

• Chemical Plant Utility Networks: Regulating and isolating factory cooling tower pipelines, low-pressure non-corrosive chemical streams, and water treatment loops.

• HVAC & Industrial Utility Loops: Handling air, gas, and cooling water circuits under medium pressure and temperature conditions.

• Pneumatic Air Handling Headers: Main distribution isolation for large-bore compressed air networks, blower loops, and ventilation air trunks.

Frequently Asked Questions (FAQ)

Q: When is it most beneficial to specify a wafer type butterfly valve over a double flange valve?

A: A Wafer Type Butterfly Valve is most effective in applications requiring space-efficient, quick shut-off or regulation of flow under medium pressure and temperature. Because it features a narrow face-to-face width and slides cleanly between pipeline flanges, it takes up a fraction of the space and weighs significantly less than a double flanged asset. This makes it perfect for compact utility rooms, skid-mounted chemical assemblies, and setups where weight conservation is a priority.

Q: How does the integrally extended seat liner eliminate the need for standard flange gaskets?

A: In standard rotary valves, field crews must place separate fiber or rubber gaskets on both sides of the valve to prevent external leaks at the flange joint. This can introduce alignment challenges during installation. FlowBiz engineers eliminated this issue by wrapping the heavy-duty molded seat liner completely around the valve's raised contact faces. When bolted tightly between flanges, this extended liner compresses directly against the pipe ends, establishing an absolute, leak-resistant fit without separate gaskets.

Q: What routine field maintenance is required to keep manual butterfly valves operating smoothly?

A: These valves are built for high durability and require minimal regular maintenance. The high-grade stainless steel and cast iron elements naturally resist common corrosion. For optimal performance, field crews should periodically check that the flange bolts remain uniformly tight. Regularly operating the hand lever or checking the grease inside the enclosed worm gear unit keeps the internal disc turning smoothly, minimizing operational downtime.

Q: What is the correct field installation sequence for an Ahmedabad-manufactured wafer butterfly valve?

A: Proper mechanical alignment is essential to avoid pinching or cutting the elastomeric seat:

• Open the pipeline flanges wide enough to slide the round, wafer-style body easily between them without dragging against the rubber faces.

• Rotate the disc into a slightly partially open position so its edges stay inside the body width during alignment.

• Slide the valve between the companion flanges, insert standard industrial hardware bolts, and align the casing with the pipe axis.

• Tighten the bolts progressively using a torque wrench in an alternating cross-star pattern to ensure equal compression, creating a secure, leak-proof mechanical joint.

Q: How can project procurement managers and engineers coordinate factory-direct quotes?

A: Sourcing can be initiated by contacting our corporate sales division and engineering headquarters in Ahmedabad, India. Our technical application staff will guide you through a comprehensive selection processassessing your precise line sizing requirements (from 3" up to large-bore 48" systems), preferred body style (Wafer vs. Double Flange), manual operating drive (Gear vs. Handle), and fluid propertiesto deliver a certified product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a large-bore industrial cooling water main or upgrading a municipal water treatment distribution header? Contact our Ahmedabad sales and engineering office today to guide your project forward, or ask a specific question regarding your pipeline alignment below.
