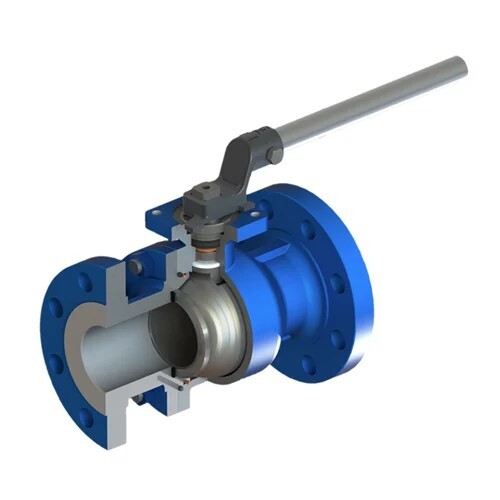

Severe-Service Metal-Seated Flanged Ball Valves | FlowBiz Valves

FlowBiz Valves is a premier, engineering-driven manufacturer, supplier, and global exporter of high-performance Metal-Seated Flanged Ball Valves in India. Operating from our state-of-the-art heavy engineering and logistics hub in Gandhidham, Gujarat, we design and build these critical-service components to withstand the absolute extremes of modern process piping.

Traditional soft-seated valves quickly decompose or suffer catastrophic face-tearing when exposed to abrasive media, chemical crystallization, or high temperature thresholds. The FlowBiz severe-service metal-seated flanged ball valve series addresses this vulnerability, featuring hard-faced metallic ball and seat boundaries precision-mated to ensure absolute pressure isolation. This series delivers long-term plant safety, protects upstream pumps, and stabilizes processing line productivity across refineries, petrochemical operations, and power generation facilities.

Technical Specifications & Compliance Standards

Our severe-service flanged ball valves are precision-machined from fully certified raw alloys and checked against strict international quality protocols:

Strategic Design & Mechanical Trim Features

1. High-Precision Ball & Seat Hard-Facing

The core sealing mechanism utilizes an advanced metal-to-metal interface. The spherical ball and mating seat rings are hard-faced with premium Stellite, Tungsten Carbide, or Alloy 6, then micro-machined and lapped together as a unique matched pair. This matching process achieves a superior surface finish down to 5 RMS, ensuring minimal friction and lower breakout torque. To guarantee a tight seal under lower pressure thresholds where process energy cannot assist the seating force, a unique spring-loading mechanism is integrated behind the seat rings to maintain continuous, uniform sealing tension.

2. Dual Stem Bearing Thrust Management

To eliminate uneven seat wear and component binding during heavy flow surges, our valves feature a dual stem bearing design. By distributing external piping strain and hydraulic forces uniformly across the top works, this layout dramatically reduces side thrust effects on the stem. This ensures a uniform turning torque profile and incredibly smooth rotation, extending the operational life span of the internal packing components.

3. Comprehensive Fire-Safe Security

Every flanged valve is assembled using high-grade graphite packing and backup seals, thoroughly fire-safe tested to maintain external boundary density during unexpected facility fires. To eliminate fugitive emissions around the stem gland, the valve features low-emission packing housed within a double-packed stuffing box design, safely containing volatile organic compounds (VOCs) and aggressive process media.

Stem Design & Operator Safety Features

• Full Guided Stem: Rigidly anchored and supported by a specialized bimetallic gland bearing to maintain exact internal alignment during intense cycling.

• Extended Stem Layout: Elevates the actuation top works safely away from hot pipe boundaries, allowing sufficient clearance for high-temperature insulation jackets while protecting automated actuator packages from heat damage.

• Blowout-Proof Stem: Engineered with a bottom-entry mechanical shoulder that prevents the stem from ejecting from the casing under sudden high-pressure spikes, maximizing operator field safety.

• Antistatic Design: Built-in grounding springs maintain continuous electrical continuity between the ball, stem, and valve body, safely dissipating friction-induced static charges to eliminate fire risks in explosive gas zones.

Actuation, Mounting, & Facility Modernization

FlowBiz flanged ball valves are engineered to support flexible system modernization and seamless plant automation. Featuring a standardized ISO top-mounting pad, the valves eliminate the need for expensive custom brackets or complex couplings. This allows the valves to adapt easily to any process control layout:

• Manual Levers & Gearboxes: Ergonomic hand levers provide simple control for smaller line sizes, while heavy-duty mechanical gearboxes provide smooth, low-torque operation for larger calibers.

• Pneumatic & Electric Actuators: Directly interfaces with automated pneumatic cylinders or multi-turn electric actuators for responsive remote control from a centralized SCADA or PLC process loop.

Frequently Asked Questions (FAQs)

Q: When is it necessary to select a metal-seated ball valve over a soft-seated variant?

A: You should specify a metal-seated flanged ball valve whenever your process involves extreme temperatures (ranging up to 425C), high-velocity abrasive particulates (such as sand, scaling, or catalyst powders), or thick, viscous slurries. Under these conditions, traditional soft seats (like PTFE or rubber) would quickly decompose, cold-flow, or tear open. Hard-faced metal-to-metal boundaries provide the wear and abrasion resistance needed to preserve structural sealing integrity over years of continuous operation.

Q: How does a Full Bore body design prevent pipeline clogging when routing slurries?

A: In a Full Bore flanged ball valve, the internal diameter of the flow port through the ball matches the inside diameter of the connected pipeline exactly. When the valve is turned to the fully open position, it creates a perfectly straight, unrestricted path with zero internal pockets or step-downs. This profile eliminates fluid turbulence, keeps pressure drops (P) near zero, and allows heavy solids, pulp, and thick slurries to pass through without settling or clogging the valve body.

Q: What makes the maintenance lifecycle of FlowBiz two-piece and three-piece designs cost-effective?

A: Our modular off-center two-piece and three-piece body layouts are designed for straightforward maintenance access. If internal inspections or component updates are needed, the split body structure allows technicians to access internal seals and trims quickly. The durability of the hard-faced seats minimizes the required service frequency, dropping long-term maintenance overhead and keeping your production lines online with minimal downtime.

Q: Why choose FlowBiz as your trusted flanged ball valve manufacturing partner in Gandhidham?

A: Operating from Gandhidham, FlowBiz Valves bridges world-class industrial metallurgy with strict global testing compliance to API 598 and EN 12266-1 parameters. By using advanced spiral-wound Graphoil gaskets, lapping balls and seats to a micro-precise 5 RMS finish, and proof-testing 100% of our production lines for zero leakage, we eliminate field reliability concerns. Our capacity to deliver customized flanged equipment from 1/2" to 24" inches makes us a highly dependable supply chain partner for critical process installations worldwide.
