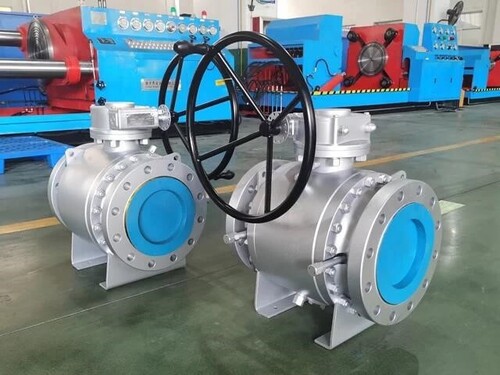

High-Performance Trunnion-Mounted Ball Valves | FlowBiz Valves

FlowBiz Valves is a premier, engineering-driven manufacturer, supplier, exporter, and trader of high-quality Trunnion-Mounted Ball Valves in India. Operating from our state-of-the-art manufacturing infrastructure in Ahmedabad and Vadodara, and backed by a comprehensive logistical hub in Mumbai, we deliver elite flow-isolation solutions designed specifically for large-diameter pipelines and critical high-pressure systems.

Technical Specifications & Global Compliance Matrix

Our trunnion-mounted ball valves are precision-engineered to maintain absolute mechanical integrity and tight safety sealing under extreme industrial conditions:

Internal Fluid Mechanics: How the Trunnion Structure Works

In a standard floating ball valve, the ball is suspended by the stem and pressed by line pressure into the downstream seat to form a seal. While efficient for smaller lines, this setup causes immense physical friction and extremely high operating torque in large-diameter or high-pressure pipelines.

The FlowBiz Trunnion Mounted Ball Valve completely re-engineers this mechanical layout:

1. Fixed Mechanical Anchoring

The internal ball is rigidly constrained by heavy-duty top and bottom trunnion bearings. The ball is only permitted to rotate a precise quarter-turn (90 degree) on its vertical axis. It cannot shift or float downstream.

2. Absorbing Hydraulic Thrust

The immense hydraulic load and thrust generated by high-pressure process fluids are absorbed entirely by the internal trunnion bearings and system controls rather than the valve seats. This completely prevents post-fatigue deformation and minimizes bearing pressure.

3. Pressure-Assisted Upstream Sealing

Because the ball is stationary, the seats are designed to be dynamic. The incoming pipeline pressure forces the floating, spring-energized upstream seat assembly firmly against the anchored ball. This creates an immediate, highly reliable seal that automatically self-compensates for system pressure variations and micro-wear.

Major Advantages of the FlowBiz Trunnion Series

Dramatic Reduction in Actuation Costs

Because the mechanical bearings absorb the fluid's physical thrust, the frictional variance between the ball and seats remains exceptionally low. Even when operating at full-rated working pressure, the valve's breakout torque stays low. This is highly advantageous for automated setups; it permits the integration of significantly smaller, more compact pneumatic or electric actuators, lowering the overall cost of your automated valve package.

Robust Stainless Steel Construction

Every valve trim is crafted from premium-grade stainless steel to ensure uncompromised chemical compatibility and complete immunity to internal corrosion. This robust build guarantees long-lasting performance, minimal maintenance overhead, and excellent wear resistance in harsh processing environments.

Color-Coded Facility Integration

To streamline field inspections, protect against outdoor atmospheric oxidation, and allow plant operators to instantly identify pipelines by media type, FlowBiz provides high-durability industrial body coatings. Clients can select from standard black, silver, and blue finishes, or request bespoke aesthetic color-coding for bulk industrial projects.

Frequently Asked Questions (FAQs)

Q: When is it mandatory to choose a trunnion-mounted ball valve over a floating type?

A: You should specify a trunnion-mounted valve whenever your facility is handling large-diameter pipelines (typically 6 inches and above) or high-pressure classes (such as ASME Class 300, 600, and above). In these critical operations, a floating valve would generate excessive torque that could crush soft seats or bind the stem, whereas the trunnion design ensures stable, safe, low-torque operation.

Q: How do these trunnion valves handle intense thermal cycling conditions?

A: Operating smoothly across a broad thermal envelope from -40F to 392F requires precision engineering clearances. FlowBiz utilizes spring-energized seats that dynamically maintain uniform contact with the micro-finished ball. As the valve body undergoes thermal expansion or contraction during severe temperature fluctuations, the internal components adjust symmetrically, preventing the valve mechanism from seizing, locking, or weeping.

Q: What industries rely most heavily on FlowBiz trunnion-mounted valves?

A: Our trunnion series is widely utilized across critical infrastructure sectors including chemical processing plants, oil and gas transmission pipelines, petrochemical refining manifolds, large-scale water treatment facilities, and power generation units where zero-leakage isolation and absolute process reliability are paramount.

Q: Why is FlowBiz considered a top-tier trunnion ball valve manufacturer in Vadodara and Ahmedabad?

A: FlowBiz Valves blends sophisticated regional manufacturing capabilities across Gujarat with strict global trade compliance. Every single trunnion unit undergoes rigorous hydrostatic, pneumatic, and structural shell testing before leaving our Vadodara manufacturing facility. Our capacity to engineer bespoke metallurgies, manage automated actuation integration, and support global export networks makes us a highly dependable supply chain partner for severe-service infrastructure projects worldwide.
