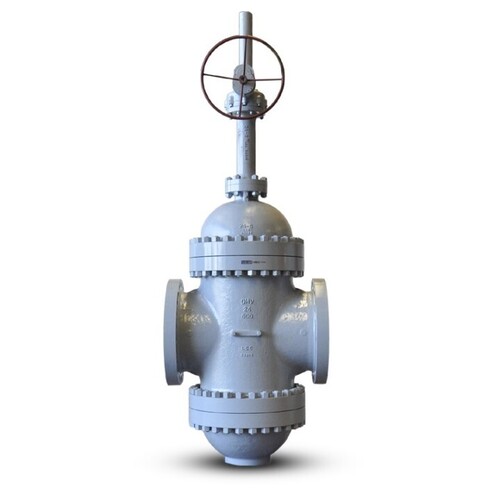

API 6D Through-Conduit Gate Valves FlowBiz Vapi

Welcome to FlowBiz Export Private Limited, a certified manufacturing authority for high-pressure midstream transport, oil and gas custody transfer, and severe-duty pipeline isolation. Operating advanced heavy-machining foundries and hydrostatic testing bays in Vapi, Gujarat, we are Indias leading manufacturer, supplier, and global exporter of high-integrity API 6D Through-Conduit Gate Valves (Slab Gate and Expanding Gate designs).

Our high-performance pipeline valves are engineered to manage dense hydrocarbons, sour crude oil, and high-pressure natural gas lines. We seamlessly satisfy project infrastructure specifications across Indias primary energy and industrial hubsincluding Vapi, Ahmedabad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Pune, Thane, and Chennaialongside fast-tracked international maritime freight lines for rapid global project export.

Technical Specifications & Pipeline Compliance Matrix

FlowBiz Through-Conduit Gate Valves are designed with a full-bore, full-port configuration that exactly matches the internal diameter of the adjacent pipeline. This design permits smooth, unobstructed flow with zero parasitic head loss, making these valves the definitive selection for pipelines undergoing routine scraper pigging operations.

Core Engineering Features & Design Advantages

1. Pressure-Energized Floating Seat Sealing Mechanics

Standard wedge gate valves rely strictly on high manual stem torque to wedge the gate into the seat pocket. The FlowBiz Through-Conduit Valve utilizes line pressure to achieve its seal:

• Low-Pressure Sealing: High-resilience internal alloy coil springs sit behind the seat rings, physically pushing them against the flat slab gate face to ensure a tight seal at low differential pressures.

• High-Pressure Sealing: When a high differential pressure surge occurs, line pressure forces the floating upstream seat ring hard against the gate, creating an absolute, leak-free chemical isolation boundary.

2. Full-Bore Conduit Geometry for Pipeline Pigging

The internal gate contains a round, full-bore flow port hole. When the valve is stroked to the fully open position, this conduit aligns perfectly with the valve body bore and the adjacent pipe profile. This layout provides a continuous, unobstructed fluid track with zero flow resistance or pressure drop. It allows plant engineers to launch mechanical pipeline scraper pigs through the valve to clean deposits without damaging internal elements.

3. NACE MR0175 Sour Gas Component Compliance

Pipelines handling raw hydrocarbons frequently carry high concentrations of hydrogen sulfide (HS) and water, creating a highly corrosive "sour" environment that can cause rapid sulfide stress cracking in standard steels. FlowBiz manufactures these valves utilizing certified NACE MR0175 / ISO 15156 (2015) compliant alloy studs, nuts, and internal trims. This ensures the valve resists hydrogen-induced embrittlement under continuous severe service.

4. Certified API 6FA Fire-Safe Emergency Protection

For petrochemical installations and oil terminals, fire survival is a critical safety baseline. Our through-conduit lines feature an API 6FA certified fire-safe trim. Under standard processing conditions, primary soft seat inserts (PTFE or Devlon) maintain bubble-tight sealing. If an explosion or fire incinerates the polymer seals, the floating seats move forward under spring pressure to achieve a secondary metal-to-metal backup seal against the gate face, preventing downstream fuel feeding.

Strategic Midstream & High-Pressure Applications

FlowBiz API 6D through-conduit gate valves are specified across heavy-duty energy utility headers:

• Crude Oil & Natural Gas Mainlines: Main transmission trunk lines requiring full-bore pigging capabilities and zero-leakage pipeline isolation.

• Petrochemical Refineries & Terminals: Custody transfer manifolds, bulk loading docks, tank farm boundaries, and high-pressure process manifolds.

• Sour Gas Processing Utilities: Safe containment and routing of volatile hydrocarbons rich in hydrogen sulfide (HS

• ).

• High-Pressure Industrial Water Lines: Large-diameter water transport lines, high-head water treatment feeds, and pump discharge isolation circuits.

Frequently Asked Questions (FAQ)

Q: Why are high-performance through-conduit gate valves restricted from small utility sizes below 2 inches?

A: Through-conduit gate valves are heavy-duty midstream assets engineered specifically for long-distance pipelines that require full-bore passage for scraper cleaning pigs. Small utility piping systems (below 2 inches) are never cleaned via mechanical scraper pigs and do not experience midstream pressure profiles. For pipelines below 2 in (50 mm), compact FlowBiz Forged Steel API 602 Gate Valves or Ball Valves are used to manage utility fluids efficiently at a lower footprint.

Q: What is the primary difference between a Slab Gate and an Expanding Gate through-conduit valve?

A: A Slab Gate features a single-piece flat metal gate with a conduit hole. It relies on internal seat springs and pipeline fluid pressure to push the floating seats against the gate face, providing a highly effective seal that becomes tighter as line pressure increases. An Expanding Gate features a two-piece wedge-shaped gate assembly. When it reaches the end of its travel, the two halves are mechanically forced outward against the seats. This creates a tight mechanical seal at both high and zero line pressures, independent of fluid force.

Q: Why is NACE MR0175 compliance mandatory for valves utilized in midstream oil and gas pipelines?

A: Raw oil and natural gas drawn from geological formations often contain high levels of moisture and dissolved hydrogen sulfide (HS). When standard high-tensile steel bolts and internal trims are exposed to sour gas, hydrogen atoms diffuse into the metal matrix, making the steel brittle and causing it to crack suddenly under pressure (Sulfide Stress Cracking). Sourcing NACE MR0175 compliant materials ensures that all structural studs, nuts, and pressure-retaining components utilize metallurgy that resists hydrogen embrittlement.

Q: What routine field maintenance is required to preserve the seal of an API 6D through-conduit gate valve?

A: Because these valves handle thick crude oils, gas condensates, and fine particulates, our designs incorporate external sealant injection fittings on the bonnet and seats. During planned maintenance cycles, field technicians can use an industrial grease gun to inject high-viscosity synthetic lubricant directly into the seat faces. This flushes away trapped pipeline particulates, lubricates the sliding gate face, lowers manual handwheel operating torque, and renews the internal seal without stopping pipeline flow.

Q: How can project procurement managers and engineers in Vapi coordinate a bulk factory quote?

A: Sourcing can be initiated by contacting our dedicated corporate sales division in Vapi, India. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise pipeline nominal sizes (224 in), required pressure classes (Class 150#, 300#, or 600#), chemical properties of the hydrocarbon media, temperature limits, and preferred actuation typeto deliver a certified product submittal sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you designing a midstream crude oil transmission header or upgrading a high-pressure natural gas custody manifold? Contact our Vapi sales and engineering office today to receive complete technical data sheets, certified structural layouts, and an itemized commercial proposal.
