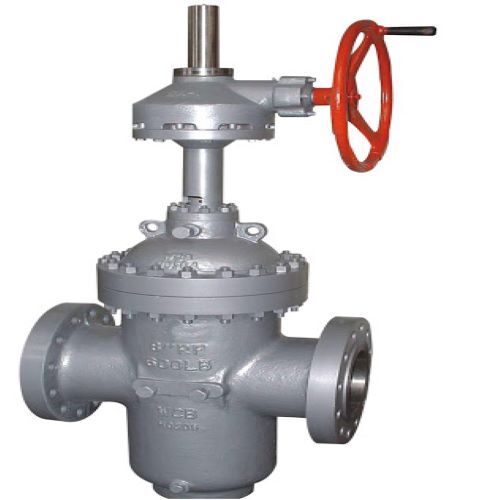

API 6D Through Conduit Slab Gate Valves FlowBiz

Welcome to FlowBiz, a premier manufacturing authority for high-pressure midstream pipeline isolation and cross-country transport technology. We are a leading manufacturer, supplier, and global exporter of high-performance Through Conduit Slab Gate Valves and Expanding Gate Valves designed strictly to API 6D specifications.

With precision heavy-manufacturing centers in Rajkot and robust supply networks in Mumbai, we seamlessly serve the oil, gas, and petrochemical grids of Indiaincluding Ahmedabad, Vapi, Surat, Mumbai, Pune, Thane, Chennai, and Coimbatorealongside dedicated freight logistics for international global export markets.

Technical Specifications & Compliance Architecture

FlowBiz Slab Gate Valves utilize a solid, single-cartridge parallel gate configuration. When the valve is driven into the fully open position, a pre-machined conduit bore aligns perfectly with the pipe ID, creating a continuous, full-bore fluid path. This design eliminates internal cavitation pockets and reduces pressure drop to near zero.

Core Engineering Features & Design Advantages

1. Dual-Layer Soft + Metal Double Sealing

Our floating seat structure incorporates an advanced dual-barrier sealing matrix. Initial low-pressure sealing is established using high-flexibility O-rings and embedded fluoroplastic (PTFE/Devlon) soft inlays. As pipeline pressure scales up, the floating seat shifts dynamically against the parallel gate face, initializing a secondary, secondary metal-to-metal fire-safe seal.

2. Integrated Gate Wiping & Self-Cleaning Geometry

During open-to-close operational sweeps, the compressed fluoroplastic seat inserts maintain constant, uniform tension against the parallel faces of the slab gate. This profile effectively acts as a wiper blade, clearing away accumulated line dirt, pipe scale, and debris before it can damage the primary sealing boundaries.

3. Emergency Sealant Injection System

For severe-duty pipelines where abrasive solids or unrefined crudes might micro-scratch the seating interfaces over decades of service, FlowBiz equips each valve body with an external chemical grease injection nipple. This allows field technicians to inject specialized high-viscosity sealant directly into the seat pocket to restore an absolute bubble-tight shut-off inline.

4. Media Isolation & Spatial Longevity

Whether the slab gate is in the fully open or completely closed position, the internal sealing borders are continuously isolated from the high-velocity fluid stream. This prevents raw process media from entering the interior bonnet cavity, eliminating turbulent erosive wear and dramatically extending the operational lifespan of the valve asset.

Strategic Petrochemical & Midstream Infrastructure

FlowBiz API 6D slab gate valves are highly demanded by pipeline operators and petrochemical project engineers across critical process grids:

• Cross-Country Hydrocarbon Transmission: Mainline isolation stations for crude oil, natural gas, and refined petroleum products.

• Petrochemical Refineries: Managing high-temperature gas pipelines, storage manifold headers, and crude intake lines.

• Product Tank Farms & Terminals: Bulk fluid distribution networks, emergency isolation barriers, and loading dock grids.

• Scraper & Pigging Launcher Utilities: Full-bore conduit mapping allows standard pipeline pigs and scrapers to pass straight through the valve without damage.

Frequently Asked Questions (FAQ)

Q: What is the primary difference between a Conduit Slab Gate Valve and a standard Wedge Gate Valve?

A: A standard wedge gate valve features an open cavity at the bottom of the body where solids and sand can collect, preventing the wedge from seating properly. Furthermore, a wedge gate exposes the internal bonnet to fluid velocity when open. A Through Conduit Slab Gate Valve features a completely parallel gate with a continuous bore. It eliminates bottom cavities, seals off the bonnet environment from the fluid stream, and allows regular pipeline cleaning pigs to pass without restriction.

Q: Why is compliance with the API 6D design standard critical for midstream pipeline applications?

A: API 6D is the definitive international standard governing pipeline valves for the petroleum and natural gas industries. This standard enforces incredibly strict wall thicknesses, structural blow-out proof stems, pressure-relieving seat mechanics, and rigorous non-destructive evaluation (NDE) testing boundaries. Utilizing certified API 6D assets ensures complete regulatory safety compliance during hazardous media transmission.

Q: Can your Through Conduit Slab Gate Valves be actuated using external power systems?

A: Yes. While our standard configurations feature manual gear operators to facilitate smooth multi-turn handling, the mounting pad is fully compliant with ISO 5211 parameters. This allows our Rajkot production facility to seamlessly integrate high-torque Pneumatic Actuators for high-speed automated isolation, or Electric Actuators linked directly to remote SCADA and plant DCS networks.

Q: What is the difference between a Slab Gate design and an Expanding Gate design?

A: A Slab gate consists of a single solid steel parallel plate that relies on upstream pipeline pressure to push the gate against the downstream seat to achieve isolation. An Expanding gate consists of two interconnected wedge-shaped pieces that mechanically expand outward against both the upstream and downstream seats simultaneously when fully closed, providing an absolute mechanical seal independent of line pressure.

Q: How can international procurement managers and project contractors coordinate sourcing from Rajkot?

A: Sourcing can be initiated by contacting our dedicated corporate sales office in Rajkot, India. As an established exporter, manufacturer, and supply partner, FlowBiz provides comprehensive submittal packages including certified dimensional blueprints, pipeline flow coefficient ($C_v$) analytics, and complete material test reports (MTRs), backed by competitive factory-direct B2B pricing.

Are you engineering a cross-country crude manifold or looking to replace a high-maintenance isolation valve on a gas header line? Contact our sales office today to receive complete technical data sheets, certified structural drawings, and a personalized commercial proposal.
