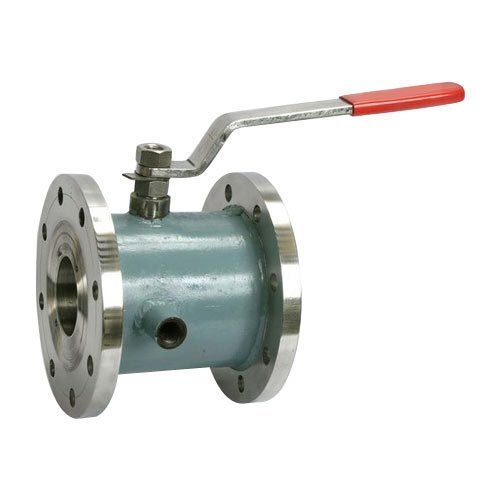

FlowBiz High-Performance Jacketed Ball Valves Thermal Management & Viscous Fluid Control

Welcome to the engineering authority for thermal process control, heavy polymer stabilization, and severe-service fluid routing. Operating advanced multi-axis CNC horizontal boring mills, precision ball-lapping centers, and certified thermal-boundary validation corridors, FlowBiz Exports specializes in manufacturing premium-grade Jacketed Ball Valves.

Engineered specifically for demanding chemical services, our jacketed ball valves are designed for absolute control of highly viscous fluids, molten media, or temperature-sensitive compounds that tend to solidify, crystallize, or degrade if line temperatures drop. Featuring an integrated outer heating chamber that circulates steam, hot oil, or alternative heat-transfer fluids directly around the pressure boundary, these units eliminate cold spots, providing smooth operation across global process networks.

Technical Specifications & Compliance Parameters

Every FlowBiz production lot is precision-machined and subjected to 100% rigorous high-pressure hydrostatic testing, pneumatic seat torque validation, and thermal chamber pressure integrity checks under major international design codes.

Kinematics & Thermal Envelope Jacketing Mechanics

The primary advantage of the FlowBiz jacketed ball valve is its outer welded thermal enclosure, which keeps fluid flowing freely through the valve core:

                [ FULL-COVERAGE HOT OIL / STEAM ENCLOSURE ]

                       [ LOW-TORQUE QUARTER-TURN STEM ]
                                      ||
                                      \/
                 +--------------------||--------------------+
                 |  [ MEDIA INLET ]   ||   [ MEDIA OUTLET ] |
              +--+--------------------||--------------------+--+
              |  | ====== JACKET HEATING CHAMBER ======     |  |
  =========>  |  |   +------------+    +------------+       |  |  =========>
  Viscous Media|  |   | Cavity-Fill|    | Cavity-Fill|       |  | Fluid Maintained
  Inflow Stream|====>| Seat Ring  | (O) | Seat Ring  |======>|  | at Temp Target
  (Hot Liquid) |  |   |            |    |            |       |  | (No Cold Spots)
              |  | ====== JACKET HEATING CHAMBER ======     |  |
              +--+------------------------------------------+--+
                 |    [ FLANGED PIPELINE CONNECTIONS ]      |
                 +------------------------------------------+

• Full-Body Thermal Enclosure: Unlike bolt-on heating blankets or simple tracing lines that leave exposed gaps, our jacket features a heavy-walled fabrication welded directly onto the stainless steel valve casting. The heating medium enters from the bottom port, circulates around the entire valve body, and exits from the upper port, ensuring a uniform temperature profile.

• Cavity-Fill Sealing Matrix: Standard ball valves have small internal pockets around the ball where trapped fluids can cool down, crystallize, and seize the mechanism. To prevent this, FlowBiz uses optional cavity-filled seats that completely occupy these void spaces. This ensures that media flows through without collecting or hardening inside the valve body.

• Frictionless Quarter-Turn Rotation: The ball is polished to a plain finish, allowing it to slide smoothly within the compressed seats. This reduces operating torque requirements and limits physical wear, enabling fast ON/OFF isolation using compact manual levers or automated systems.

Core Engineering Features & System Benefits

• High-Grade Stainless Steel Build: Crafted from premium-grade stainless steel, our valves offer exceptional resistance to chemical corrosion, thermal cycling, and high-pressure fluctuations, while requiring minimal maintenance.

• Versatile Media Compatibility: Designed to provide dependable, long-term operation across systems handling water, air, volatile liquids, or industrial gases.

• Secure Flanged Connections: The rugged flanged end rings simplify installation, maintain a leak-proof seal under intense pipe tension, and allow for easy inline cleaning and inspection.

• Plain External Finish: The smooth outer profile reduces material buildup, simplifies wash-downs, and enhances long-term resistance to harsh atmospheric corrosion.

Strategic Industrial Application Sectors

Our Jacketed Ball Valves provide critical temperature containment across high-density processing lines:

• Chemical Processing Plants: Transporting volatile resins, molten sulfur, organic acids, and specialty chemical mixtures.

• Pharmaceutical & Biotech Skids: Handling heavy intermediate syrups, viscous personal care gels, and cosmetic bases.

• Food Processing & Dairy Infrastructure: Regulating liquid chocolates, heavy fats, molasses, syrups, and confectionery blends.

• Petrochemical & Refining Manifolds: Managing bitumen loops, asphalt binders, heavy crude fractions, and paraffin streams.

Frequently Asked Questions (FAQ)

Q: How is a jacketed ball valve used in fluid transfer applications?

A: A jacketed ball valve controls the flow of media while regulating its temperature. By circulating steam or hot oil through the welded outer jacket, the valve keeps the fluid inside at its target temperature. This prevents substances like liquid polymers or molten sulfur from cooling down and solidifying inside the valve body.

Q: What materials are these ball valves made of, and why is stainless steel chosen?

A: The valves are constructed from high-grade stainless steel alloys such as SS304, SS316, or low-carbon SS316L (CF8/CF8M). Stainless steel is selected because it preserves product purity and provides superior protection against chemical corrosion, thermal cracking, and pressure fluctuations over a long service life.

Q: When should you opt for a flanged end jacketed ball valve?

A: Flanged end configurations are recommended for heavy-duty process lines subjected to high pressures, intense thermal expansion, or continuous vibrations. They are also ideal when lines require regular disassembly for sterilization, preventative maintenance, or process safety inspections.

Q: Where are these jacketed ball valves typically installed?

A: These valves are installed inside fluid headers within chemical plants, food processing skids, polymer manufacturing units, and cosmetic facilities. They are ideal for any pipeline carrying fluids that must remain within a narrow temperature range to prevent clotting or degradation.

Q: What is the process of installing a flanged jacketed ball valve?

A: Installation requires aligning the flanged ends of the valve body with the pipeline flanges, placing a compatible high-temperature gasket between the faces, and torqueing the high-tensile studs in an alternating cross-pattern. This ensures uniform seal compression and a leak-proof joint.

Q: How does a plain finish benefit these stainless steel jacketed ball valves?

A: A plain, smooth exterior surface eliminates deep crevices where dust, chemical splatters, or wash-down fluids can pool. This simplifies routine cleaning, keeps the workplace hygienic, and prevents external crevice corrosion in harsh processing environments.

Q: What are the main benefits of sourcing from a jacketed ball valve manufacturer in Kheda, India?

A: Sourcing directly from our Kheda manufacturing complex gives your enterprise access to high-precision engineering, competitive factory pricing, and an efficient domestic and export logistics network. We provide customized jacket configurations and prompt delivery schedules tailored to your project timeline.

Are you updating a chemical processing skid that requires an ASME Class 150 flanged jacketed ball valve with a cavity-filled PTFE seat, or configuring a bitumen pipeline that demands robust steam-jacketed temperature control? Contact our technical sales and engineering division today to secure a factory-direct quote, or ask a single relevant question regarding your specific heating medium or process fluid viscosity below to guide the conversation forward.
