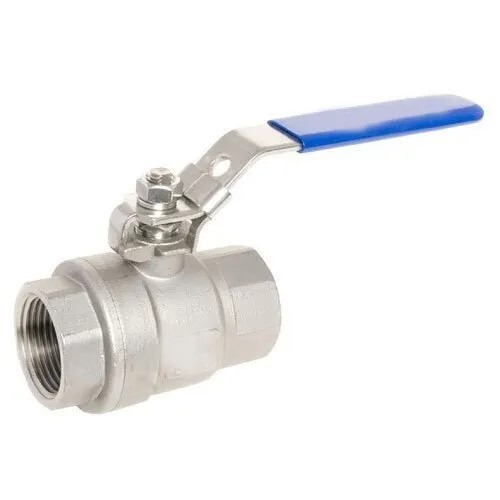

FlowBiz WOG 3000 High-Pressure Ball Valve Series Low-Torque Process Isolation

Welcome to the engineering authority for high-pressure fluid isolation, hydraulic line regulation, and severe-service utility management. Operating advanced multi-axis CNC turn-mill centers, precision spherical-lapping lines, and certified high-pressure test corridors, FlowBiz specializes in manufacturing the WOG 3000 High-Pressure Ball Valve Series.

The FlowBiz WOG 3000 Ball Valve series is engineered specifically to manage demanding, high-pressure industrial applications while maintaining a low operating torque profile. WOG stands for Water, Oil, and Gas, indicating the heavy-duty nature of these units. Standard models feature live-loaded stem seals for dynamic wear compensation and fully replaceable seats and seals to maximize asset lifespans. To withstand harsh industrial environments, carbon steel variants are finished with high-durability chemical nickel plating, while premium stainless steel configurations provide ultimate resistance against aggressive chemicals and atmospheric oxidation.

Technical Specifications & Compliance Parameters

Every production lot under the WOG 3000 banner undergoes 100% high-pressure hydrostatic shell testing and pneumatic bubble-tight seat validation to ensure absolute performance compliance.

Kinematics & High-Pressure Live-Loaded Sealing Mechanics

The engineering reliability of the WOG 3000 series is built on maintaining seal integrity during frequent thermal shifts and high-pressure cycling:

          OPEN POSITION (STRAIGHT-THROUGH CLEARWAY)          CLOSED POSITION (LIVE-LOADED STEM COMPRESSION)

                       [ QUARTER-TURN LEVER HANDLE ]                  [ BELLEVILLE LIVE-LOAD SPRINGS ]
                                    ||                                             ||
                                    \/                                             \/
                        +------------------------+                     +------------------------+
                        |  Live-Loaded packing   |                     | Continuous Packing Force|
                     +--+------------------------+--+                 +--+------------------------+--+
                     |  [ REPLACEABLE SEATS ]     |                 |  [ PRESSURE TRANSFERRED ]  |
                     |       /---|  |---\        |                 |     /================\   |
 ===================>|      | High-Polish|       |================>|====>| Polished Solid |<====| 3000 PSI WOG
 High-Pressure Fluid |      | Spherical  |       | Full Flow Path  |     | Sphere turned  |     | Held Bubble-Tight
 Media Inflow Stream |      | Core       |       | No Pocket Drop  |     | 90 Degrees     |     | (Zero Seat Leaks)
                     |       \---|  |---/        |                 |     \================/   |
                     +----------------------------+                 +-----+----------------+-----+
                        | Heavy High-Pressure Wall|                    | Heavy High-Pressure Wall|
                        +------------------------+                     +------------------------+

• Live-Loaded Stem Seal Technology: In traditional high-pressure valves, regular cycling can cause the packing material to settle, creating tiny paths for leaks. FlowBiz resolves this issue by incorporating a series of Belleville spring-washers above the stem packing. These springs continuously expand and contract, applying a constant downward force on the seals. This setup automatically self-adjusts for wear and handles thermal expansion well, preventing fugitive emissions without requiring manual tightening.

• Replaceable High-Pressure Seats and Seals: High-pressure lines often carry tiny grit particles that can slowly scratch soft parts over time. The WOG 3000 series features an easily serviceable internal layout, allowing maintenance crews to swap out worn seats and seals quickly during routine shutdowns. This simple update restores the valve to full factory sealing specs without requiring a complete unit replacement.

• Low-Torque Spherical Core: The solid stainless steel ball core is precision-ground and polished to a mirror-like finish. This smooth surface reduces mechanical friction against the high-density seats, keeping operating torque low and allowing for smooth manual control or the use of compact automated actuators.

Core Engineering Features & Plant Benefits

• High-Grade Stainless Steel Build: Offers exceptional resistance to abrasive wear, structural erosion, and chemical corrosion, providing a long service life in harsh environments.

• Secure Flanged End Layout: The rugged flanged connection provides excellent mechanical stability under high pressure and intense pipe tension, making installation straightforward and leak-free.

• Wide Temperature Resilience: Operates reliably across a broad thermal range from freezing -40F up to high-heat 392F, making it well-suited for both cold process fluids and heated lines.

• Reduced Downtime and Savings: The rugged build combined with self-adjusting live-loaded seals significantly reduces maintenance needs, resulting in substantial long-term operational savings.

Strategic Industrial Application Sectors

Our WOG 3000 High-Pressure Ball Valves provide critical fluid containment across key process networks:

• Chemical Process Industries: Regulating high-pressure chemical dosing loops, volatile acid lines, and processing manifolds.

• Water Treatment & Desalination Infrastructure: Managing high-capacity high-pressure pump discharge headers and filtration backwash lines.

• Gas Distribution & Plant Air Utilities: Isolating high-pressure nitrogen lines, compressed air manifolds, and utility gas pipelines.

• Refining, Lubricants, & Fuel Lines: Controlling high-pressure oil transmission loops, hydraulic lines, and fuel storage transfer systems.

Frequently Asked Questions (FAQ)

Q: How are WOG ball valves from Ahmedabad suited for temperature extremes?

A: These valves are constructed from high-tensile stainless steel castings paired with specialized, thermally stable seals that retain their shape and flexibility well. This design allows the valve to operate reliably across a broad temperature range from -40F to 392F without seizing or leaking.

Q: What materials are used in the construction of these ball valves?

A: The primary pressure-retaining bodies are cast from premium-grade stainless steel (such as SS316 or CF8M) to ensure excellent structural strength and corrosion resistance. For specific applications, high-tensile carbon steel bodies finished with defensive chemical nickel plating are also available upon request.

Q: When should I use a flanged end ball valve over other connection types?

A: Flanged end valves are highly recommended when you need a robust mechanical joint that can handle high pressure, thermal expansion, and line vibrations well. They bolt directly onto standard piping systems, making installation straightforward and allowing for easy removal when lines require regular cleaning or inspection.

Q: Where can these valves be applied?

A: The WOG 3000 series is highly versatile and widely used across industrial water supply networks, chemical processing manifolds, plant air distribution grids, fuel transmission pipelines, and high-pressure oil handling systems.

Q: What is the typical process for installing these valves?

A: For flanged models, installation involves aligning the valve faces with the pipeline flanges, inserting a high-pressure gasket between them, and torqueing the high-tensile bolts in an alternating cross-pattern. For threaded or socket-weld variants, the connections are screwed or welded directly into the pipeline according to standard code procedures.

Q: How does using stainless steel benefit my operation?

A: Stainless steel provides outstanding resistance to rust, chemical corrosion, and abrasive wear. This durability helps eliminate unexpected line leaks, cuts down on maintenance shutdowns, and ensures safe, clean operation over a long service life.

Q: What makes your valve manufacturing process reliable?

A: Our production process relies on precision CNC machining centers, rigorous dimensional controls, and strict quality checks at every stage. Before leaving our Ahmedabad facility, every single valve is subjected to hydrostatic and pneumatic pressure testing to guarantee full compliance with global standards.

Are you updating a high-pressure chemical manifold that requires an NPT threaded WOG 3000 ball valve with live-loaded stem seals, or retrofitting a high-pressure water treatment line in Ahmedabad that demands a robust flanged configuration? Contact our technical sales and engineering division in Ahmedabad today to secure a factory-direct quote, or ask a single relevant question regarding your specific line pressure or fluid medium parameters below to guide the conversation forward.
