BS EN 13397 Stainless Steel Diaphragm Valves FlowBiz Gandhinagar

Welcome to FlowBiz Export Private Limited, a distinguished engineering authority for high-purity fluid containment, absolute leakage prevention, and zero-contamination process lines. Operating advanced high-alloy casting foundries, automated precision machining cells, and specialized elastomeric vulcanization labs in Gandhinagar, Gujarat, we are India's premier manufacturer, supplier, and global B2B exporter of industrial Stainless Steel (SS) Diaphragm Valves.

Our linear-motion containment systems are engineered to isolate and regulate fluid paths without clogging or mechanism binding. From our manufacturing headquarters in Gandhinagar, we satisfy strict technical specifications across India's primary industrial networksincluding Gandhinagar, Rajkot, Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Pune, Thane, and Chennaibacked by fast-tracked logistics for rapid international project export.

Technical Specifications & Pipeline Parameters

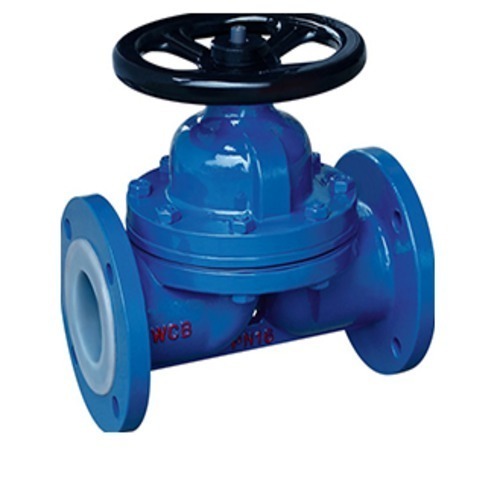

FlowBiz SS Diaphragm Valves feature a high-integrity weir-type configuration. The valve utilizes a flexible, resilient elastomeric membrane driven down by a mechanical compressor to seal tightly against a smooth, raised internal body weir. This design completely isolates the upper mechanical bonnet assembly, stem, and drive threads from the process media, eliminating the need for a traditional stem packing gland and guaranteeing zero fugitive emissions.

Core Engineering Features & Design Advantages

1. High-Aesthetic, Precision-Made Stainless Steel Construction

Our valve bodies are investment-cast from high-grade CF8 (304) and CF8M (316) Stainless Steel, providing excellent structural mass and native resistance to internal chemical attack or localized pitting. The smooth surface finish minimizes fluid drag, ensures the valve is easily washable, and eliminates the subsurface porosity or sand inclusions common in lower-grade utility castings.

2. Cavity-Free, Low-Maintenance Linear Flow Track

Standard quarter-turn ball or gate valves feature internal body pockets and deep mechanical recesses. When handling raw water, mineral slurries, or industrial effluents, solid particulates settle into these dead zones, where they solidify, wear down the seats, or jam the valve. Our weir-type diaphragm valves provide a smooth, aerodynamic, cavity-free internal path. Solids pass cleanly through the valve body, minimizing maintenance requirements and reducing operational downtime.

3. Versatile Media Separation Architecture

The flexible elastomeric diaphragm functions as both a dynamic inline seat seal and a static atmospheric gasket. Because the perimeter of the diaphragm is securely clamped between the upper bonnet casting and the lower body shell, the fluid is completely contained within the lower channel. This allows the valve to efficiently manage diverse media arraysincluding water, aggressive chemicals, oils, and gaseswithout risking fluid contamination or mechanism binding.

4. Functional Black-Blue Visual Coding Matrix

To assist plant operators working in complex multi-line processing grids, our valves feature an explicit black and blue protective finish matrix. This visual layout serves as an effective identifier for field technicians, helping them quickly differentiate process streams, organize maintenance tracking, and drastically reduce the risk of cross-contamination or errors during routine plant changeovers.

Strategic Cross-Industry Applications

FlowBiz premium stainless steel manual diaphragm valves offer a highly reliable, cost-effective fluid management solution across a wide spectrum of processing utilities:

• Water Treatment & Desalination Infrastructure: Demineralized water headers, chemical dosing lines, reverse osmosis filtration grids, and deionized water networks.

• Chemical Processing & Synthesis Plants: Safe containment, throttling, and isolation of organic acids, caustic solutions, volatile solvents, and process effluents.

• Pharmaceutical & Biotech Manufacturing: Purified water distribution loops, active ingredient feed systems, and bulk chemical washdown facilities requiring easily washable hardware.

• Food, Beverage, & Brewery Utilities: Regulating bulk clean-water routing systems, sanitization headers, liquid syrups, and general plant utility water lines.

• Power Plant & Utility Infrastructure: Managing auxiliary cooling water lines, air-evacuation manifolds, and automated chemical treatment skids.

Frequently Asked Questions (FAQ)

Q: Why do diaphragm valves completely eliminate the need for traditional stem packing glands?

A: Standard linear valves require compressed graphite or PTFE packing rings wrapped around the moving stem to prevent pressurized fluids from leaking out into the atmosphere. Over time, these packing rings wear out and require adjustment. A Diaphragm Valve uses a flexible diaphragm sheet that is physically clamped between the metallic body and bonnet. This creates an absolute, permanent physical barrier that isolates the process fluid below the bonnet, eliminating the packing gland entirely and guaranteeing zero fugitive stem emissions.

Q: When should a plant engineer select a manual handwheel diaphragm valve over an automated version?

A: Manual diaphragm valves are the definitive choice when precise flow regulation or fluid isolation is needed but high-frequency, automated sequencing is unnecessary. Selecting manual handwheels completely eliminates the need for expensive instrumentation wiring, compressed air lines, and positioner calibration. This provides a highly cost-effective, low-maintenance asset that gives operators direct, dependable control over the valve stroke during routine process adjustments or emergency plant maintenance.

Q: How does the weir-type design minimize strain on the flexible diaphragm membrane?

A: In a weir-type configuration, the valve incorporates a raised internal body weir that reduces the total stroke distance required to close the valve. This limited travel path reduces mechanical stress, stretching, and compression forces on the flexible elastomeric or PTFE diaphragm membrane during operation, which directly increases the service life of the seal compared to straight-through diaphragm models.

Q: What is the process for customizing the internal diaphragm elastomeric compound for specific chemical media?

A: During the initial project consultation, our engineering team evaluates your explicit system parametersincluding fluid composition, chemical concentrations, continuous operating pressures, and maximum thermal limits. Based on these data points, we match your stainless steel valves with the ideal elastomeric backing sheet, such as virgin EPDM for standard water utilities, Neoprene for oils, or a PTFE-faced Viton shield for highly volatile chemical or corrosive acid streams.

Q: How can project engineering and procurement teams in Gandhinagar coordinate a bulk factory quote?

A: Sourcing can be initiated by contacting our corporate sales and engineering division in Gandhinagar, India. Our team will guide you through a comprehensive technical consultationassessing your precise nominal pipeline diameters (1/2"\ to 12"), preferred stainless steel grades (CF8 vs. CF8M), target pressure constraints, fluid properties, and installation configurationsto deliver a certified technical submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing an industrial water filtration matrix or upgrading an aggressive chemical process utility loop? Contact our Gandhinagar sales and engineering office today to receive complete technical data sheets, certified dimensional blueprints, and an itemized commercial proposal.
