Industrial Simplex Basket Strainers: High-Capacity Fluid Filtration and Asset Protection

In large-scale fluid transmission lines, protecting downstream infrastructure from particulate contamination is a critical operational priority. Debris such as pipeline scale, rust, sediment, and foreign solids can cause severe abrasive wear on pump impellers, clog heat exchanger tubes, and score the sealing faces of delicate control valves. When process lines demand continuous flow handling combined with a high volume of particulate accumulation, standard Y-type strainers quickly reach their volumetric limits, requiring frequent shutdowns for cleaning.

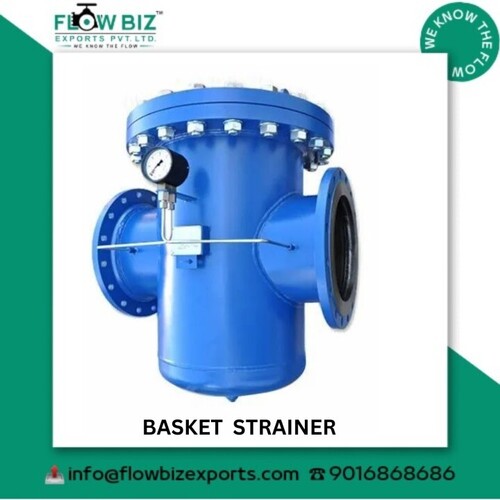

An industrial Simplex Basket Strainer provides a heavy-duty, high-capacity filtration solution. Featuring an upright, chambered design that is substantially larger than a standard Y-strainer, its basket-like shape can store large amounts of debris. This increased volumetric size provides a proper platform for an effective filtration area, ensuring excellent dirt-holding capacity, minimal initial pressure drops (P), and significantly longer operational cycles between cleaning intervals.

                      Inline Simplex Configuration



                         Removable Top Cover

                                    (Top Access Maintenance)
         [ Fluid In ]    [ Fluid Out ]
                                 (Downstream Assets)
                            Perforated
                            Mesh Basket     Traps Suspended Solids




                          [ Threaded Drain ]

FlowBiz Exports is a premier global fluid-handling brand and a leading Basket Strainer Manufacturer in Vadodara, Gujarat, India. We specialize in precision engineering cast and fabricated simplex basket strainers, custom-tailored to satisfy the stringent filtration demands of heavy process industries worldwide.

Technical Specifications & Manufacturing Scope

FlowBiz simplex basket strainers are engineered and manufactured to international pressure containment standards, offering flexible drop-in integration into both new and existing piping layouts.

Core Engineering Matrix

Structural Construction Dynamics

• Cast Basket Strainers: Cast from robust, heavy-wall ductile iron, carbon steel, or stainless steel alloys. These provide a uniform structural thickness that excels under continuous operational pressures.

• Fabricated Basket Strainers: Custom-welded from high-yield plate steel and pipe housings, enabling tailored face-to-face dimensions and large-bore configurations beyond standard casting limits.

Critical Engineering Features & Process Benefits

1. Enormous Dirt-Holding Capacity & Optimized Flow

The primary mechanical advantage of the simplex basket strainer is its ratio of open screen area to the pipe's internal cross-sectional area. Because the fluid flows inside-out through a large, suspended SS 304 basket, particles are trapped inside the basket floor while clean fluid exits seamlessly through the perimeter. This layout minimizes line turbulence and prevents premature blinding of the screen mesh.

2. High-Grade SS 304 Metallurgy and Thermal Resilience

Aggressive water utilities, chemical processing streams, and cooling tower headers can subject internal strainers to localized pitting and stress corrosion. Fabricating our internal baskets and discs from high-grade SS 304 stainless steel ensures superior durability and rust resistance. The internal structure maintains its shape under high pressure gradients and temperature cycles up to 200C, preventing basket deformation or fluid bypass.

3. Simplified, Manual Top-Access Maintenance

Unlike Y-strainers, which store debris in a downward-angled leg that spills fluid during cleaning, a simplex basket strainer features an upright chamber with a top-access cover. Maintenance routines are completely manual and straightforward. Field operators simply isolate the line, open the top cover, lift the basket vertically out of the housing by its handle, empty the captured debris, and slide it back into place, keeping plant downtime to a minimum.

Strategic System & Industrial Applications

Our heavy-duty, customizable basket strainers are strategically installed inline at critical protection junctions across multiple industries:

• Water Treatment & Desalination Facilities: Positioned on raw water intake lines and pre-filtration headers to protect multi-stage pumps and reverse osmosis components.

• Chemical Processing & Petrochemical Units: Filtering out unwanted polymer clusters, crystals, and particulate contaminants from process fluids.

• Refineries & Petroleum Pipelines: Installed upstream of custody-transfer flowmeters and blending manifolds to intercept line scale.

• Power Stations & Nuclear Facilities: Regulating high-volume cooling water loops, condenser lines, and auxiliary utility circuits safely.

Frequently Asked Questions (FAQ)

Q: Why should an engineer choose a basket strainer over a Y-strainer for a liquid process loop?

A: Y-strainers feature a compact, angular design that is ideal for steam lines or gas headers where particle concentration is exceptionally low. However, in liquid streams carrying high amounts of sediment or debris, a Y-strainer's small screen area will blind over rapidly, causing a steep pressure drop (P). A Basket Strainer provides a much larger internal volume, enabling it to hold a high mass of dirt without choking the pipeline flow, making it the preferred choice for liquid utilities.

Q: What is the exact engineering workflow for ordering a customized port layout from Vadodara?

A: Our Vadodara-based manufacturing facility coordinates closely with your project specifications:

1. Technical Submission: Sourcing teams provide their core parameters, including nominal line sizes, expected fluid viscosity, required mesh micron rating, and target flange standards.

2. Custom Engineering: Our design division custom-tailors the inner chamber dimensions, basket perforation sizes, and specific port orientations to match your facility's footprint.

3. Quality Verification: The completed strainer housing undergoes rigorous hydrostatic shell testing to confirm casting density and seal integrity before being dispatched at direct factory prices.

Q: How can operators easily determine when the basket strainer needs to be cleaned?

A: The most accurate method for tracking basket clogging is to monitor the system's differential pressure (P) by installing pressure gauges immediately upstream and downstream of the strainer housing. A clean basket operates with a negligible pressure variance. As debris fills the mesh basket, the fluid path becomes restricted, causing the upstream pressure to rise. A noticeable drop in the downstream flow rate or a specific differential pressure threshold indicates that it is time to manually pull and clean the basket element.

Q: What role does the threaded bottom drain play during routine maintenance?

A: The threaded drain port located at the base of the strainer casting allows for safe chamber servicing. Prior to unbolting the top cover for basket removal, operators can open the drain valve to flush out stagnant media, sludge, and heavy settled particulates from the bottom of the housing. This mechanism depressurizes and empties the chamber, preventing chemical spills or hot water exposure when the main top cover is removed.
