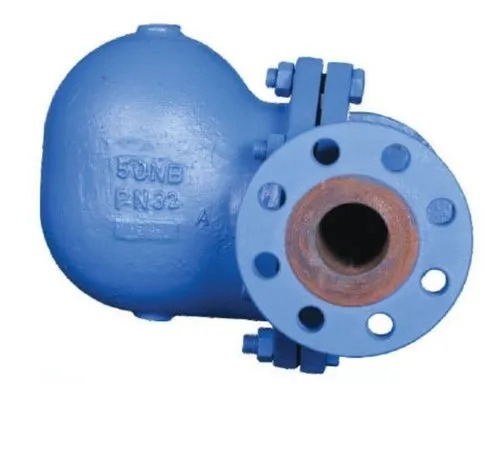

Spirax Marshall FT14 Ball Float Steam Traps High-Capacity Continuous Condensate Discharge

Welcome to the ultimate authority on mechanical steam loop optimization, heat transfer efficiency, and industrial energy conservation. As a leading technical supply partner, FlowBiz Exports Pvt. Ltd. specializes in supplying and distributing genuine, high-capacity Spirax Marshall FT14 Ball Float Steam Traps.

Unlike thermostatic or thermodynamic traps that discharge condensate intermittently after a temperature drop or pressure change, the mechanical ball float trap operates on a pure density principle. It modulates its internal valve orifice continuously in direct response to the volume of incoming condensate. This instant, modulating response makes the FT14 the premium engineering choice for process equipment subjected to heavy, fluctuating condensate loads, ensuring water-free steam spaces and maximum thermal efficiency.

Technical Specifications & Operating Thresholds

The Spirax Marshall FT14 series features a high-density pressure boundary, designed to handle high mechanical stresses and thermal shocks in critical process lines.

Core Engineering Specifications

• Design Classification: Mechanical Ball Float Steam Trap with Integral Thermostatic Air Vent.

• Body Configuration: Robust cast iron body finished with a blue epoxy-coated exterior for enhanced atmospheric corrosion resistance.

• Internal Orifice Layout: Fixed orifice mechanism designed for continuous, modulated discharge.

• Maximum Discharge Capacity: Up to 2,000 kg/h (varies with differential pressure selection).

• Available Sizes: 15 NB (1/2"), 20 NB (3/4"), and 25 NB (1").

• End Connections: Standard Screwed BSPT / NPT or Flanged ends (ANSI/ASME Class 150/300 benchmarks).

Pressure & Thermal Envelope Boundaries

Differential Pressure Orifice Sub-Classifications

• FT14-4.5 Orifice: Optimized for low-pressure steam loops up to 4.5 bar differential.

• FT14-10 Orifice: Engineered for medium-pressure process runs up to 10 bar differential.

• FT14-14 Orifice: Built for high-capacity utility headers up to 14 bar differential pressure.

Heavy-Duty Material Composition

The internal trim elements are manufactured entirely from premium stainless steel alloys to withstand continuous high-velocity flow and prevent erosion or wire-drawing across the valve seat:

• Main Body & Cover: Heavy-Duty Cast Iron (ASTM A126 Class B / IS 210 Gr. FG260) with Blue Epoxy Finish.

• Ball Float Assembly: High-Grade Stainless Steel (AISI 304).

• Valve Seat & Housing: Corrosion-Resistant Stainless Steel (AISI 415/316).

• Air Vent Capsule: Stainless Steel Balanced Pressure Thermostatic Element.

• Drain Plug: Carbon Steel / Stainless Steel.

• Body Gaskets: Reinforced Exfoliated Graphite.

Advanced Mechanical Engineering Benefits

1. Instantaneous continuous Discharge

The FT14 senses the density difference between steam and condensate. As condensate fills the trap body, the stainless steel ball float rises, modulating the valve plug away from the seat. Condensate is discharged immediately at steam saturation temperature, preventing liquid backing up into your heat exchangers, air heaters, or jacketed process lines.

2. Dual-Function Integral Air Venting

Every Spirax Marshall FT14 trap features a built-in balanced pressure thermostatic air vent capsule. During system start-up, this vent automatically stays open to purge large volumes of cold air and non-condensable gases. Once hot steam reaches the trap, the capsule snaps shut, transferring full flow control over to the mechanical ball float mechanism.

3. Integrated Maintenance Features

Equipped with a manual drain plug at the base of the cast iron cover, the FT14 allows maintenance teams to safely blow down accumulated pipeline scale or drain the trap body during routine shutdowns. This simple feature prevents system blockages and protects the internal seat from scoring or debris build-up.

Global Compliance, Certifications & Supply Reach

As an established supplier and exporter, FlowBiz Exports Pvt. Ltd. provides fully compliant, certified steam management components. Every Spirax Marshall FT14 ball float trap is CE marked and fully compliant with the European Pressure Equipment Directive (PED 2014/68/EU) alongside strict AISI manufacturing baselines. Each unit is backed by a 12-month manufacturer's warranty.

We provide flexible commercial terms, secure packaging, and complete material traceability documentation across all major industrial manufacturing zones, chemical clusters, and SEZs in India:

• Gujarat Chemical Nodes: Vapi, Valsad, Bharuch, Ankleshwar, Kalol, Rakhial, Odhav, Sanand, Gandhidham, Kutch, Dholka, Naroda, Vatva, Kathwada, Makarpura, Navsari, Hazira, Sachin, Palanpur, Deesa, Mundra, Anjar, Bhuj, Vagra, Panoli, Dahej, Jagadia, Kadi, Godhra, and Halol.

• Maharashtra Processing Hubs: Mumbai, Nashik, Konkan, Nagpur, Aurangabad, Amravati, Pune, Dahanu, Alibaug, Bhiwandi, Baramati, Satara, Chandrapur, Khed, Talegaon, Ahmednagar, Buldhana, Kolhapur, Nanded, Ambernath, Kurkumbh, Lote Parshuram, Taloja, Butibori, Patalganga, Kalyan, Badlapur, Mahad, TTC Industrial Area, Tarapur, Dombivli, and Roha.

• Madhya Pradesh Manufacturing Centers: Bhopal, Indore, Jabalpur, Gwalior, Rewa, Ujjain, Pithampur, Kiratpur, Mohasa, Shivpuri, Sitapur, Mandideep, Dewas, Malanpur, and Pilukhedi.

• Odisha Industrial Corridors: Angul, Jaykaypur, Balangir, Balasore, Bargarh, Rayagada, Rajgangpur, Talcher, Kaniha, Vikrampur, and Makundapur.

Frequently Asked Questions (FAQ)

Q: How does the SPIRAX Marshall Ball Float Steam Trap FT14 operate in steam line applications?

A: The FT14 operates using a mechanical stainless steel ball float connected via a leverage assembly to a discharge valve plug. As condensate enters the chamber, the float rises, opening the valve seat to allow continuous, modulated condensate removal. When steam arrives, the float drops, sealing the valve tightly to prevent live steam loss.

Q: What benefits do users gain from the corrosion-resistant stainless-steel internal components?

A: The premium stainless steel internals resist the highly corrosive effects of carbonic acid often found in condensate loops, as well as high-velocity fluid erosion. This durable metallurgical design reduces routine maintenance, prevents internal wire-drawing leaks, and extends the valve's operational life.

Q: When should the manual drain plug on the FT14 be used?

A: The manual drain plug should be utilized during routine plant maintenance or system shutdowns to manually blow down accumulated pipe scale and safely drain trapped condensate from the chamber. This prevents cold water collection and shields the body from freezing or water-hammer stress.

Q: Where can the FT14 steam trap be installed for best results?

A: The FT14 must be inline-mounted horizontally at low points in your steam piping network or immediately following heat-transfer process machinery. For optimal float buoyancy and alignment, ensure the unit is oriented with the arrow pointing in the flow direction and the cast "FT" lettering uppermost.

Q: What certifications and warranties does the SPIRAX Marshall FT14 offer?

A: Every genuine FT14 ball float trap is CE marked and certified compliant with the Pressure Equipment Directive (PED 2014/68/EU). It matches global AISI manufacturing baselines and includes a 12-month factory warranty covering material defects and performance accuracy.

Q: How does the fixed orifice design benefit steam trap operation?

A: The fixed orifice provides a stable, predictable flow pathway that self-modulates through float movement. This ensures smooth, continuous condensate discharge up to 2,000 kg/h without requiring external manual adjustments or recalibrations under varying line pressures.

Are you updating a heavy-duty chemical process loop requiring a 25 NB flanged FT14-10 ball float configuration, or configuring a high-efficiency plant heat exchanger manifold that demands a 15 NB screwed FT14-14 trap? Contact our technical engineering division today to get an official quote and current pricing list, or ask a single question regarding your system's operating pressure limits or target condensate loads below to guide the conversation forward.
