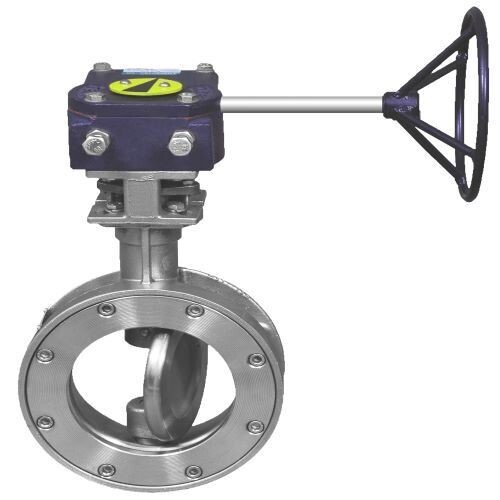

About Spherical Disc Butterfly Valve

API 609 High-Performance Spherical Disc Metal-Seated Butterfly Valves FlowBiz Gandhidham

Welcome to FlowBiz Export Private Limited, a certified manufacturing authority for severe-service fluid control, high-temperature thermal isolation, and zero-leakage industrial pipeline containment. Operating advanced metallurgical foundries, state-of-the-art CNC machining grids, and certified non-destructive testing cells in Gandhidham, Kutch, and Ahmedabad, Gujarat, we are India's premier manufacturer, supplier, and global B2B exporter of industrial Metal-Seated Spherical Disc Butterfly Valves.

Our high-performance eccentric quarter-turn isolation assets are specifically engineered to replace failure-prone soft-seated valves in aggressive, high-temperature, and abrasive applications. From our strategic manufacturing hub in Gandhidham, we support heavy infrastructure across India's primary industrial corridorsincluding Vapi, Valsad, Surat, Ankleshwar, Bharuch, Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur, Indore, Dewas, Bhopal, Chennai, Coimbatore, and Salembacked by fast-tracked maritime logistics via major local ports for direct global project export.

Technical Specifications & Compliance Parameters

FlowBiz Spherical Disc Butterfly Valves utilize an advanced eccentric geometry where the contoured, spherical edge of the disc seats tightly against a replaceable solid metal ring. This eliminates the continuous rubbing and high friction characteristic of standard concentric valves, allowing for smooth operation and long-term sealing performance under severe thermal and mechanical stresses.

Engineering Parameter	Certified Product Specifications & Compliance Codes
Design Standards	Fully compliant with API 609 Category B and ASME B16.34
Testing Standards	100% hydrostatically and pneumatically verified to API 598 protocols
Leakage Class Control	Certified ASME B16.104 Leakage Class VI (Bubble-Tight Isolation)
Sizing Envelope Array	Full production range: 2 Inches to 40 Inches (50 mm to 1000 mm)
Pressure Class Ratings	Precision-engineered for PN10, PN16, and ASME Class 150# tracks
Operating Temperature	Extreme thermal range capability spanning from 50C to +400C
Body & Disc Metallurgy	Heavy-Duty Cast Steel or Premium Stainless Steel (SS304 / SS316)
Sealing Seat Matrix	High-durability Replaceable Metal-to-Metal Seat design
End Connection Interface	Precision-Machined Raised Face Flanged Ends (ASME B16.5)
Operational Actuation	High-Leverage Manual Hand Lever / Enclosed Worm Gearbox / Actuator Ready

Core Engineering Features & Design Advantages

1. Advanced Spherical Disc Profile with Cam-Action Sealing

Standard concentric butterfly valves subject their seats to continuous friction and wear during operation, causing rapid degradation in high-temperature or abrasive lines. The FlowBiz design addresses this with a precision-ground spherical disc edge paired with an eccentric shaft offset. This configuration creates a true cam action: upon opening, the disc lifts cleanly away from the metal seat within its first few degrees of rotation. This design minimizes wear, lowers operating torque, and extends the valve's lifespan.

2. Extreme Thermal Tolerance (50C to +400C)

Standard rubber or polymer-seated valves break down, soften, or crack when exposed to extreme temperatures. Because our internal sealing matrix relies on a solid metal-to-metal replaceable seat design, these assets maintain complete structural integrity across an expansive thermal envelope. They operate reliably from sub-zero cryogenic utility loops at 50 Cup to high-temperature process streams at +400C.

3. Premium High-Alloy Stainless Steel Metallurgy

To withstand external environmental factors and prevent internal chemical erosion, our valve bodies and internal discs are cast from high-quality structural steel or premium SS304/SS316 stainless steel. This chemistry provides high mechanical strength, handles continuous pipeline thermal cycles, and resists pitting corrosion, making these valves an exceptional choice for pipelines transporting water, gas, air, or hydrocarbons.

4. Certified Class VI Tight Shut-Off via Replaceable Seats

Achieving an absolute bubble-tight shut-off without rubber inserts requires precise machining. FlowBiz metal-seated valves are engineered to meet ASME B16.104 Leakage Class VI requirements. Additionally, our specialized replaceable seat design allows plant maintenance crews to change out the internal seating ring during scheduled overhauls without scrapping the entire valve body, reducing long-term maintenance costs.

Strategic High-Temperature Industrial Applications

FlowBiz metal-seated spherical disc butterfly valves are specified across primary processing lines:

• Refineries & Petrochemical Manifolds: High-temperature hydrocarbon isolation, tank farm distribution headers, oil blending lines, and process air networks.

• Power Generation & Thermal Utilities: Low-pressure steam isolation, condenser cooling water systems, boiler air feed grids, and co-generation manifolds.

• Chemical Processing Facilities: Safe containment, throttling, and absolute isolation of volatile process vapors, organic solvents, and corrosive chemical intermediates.

• Large-Scale Water & Utility Networks: High-capacity water treatment mains, industrial air piping, and gas distribution lines.

Frequently Asked Questions (FAQ)

Q: Why is a metal-to-metal seat preferred over an elastomeric soft seat in severe service?

A: Soft seats made of EPDM, Viton, or PTFE provide excellent sealing in ambient-temperature utilities but degrade rapidly in severe applications. Temperatures above 200C cause them to melt, deform, or blow out under pressure waves, leading to unsafe pipeline conditions. A Replaceable Metal-to-Metal Seat utilizes high-strength alloys that maintain their mechanical properties and sealing performance across severe thermal conditions up to 400C, handling suspended particulates and thermal cycles without leaking.

Q: What are the primary advantages of utilizing a flanged connection for large-bore systems?

A: FlowBiz butterfly valves feature precision-machined ASME B16.5 flanged ends. This design allows the valve body to bolt directly to matching pipeline flanges. Flanged connections distribute mechanical pipeline stresses evenly across the joint, provide high structural alignment, and resist pipeline bending loads. This setup simplifies field maintenance, allowing technicians to unbolt and pull the valve for inspection or service without cutting the line.

Q: Can these spherical disc butterfly valves be used for throttling or modulation applications?

A: Yes. Unlike standard gate valves, which must be operated either fully open or fully closed, the combination of our eccentric spherical disc profile and durable metal seat allows these valves to handle high-velocity fluid streams when partially open. They perform reliably in continuous throttling, flow regulation, and air-balancing applications without experiencing the disc chatter or localized erosion that can damage soft-seated designs.

Q: How does the manual gear operator improve field safety and valve execution?

A: In larger pipeline sizes ranging from 50mm up to 1000mm, the mechanical forces exerted by flowing fluid make manual operation difficult due to the high torque required. FlowBiz equips our larger-bore valves with heavy-duty enclosed worm gearboxes. These units provide a high mechanical advantage, allowing field operators to execute the valve smoothly and predictably. This design prevents sudden valve slamming and protects downstream pipe segments from high-pressure water hammer surges.

Q: How can project procurement managers and engineers coordinate a factory quote?

A: Sourcing can be initiated by contacting our corporate sales and engineering division in Gandhidham, Gujarat. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise nominal sizing requirements (50 mm to 1000 mm), preferred metallurgy (SS304 vs. SS316), explicit fluid media properties, system velocity parameters, and target temperature marginsto deliver a certified product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a high-temperature gas manifold or upgrading a severe-service utility loop? Contact our Gandhidham sales and engineering office today to receive comprehensive technical sheets, certified dimensional blueprints, and an itemized commercial proposal
