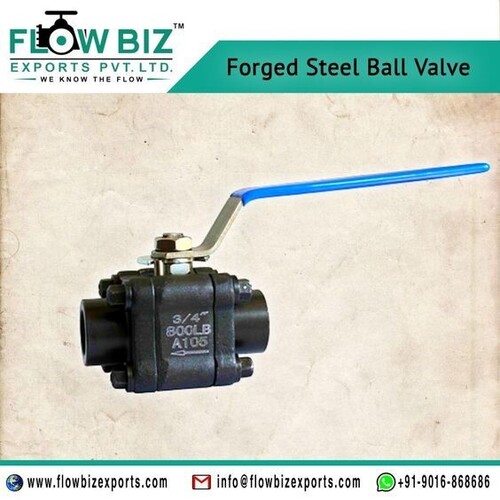

Premium Forged Steel Ball Valves Manufacturer in Pune | FlowBiz Exports Pvt. Ltd.

FlowBiz Exports Pvt. Ltd. is a premier manufacturer, supplier, and global exporter of high-performance forged steel ball valves in Pune, Maharashtra, India. Unlike standard cast valves, our forged steel series is engineered using advanced thermal forging techniques that alter the grain structure of the metal. This eliminates internal voids, gas pockets, and cooling defects, yielding a valve with exceptional mechanical strength, impact resistance, and structural density.

Manufactured in strict compliance with global industrial norms, our valves are highly valued for their superior corrosion resistance, precise surface finishes, and lightweight yet sturdy construction. We offer this comprehensive range in diverse technical specifications, fully customized to meet your precise engineering requirements.

From our manufacturing and distribution base in Pune, we seamlessly serve key industrial zones, chemical corridors, and international export pipelines across India and worldwide.

Technical Specifications Matrix

Key Engineering Advantages of Forged Ball Valves

1. Unmatched Structural Strength & High-Pressure Resilience

The forging process compresses the raw steel matrix, aligning the grain flow with the contour of the valve body. This results in a components matrix characterized by elite tensile strength, structural durability, and resistance to fatigue failure. It is the definitive choice for high-pressure industrial environments where casting failure is a critical risk.

2. Advanced Leak-Proof Sealing Options

FlowBiz forged valves ensure an absolute, trouble-free seal under demanding operational parameters.

• Soft Seating: Utilizing premium polymers like PTFE or RPTFE to achieve an ANSI/FCI 70-2 Class VI bubble-tight shutoff for clean gases and liquids.

• Metal-to-Metal Seating: Incorporating hardened alloy faces for severe-service applications involving slurries, high temperatures, or abrasive particles that would quickly destroy soft seals.

3. Extreme Temperature Versatility

From freezing cryogenic exposure to high-heat process steam loops, our valves maintain tight tolerances across a broad temperature spectrum (-40F to 392F). The internal component tolerances are calculated to expand and contract symmetrically, preventing the valve mechanism from freezing, binding, or leaking during rapid thermal cycling.

4. Rugged Anti-Corrosive Protection

Crafted from premium stainless steel and forged carbon steel alloys, our valves are naturally resilient against rust and chemical erosion. To extend service life in demanding offshore, outdoor, or chemical-fume environments, each valve body receives specialized anti-corrosive treatments and robust painted or polished finishes.

Frequently Asked Questions (FAQs)

Q: Why is a forged steel ball valve structurally superior to a cast steel valve?

A: Cast valves are made by pouring molten metal into a mold, which can sometimes introduce cooling defects, micro-porosities, and internal voids. Forged valves are shaped using localized compressive forces while the metal is in a solid state. This refines the grain structure, significantly increasing the valve's yield strength and mechanical impact resistance, allowing for thinner, lighter walls that handle higher pressures safely.

Q: What is the benefit of a floating ball design in forged pipelines?

A: In a floating ball configuration, the internal ball is not anchored by fixed trunnion bearings. Instead, it is suspended by the stem and cradled between two soft or metal seats. When the valve closes, the upstream line pressure pushes the ball slightly downstream against the opposite seat. This pressure-assisted sealing action ensures a tighter, more reliable seal as the line pressure rises, while automatically compensating for minor seat wear over time.

Q: When should I opt for a 3-piece forged design over a 2-piece design?

A: * Two-Piece Designs: Offer a highly robust, streamlined structural envelope with fewer body joints, minimizing potential external leak pathsideal for standard high-pressure utility lines requiring minimal upkeep.

• Three-Piece Designs: Feature a central swing-out body capsule sandwiched between two independent end connectors. This is critical for process-intensive facilities, as it allows technicians to replace internal seats, seals, or the ball without unbolting or cutting the end connections from the pipeline, saving hours of plant downtime.

Q: Why are the color-coded finishes (Black, Silver, Blue) advantageous for plants?

A: Beyond providing a thick layer of atmospheric corrosion resistance, these finishes allow engineering teams to establish easy visual identification across dense pipeline configurations. For example, operators can easily color-code lines by media typesuch as blue for water treatment loops, silver for compressed air, and black for hydrocarbon or gas processing lines.

Q: Why is FlowBiz considered a premier forged steel valve partner in Pune?

A: FlowBiz Exports Pvt. Ltd. combines advanced metallurgical forging technology with strict quality control frameworks. Every forged steel valve manufactured in our Pune footprint undergoes comprehensive pressure, shell, and seat validation testing to verify complete zero-leakage compliance before export packaging. By sourcing raw materials strictly from certified market vendors and offering extensive customization capabilities, we deliver safe, reliable flow control solutions built to excel in tough industrial environments.
