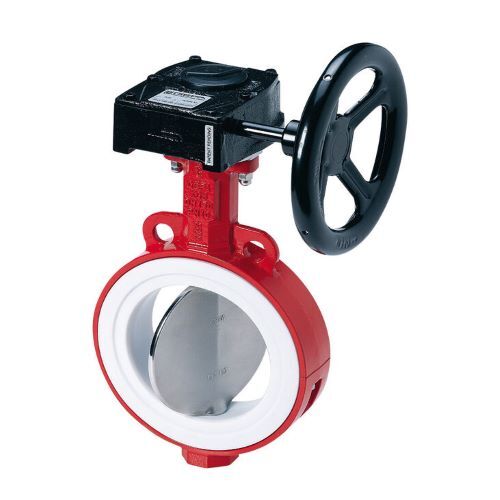

High-Purity Fluoropolymer-Seated Butterfly Valves FlowBiz Rajkot

Welcome to FlowBiz Export Private Limited, a certified manufacturing authority for extreme chemical isolation, ultra-pure fluid routing, and heavy-duty corrosion management. Operating specialized high-alloy precision foundries, advanced fluoropolymer molding laboratories, and automated compliance testing facilities in Rajkot, Gujarat, we are India's premier manufacturer, supplier, and global B2B exporter of severe-service PTFE/PFA-Seated Butterfly Valves.

Our specialized quarter-turn containment valves are engineered to construct an absolute, non-reactive physical barrier against highly aggressive acids, volatile caustics, and toxic chemical fluids. From our corporate manufacturing base in Rajkot, we seamlessly serve primary industrial clusters nationwideincluding Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Pune, and Chennaibacked by fast-tracked logistics for prompt domestic deliveries and reliable global project export.

Technical Specifications & Lining Compliance Matrix

FlowBiz Fluoropolymer-Seated Butterfly Valves feature a fully encapsulated construction. The internal polymer seat completely covers the wetted surfaces of the body casing and extends directly over the flange contact faces. This design ensures the process media cannot make contact with the underlying metallic pressure shell, eliminating the risk of internal body corrosion and structural degradation.

Core Engineering Features & Design Advantages

1. Advanced Melt-Processable PFA Sealing Technology

While standard virgin PTFE provides good chemical inertness, it is prone to microscopic subsurface porosity during conventional compression molding. FlowBiz utilizes premium Perfluoroalkoxy (PFA) for severe corrosive configurations. PFA shares identical chemical resistance to PTFE but is melt-processed, resulting in a significantly denser, smoother, and completely non-porous polymer matrix. This enables the valve to operate at elevated temperatures up to+

+260C without risking chemical permeation.

2. Complete Body Isolation & Wetted Surface Shield

Our fluoropolymer seats are molded with an extended profile that wraps completely around the internal bore and flows over the outer face of the wafer body. When bolted into a pipeline, the pipe flanges compress directly against this extended polymer face. This completely isolates the underlying cast iron outer shell from exposure to the process media, allowing plant operators to utilize cost-effective external metal housing while retaining the corrosion-resistant performance of a high-alloy valve.

3. Cavity-Free, Low-Pressure Drop Flow Profile

Standard linear valves or cavity-filled ball valves create internal dead zones where sticky chemical residues, water treatment polymers, or crystals drop out of suspension and accumulate. Our quarter-turn butterfly valve provides a streamlined, concentric, cavity-free internal path. Media sweeps cleanly past the polished disc face, ensuring an ultra-low pressure drop across the valve seat while preventing material stagnation.

4. Direct Actuator Integration via ISO 5211 Topworks

To simplify automation for complex water treatment headers and chemical process manifolds, each valve body is engineered with an integrated ISO 5211 top flange drilling pattern. This universal configuration allows for direct mounting of manual pull-levers, enclosed weather-proof worm gearboxes, double-acting pneumatic rack-and-pinion cylinders, or smart electric motor actuators without the need for custom fabrication or bulky mounting brackets.

Strategic Severe-Service Industrial Applications

FlowBiz high-grade PFA and PTFE-seated butterfly valves are specified across high-consequence liquid loops:

• Aggressive Chemical Processing Plants: Safe routing, throttling, and absolute isolation of concentrated acids, volatile caustics, organic solvents, and corrosive chemical reagents.

• Industrial Water Treatment & Desalination: Demineralized water distribution headers, chemical dosing skids, acid/alkali ion-exchange regeneration lines, and high-purity deionized loops.

• Pharmaceutical & Biotech Utilities: Handling aggressive bulk washdown chemicals, solvent recovery lines, and chemical waste management manifolds.

• Pulp, Paper, & Manufacturing Facilities: Regulating highly corrosive chemical bleaching lines, raw wastewater effluents, and acid sampling manifolds.

Frequently Asked Questions (FAQ)

Q: What is the primary engineering advantage of specifying PFA over standard PTFE for the valve seat?

A: Virgin PTFE must be compressed and sintered to form a seat, a process that can leave microscopic voids or pinholes in the material. Under high pressures or elevated temperatures, aggressive chemicals can slowly permeate through these voids and attack the outer metal body casing. PFA (Perfluoroalkoxy) is melt-processed, meaning it is melted and injected under pressure. This creates a denser, completely non-porous polymer lining that provides superior resistance to chemical permeation and maintains its structural integrity at continuous temperatures up to +

+260C.

Q: Why do industrial high-performance lined butterfly valves start at a 2-inch nominal size?

A: Pipelines below 2 inches (50mm) feature narrow internal cross-sectional areas. Because a butterfly valve's disc sits directly inside the middle of the fluid stream even when fully open, placing a disc with a thick internal polymer lining layer inside a micro-bore line would restrict the fluid path, creating an excessive restriction and severe pressure drop. For pipelines below 2 inches, FlowBiz Fluoropolymer-Lined Plug Valves or Lined Ball Valves are specified to preserve proper fluid velocity and pressure profiles.

Q: What is the structural purpose of the extended flange contact face on the valve seat?

A: The molded PFA/PTFE seat liner is designed to wrap completely around the sides of the wafer body casing, covering the entire raised sealing face where the valve meets the companion pipe flanges. When the pipeline bolts are tightened, the metal pipe flanges compress directly against this plastic layer, creating an absolute face gasket seal. This completely prevents the process fluid from leaking out of the pipeline or reaching the valve's cast iron shell, eliminating the need for separate flange gaskets.

Q: When should an engineer choose a manual pull-lever over an automated version?

A: Manual operation via an ergonomic hand lever or worm gearbox is ideal for pipelines where process changes are infrequent or where hands-on operational control improves safety oversight. Manual units offer an exceptionally cost-effective, zero-maintenance asset that eliminates the need for instrumentation wiring, compressed air loops, or positioner calibration, making them a practical choice for isolated utility manifolds or general chemical batching lines.

Q: How can project engineering and procurement teams in Rajkot arrange a factory quote?

A: Sourcing can be initiated by contacting our corporate sales division in Rajkot, Gujarat. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise nominal pipeline diameters (2" to 12"), preferred seating compounds (PFA vs. PTFE), target chemical velocity and concentration scales, and automated actuation topworks profilesto deliver a certified product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing an aggressive chemical dosing manifold or upgrading an industrial water treatment filtration matrix? Contact our Rajkot sales and engineering office today to receive complete technical data sheets, certified dimensional blueprints, and an itemized commercial proposal.
