PTFE-Lined Y-Type Strainers: Advanced Chemical Filtration and Design Standards

In high-purity chemical processing, pharmaceutical manufacturing, and aggressive industrial fluid handling, pipelines regularly transport highly corrosive media such as concentrated mineral acids, strong alkalis, toxic organic solvents, and reactive chemical slurries. Standard metallic filtration equipment can experience severe pitting, galvanic corrosion, and rapid structural degradation when exposed to these fluids. This degradation risks catastrophic pressure boundary failures and fluid cross-contamination.

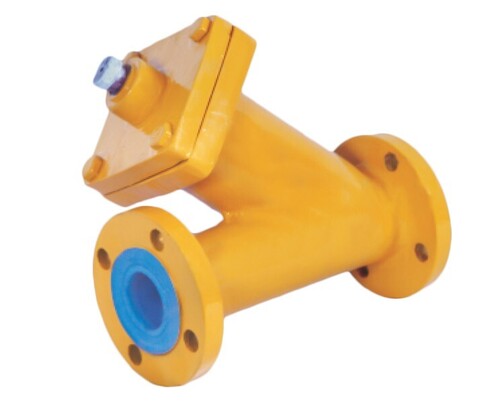

An industrial PTFE-Lined Y-Type Strainer provides a high-integrity, severe-service filtration solution. It features a compact mechanical footprint designed to trap and retain solid particles while maintaining absolute chemical inertness. By completely encapsulating the internal fluid path with a thick, heavy-duty layer of PTFE (Polytetrafluoroethylene), the underlying metallic pressure housing is isolated from the corrosive stream. This matches the mechanical strength of an external carbon steel or stainless steel shell with the universal chemical resistance of a fluoropolymer matrix.

                    PTFE-Lined Inline Filtration Path


 [ Corrosive Media ]  [ PTFE-Lined Slanted Leg ]  [ Cleaned Media ]
  (Acids & Slurries)      [ Traps Solid Particles  ]      (Asset Protection)

                                       (Removable Bolted Flange Cover)

                          [ Cleanable Screen Mesh ]

FlowBiz Export Private Limited is an elite global fluid-handling brand and a premier PTFE Lined Y Type Strainer Manufacturer in Gandhinagar, Gujarat, India. We focus on precision engineering high-performance lined filters designed to deliver long-term protection for downstream assetssuch as lined pumps, glass-lined reactors, and analytical instrumentsunder severe working conditions.

Technical Specifications & Compliance Parameters

FlowBiz PTFE-lined Y-strainers are precision-machined and tested to meet strict international design and pressure containment standards, enabling direct compatibility with global piping grids.

Core Product Parameters

Flange Connections & Standards Compliance

• Global Dimensional Codes: Manufactured in strict accordance with ANSI, DIN, JIS, ASME, and BS parameters.

• Flange Alignment Profiles: Designed for secure connection with pipe flanges conforming to DIN EN 1092-1 or ANSI B16.5 (150/300 Class) standards.

Critical Engineering Features & Safety Benefits

1. Unmatched Chemical and Permeation Resistance

The heavy-duty, minimum 3 mm thick PTFE lining forms an impenetrable barrier that isolates aggressive chemicals from the primary metal housing. Because virgin PTFE features a non-reactive molecular structure, it prevents internal corrosion and resists the permeation of aggressive fluids. This heavy-duty lining extends the service life of your filtration system and lowers overall maintenance frequency compared to unlined alternatives.

2. High Thermal Resiliency across Process Grids

While standard plastic components can warp or soften under severe temperature spikes, our high-density PTFE lining is engineered to maintain structural stability across a wide thermal range of -40C to +200C. This high resilience enables process plants to run volatile high-temperature reactions or low-temperature cryogenic purges without risking linear distortion, mechanical failure, or vacuum collapse.

3. Dual-Orientation Mounting & Simplified Maintenance

FlowBiz Y-filters feature a flexible layout designed for both horizontal and vertical pipeline installations. Its structural design provides simple access to the screen mesh through a removable bolted flange cover on the slanted leg pocket. When pressure drops indicate debris accumulation, maintenance teams can quickly access the chamber to rinse out or replace the internal screen mesh, minimizing facility downtime and lowering operational costs.

                      Flexible Piping Integration



                Universal Flanged Configuration Options




 [ Horizontal Pipeline Runs ]                             [ Vertical Piping Loops ]
 (Slanted Leg Oriented Downward)                          (Media Moving in Downward Flow)

Pan-India Supply Capabilities & Export Logistics

Operating precision-machining production centers from our flagship hub in Gandhinagar, Gujarat, FlowBiz manages an expansive supply, distribution, and trade network to service all major industrial corridors and chemical manufacturing zones in India:

• Gujarat Logistics: Gandhinagar, Rajkot, Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch.

• Maharashtra Corridors: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur.

• Central & Southern India Hubs: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and global export markets.

Export-Grade Shipping Protocols

To safeguard the machined flange faces and internal PTFE linings from accidental scraping or mechanical shock during transit, FlowBiz anchors each valve batch inside premium, export-quality wooden cases or heavy-duty corrugated boxes. This treatment guarantees secure delivery to both domestic project sites and international global destinations.

Frequently Asked Questions (FAQ)

Q: Why should an engineer select a PTFE-lined Y-strainer over a standard unlined metallic strainer?

A: Standard unlined metallic strainers suffer from localized galvanic corrosion and rapid material loss when handling highly corrosive process fluids. This degradation can lead to fluid contamination from oxidized metal particles, which can ruin high-purity pharmaceutical or chemical batches. A PTFE-Lined Y-Type Strainer provides complete corrosion resistance and a leak-proof barrier. This protects the outer steel pressure housing from chemical attack, ensuring long-term pipeline safety and a lower total cost of ownership.

Q: What rules must field technicians follow when installing a Y-strainer in a vertical line?

A: A Y-type strainer can be safely mounted in a vertical pipeline position only if the process media travels downward. The strainer body must be installed with its slanted filter leg pocket pointing downward in the direction of the flow. This positioning ensures that gravity naturally draws captured debris, scale, and particulates into the collection pocket, keeping the main line clean and preventing contaminants from falling backward down the pipe during routine cleaning.

Q: How do you select the correct internal filter screen and mesh option for a chemical line?

A: Material and sizing selection depends entirely on your fluid chemistry and the particle micron ratings of your downstream assets:

• Material Selection: FlowBiz provides replaceable screen filters fabricated from SS 304 or SS 316 for general solvents, or complete PTFE mesh sheets for aggressive mineral acids that attack high-alloy steels.

• Mesh Configuration: Choose coarse mesh openings for high-velocity raw chemical transfers to prevent rapid blinding, or choose fine micron screens to intercept micro-particulates ahead of tight control valve orifices.

Q: What testing protocols are performed at the factory to verify leak-proof safety limits?

A: To satisfy strict industrial safety audits, every completed Y-strainer undergoes thorough quality checks, including hydrostatic and pneumatic pressure verification. The housing is pressurized to ensure structural containment up to its maximum safety margins, and specialized spark testing is conducted across the fluoropolymer lining. This process checks for microscopic pinholes, fractures, or thin spots in the polymer layer, guaranteeing that the strainer arrives at your facility ready for severe-service operations.
