BS 5156 High-Performance Resilient Sealed Diaphragm Valves FlowBiz Sachin

Welcome to FlowBiz Export Private Limited, a globally recognized engineering authority for zero-leakage fluid containment, high-purity isolation loops, and abrasive slurry management systems. Operating advanced investment casting foundries, automated polymer formulation cells, and rigorous hydrostatic compliance testing grids in Sachin (Surat), Rajkot, and Ahmedabad, Gujarat, we stand as India's premier manufacturer, supplier, and global B2B exporter of premium Stainless Steel Diaphragm Valves.

Our linear-motion diaphragm valves are engineered explicitly to overcome the mechanical limits of standard gate or ball valves when handling challenging process media. From our major production hub in the Sachin industrial zone, we seamlessly support critical infrastructure across India's primary domestic industrial corridorsincluding Rajkot, Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur, Indore, Dewas, Bhopal, Chennai, Coimbatore, and Salembacked by direct maritime and overland logistics for fast-tracked global project export.

Technical Specifications & Compliance Parameters

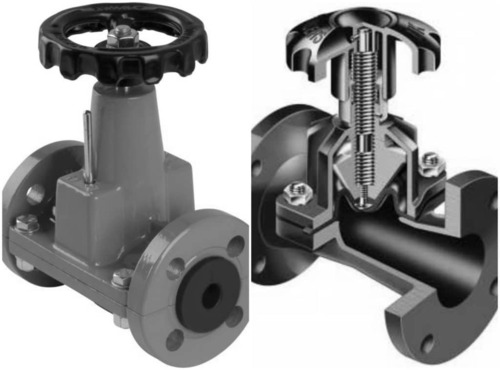

FlowBiz Diaphragm Valves feature an advanced cavity-free weir structure. A flexible, high-density elastomer membrane serves as both the dynamic flow regulator and the static seal that isolates the valve bonnet from the process current. This eliminates internal pockets where solid grains or bacteria can settle, making it highly effective for handling liquids with solid particulate matter.

Core Engineering Features & Design Advantages

1. Superior Handling of Suspended Solids and Slurries

In standard ball or gate valves, gritty particles and fibers easily lodge inside the mechanical seats, causing deep surface scratching, torque spikes, and early valve failure. The FlowBiz design features a streamlined weir profile with a flexible elastomer membrane. The resilient diaphragm closes smoothly over suspended grits and solid particles without damaging the tight seal, making these valves ideal for handling sticky or thick fluids containing particulate matter.

2. Ultimate Cavity-Free Design for Absolute Fluid Purity

Our stainless steel diaphragm valves feature an un-pocketed, cavity-free interior that reduces the spaces where sediment, mineral scale, or biofilms can trap and grow. This smooth wetted path prevents fluid cross-contamination and allows for thorough cleaning. Because of this high sanitary standard, the bio-pharm, food processing, and electronics manufacturing industries recognize this layout as an exceptional choice for clean process lines.

3. Total Hermetic Sealing and Isolated Topworks

Traditional valves rely on compressed packing rings around a moving stem, which naturally wears down and can cause external leaks. In our design, the operating mechanism of the diaphragm valve is completely isolated from the flowing media. This absolute static barrier prevents aggressive process line fluids from corroding the operating hardware and ensures zero probability of stem leakage to the environment.

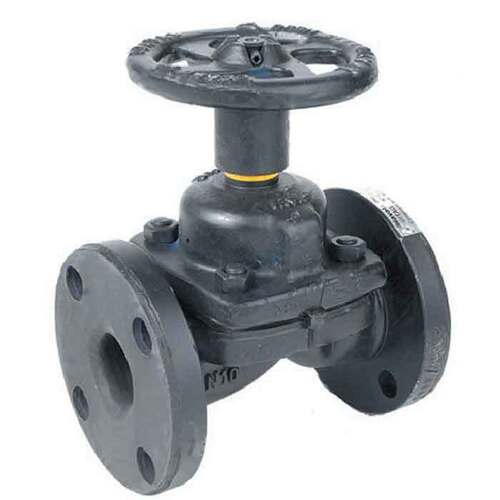

4. Robust Construction with Advanced Black Finish

To provide long-term reliability for regulating and isolating water flow in challenging environments, our valve bodies are cast from premium high-grade stainless steel. The exterior is protected by a specialized, tough black coating finish. Beyond its clean look, this coating acts as an extra layer of defense against chemical splashes, ambient moisture, and harsh plant weathering, extending the valve's working life.

Strategic Cross-Industry Applications

FlowBiz high-performance flanged diaphragm valves are specified across primary process lines:

• Water Treatment & Sewage Infrastructure: Sectional isolation of raw sewage pipelines, water treatment dosing loops, automated sludge treatment systems, and municipal processing plants.

• Food & Pharmaceutical Manufacturing: Managing clean process utilities, chemical batch processing lines, fine food emulsions, and sensitive laboratory equipment headers.

• Electronics & Semiconductor Fabrication: High-purity deionized water (DI) loops, acid etching distribution networks, and chemical wash manifolds.

• Pulp & Paper Production Utilities: High-velocity wood pulp stock lines, chemical bleaching headers, raw process water intake mains, and mill wastewater lines.

Frequently Asked Questions (FAQ)

Q: Why is a manual diaphragm valve preferred over an automated configuration?

A: Manual diaphragm valves are best suited for industrial lines where direct control of flow is needed, or where automated remote control is unnecessary or impractical. The high-leverage handwheel allows plant operators to make precise adjustments for frequent regulation or tight shut-off, providing a highly reliable, cost-effective solution that eliminates the need for expensive electrical grids or compressed air lines.

Q: How does the flanged connection type benefit pipeline installation and maintenance?

A: Each valve is engineered with robust ASME B16.5 flanged ends to ensure secure, leak-proof integration within piping networks. This flanged design distributes mechanical pipeline stresses evenly and prevents body distortion. This setup simplifies field maintenance, allowing technicians to quickly unbolt the valve for inspection or membrane replacement without cutting or modifying the stainless steel pipeline sections.

Q: Can maintenance and servicing be done without interrupting the pipeline layout?

A: Yes, a major mechanical advantage of the top-entry design is that the valve bonnet can be unbolted and the internal diaphragm membrane replaced without disconnecting the valve body from the main pipeline. Because the process fluid never contacts the topworks or stem hardware, field maintenance teams can perform routine topworks servicing safely and efficiently, reducing overall system downtime.

Q: How should an engineer select between an EPDM and a PTFE-faced diaphragm?

A: The selection depends on the chemical properties and temperature of your process fluid:

• EPDM Liners: Provide excellent flexibility, high abrasion resistance, and a reliable seal for standard utility water lines, sewage sludge, and mild chemical treatments.

• PTFE-Faced Membranes: Required for highly aggressive acids, organic solvents, and high-purity pharmaceutical tracks, offering maximum chemical compatibility and resistance to chemical degradation.

Q: How can project procurement managers and engineers coordinate factory-direct quotes?

A: Sourcing can be initiated by contacting our corporate sales division in Sachin (Surat) or Ahmedabad, Gujarat. Our technical application engineering division will guide you through a comprehensive consultationassessing your precise nominal pipe dimensions (1/2"to 12"), preferred pressure classification (PN10/PN16/Class 150), explicit process media properties (slurry, water, or chemical chemicals), and target operating temperaturesto deliver a certified product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing an abrasive sewage pipeline loop or upgrading a high-purity pharmaceutical process header? Contact our Sachin sales and engineering office today to receive complete technical data sheets, certified structural blueprints, and an itemized commercial proposal.
