API 609 / BS 5156 PTFE-Lined Diaphragm Valves FlowBiz Mumbai

Welcome to FlowBiz Export Private Limited, the definitive engineering standard for high-consequence chemical containment, hermetic acid isolation, and zero-contamination fluid management. Operating an advanced fluoropolymer lining cell and high-pressure compliance laboratory in Mumbai, Maharashtra, we are Indias premier manufacturer, supplier, and global exporter of industrial PTFE-Lined Diaphragm Valves.

Our specialized, chemically inert product lines are engineered to handle the worlds most corrosive, hazardous, and high-purity process fluids. We seamlessly serve critical industrial corridors across the entire domestic marketincluding Mumbai, Thane, Pune, Nashik, Ahmedabad, Vapi, Surat, Ankleshwar, Bharuch, and Chennaialongside fast-tracked maritime freight routes operating out of the Jawaharlal Nehru Port Trust (JNPT) for rapid global export.

Technical Specifications & Small-to-Medium Bore Limits

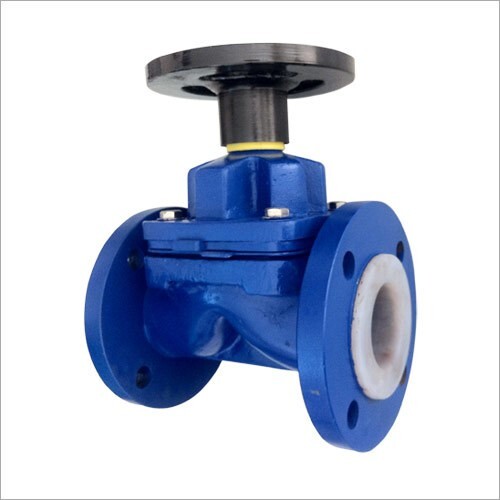

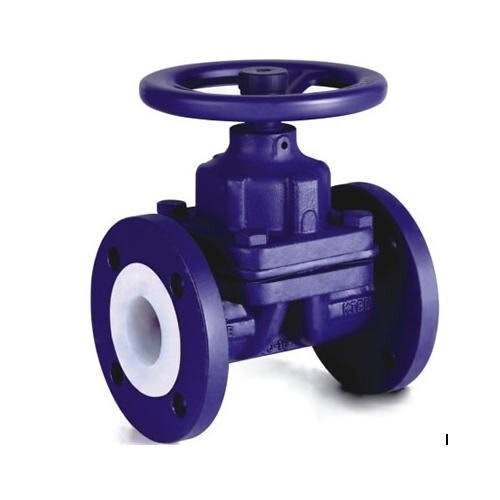

FlowBiz PTFE-lined diaphragm valves utilize a heavy-duty virgin fluoropolymer lining locked into an armored metallic shell. By combining a smooth, cavity-free Weir-Type (BS 5156) internal body geometry with a flexible elastomeric/PTFE dual-diaphragm assembly, these valves isolate aggressive process media completely from the bonnet mechanics and stem threads.

Core Engineering Features & Design Advantages

1. Chemically Inert Virgin PTFE Lining Matrix

Our valves feature a premium, high-density PTFE lining (Min. Thickness 3 mm) dynamically molded and mechanically anchored into the interior of the armored metal body. PTFE is virtually universal in its chemical resistance, remaining completely inert when exposed to highly concentrated sulfuric acid, hydrochloric acid, nitric acid, chlorine gas, and aggressive organic solvents. This lining completely eliminates the risk of metallic corrosion and fluid contamination.

2. Dual-Layer Hermetic Diaphragm Assembly

To guarantee an absolute barrier against toxic or fugitive emissions, FlowBiz utilizes a dual-layer sealing configuration:

• The Process Face: A precision-molded, 100% virgin PTFE diaphragm sheet that faces the chemical stream, resisting chemical degradation and extreme operational temperatures.

• The Cushion Backing: A high-elasticity, vulcanized EPDM rubber backing that provides excellent mechanical memory, ensures uniform compression against the internal weir, and handles high-frequency cycle stresses.

3. Cavity-Free Weir-Type Geometry

Standard gate or ball valves incorporate internal pockets and body recesses where debris, suspended minerals, or pipe scale can collect, solidify, and jam the valve mechanism. FlowBiz weir-type diaphragm valves feature a smooth, cavity-free internal path. The absence of internal dead spaces prevents particulate accumulation and makes it an excellent match for raw water, wastewater, and thick fluid applications.

4. Rigid Flanged Mechanical Stability

Outfitted with heavy-duty, precision-machined flanged ends matching ASME B16.5 parameters, these valves integrate cleanly into high-pressure water, oil, and gas networks. The flanged profile provides excellent structural rigidity, ensures an absolute leak-proof joint when paired with a premium gasket, and simplifies routine inline inspection or modular system upgrades.

Strategic High-Consequence Applications

FlowBiz PTFE-lined diaphragm valves are specified by project contractors and plant engineers across severe-service utility loops:

• Chemical Processing & Fertilizer Manufacture: Regulating and isolating highly concentrated acids, caustic alkalis, chlorinated compounds, and toxic process chemicals.

• Pharmaceutical & Biotech Infrastructure: Managing high-purity process water loops, bulk drug chemical synthesis lines, and clean utility headers requiring zero batch contamination risks.

• Industrial Wastewater & Acid Pickling Units: Safe handling of aggressive chemical effluents, toxic waste streams, and spent acid regeneration pipelines.

• Petrochemical Refineries: Boundary isolation for aggressive processing catalysts, sour water lines, and chemical injection manifolds.

Technical Guidance & B2B Procurement Support

Sourcing premium fluoropolymer-lined assets requires precise alignment between pipeline diameters, chemical concentrations, and operational temperature profiles. The FlowBiz technical desk in Mumbai provides end-to-end B2B support:

• Lining and Sizings Verification: Assisting engineering procurement teams in sizing selections from to 8 based on fluid velocity data and line constraints.

• Material Traceability Data: Delivering complete material test reports (MTRs), high-voltage electrostatic spark testing certifications (to ensure zero pinholes in the PTFE layer), and API 598 hydrostatic test sheets with every dispatch.

Frequently Asked Questions (FAQ)

Q: Why should an engineer specify a PTFE-lined diaphragm valve over a standard stainless steel ball valve for chemical processing?

A: Standard ball valves incorporate small internal body cavities surrounding the ball where fluid accumulates when the valve cycles. If the line handles raw water, municipal sewage, or storm runoff, sediments settle inside that cavity and harden over time, jamming the valve. A Sluice Gate Valve features a completely open, vertical pocket design. The closing wedge mechanically clears away sediment as it descends, preventing particle accumulation and making it the superior choice for dirty water networks.

Q: Can a PTFE-lined diaphragm valve be safely utilized in high-temperature utility steam headers?

A: While virgin PTFE boasts an impressive thermal operating range, a lined diaphragm valve should never be used in high-pressure, superheated steam headers. High-temperature steam under continuous pressure induces a phenomenon known as "fluoropolymer permeation" and thermal softening, which can compromise the lining bond and rupture the flexible elastomer diaphragm. For severe thermal steam utilities operating above 180C, FlowBiz Metal-Seated Carbon Steel Globe Valves are the mandatory industry choice.

Q: What is the purpose of the high-voltage electrostatic spark test conducted during manufacturing?

A: Even a microscopic pinhole or internal fracture inside a valve's PTFE lining can allow aggressive acids to slowly seep through, attacking and corroding the outer armored metallic casing from the inside out. To prevent this type of failure, FlowBiz subject 100% of our lined valves to a high-voltage electrostatic spark test (typically between 10 kV and 15 kV) before assembly. If any microscopic void exists, a visible spark arcs to the ground, allowing our quality controllers to isolate and reject the defective lining immediately.

Q: How do maintenance teams replace a worn diaphragm without unbolting the valve from the pipeline?

A: FlowBiz valves feature a practical top-entry design. When the internal rubber diaphragm eventually wears down after thousands of operational cycles, field technicians do not need to remove the entire valve from the line. Instead, simply isolate the pipeline pressure, unbolt the upper bonnet nuts, and lift the bonnet assembly away. The old diaphragm can be unhooked and replaced with a fresh component inline, minimizing facility downtime.

Q: How can project procurement managers and traders coordinate direct factory quotes from Mumbai?

A: Sourcing can be initiated by contacting our corporate sales division in Mumbai, India. Our application engineering division will guide you through a comprehensive technical consultationassessing your pipeline nominal sizing (1/2" to 8"), exact chemical concentrations, and operating temperature constraintsto deliver a certified technical submittal package and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing an aggressive chemical process loop or upgrading a high-purity pharmaceutical piping manifold? Contact our Mumbai sales and engineering office today to receive comprehensive technical sheets, dimensional blueprints, and an itemized commercial proposal.
