High-Performance PTFE Lined Ball Valves: Severe-Service Chemical Isolation and Design Standards

In modern chemical processing, pharmaceutical manufacturing, and corrosive fluid transport, managing highly aggressive mediasuch as concentrated hydrochloric acid, sulfuric acid, chlorinated solvents, and caustic alkalispresents a severe operational challenge. Standard metallic valves, even those fabricated from premium alloys, are prone to chemical pitting, stress corrosion cracking, and premature seal failure. This leads to toxic line leaks, product contamination, and costly, unscheduled plant shutdowns.

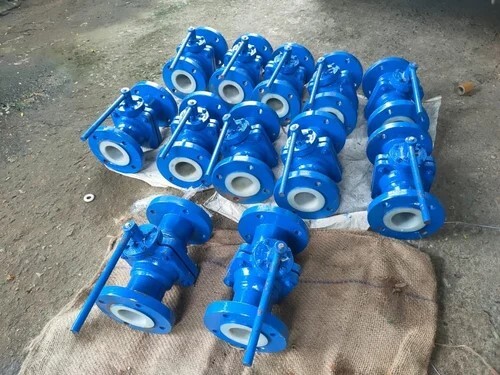

PTFE Lined Ball Valves offer a high-integrity defense against chemical degradation. By combining the pressure-bearing mechanical strength of a rugged metallic outer shell with the absolute chemical inertness of a thick fluoropolymer lining, these valves provide an impenetrable barrier against corrosive fluid attack while delivering quick-acting, quarter-turn isolation.

FlowBiz Export Private Limited is an elite global fluid-handling brand and a trusted PTFE Lined Ball Valve Manufacturer in Gandhidham, Gujarat, India. We specialize in precision engineering high-integrity quarter-turn valves designed to deliver bubble-tight isolation, zero cross-contamination, and exceptional thermal stability for the world's most demanding process loops.

Technical Specifications & Compliance Engineering

FlowBiz lined ball valves are precision-cast and lined in strict compliance with international pressure containment, testing, and face-to-face metrics.

Key Engineering Parameters

International Design & Testing Standards

• Design Criteria: Conforms to API 6D / BS EN 588 criteria.

• Inspection & Testing: 100% hydrostatically and pneumatically verified per API 598 and BS EN 12266.

• Safety Contingency: Engineered with a fire-safe design certified to API 607 and an anti-blowout proof stem mechanism.

Critical Engineering Features & Process Benefits

1. 3 mm Nominal Fluoropolymer Barrier

The 3 mm nominal PTFE, PFA, or FEP lining completely encapsulates all internal wetted surfaces of the metal body shell. Because these fluoropolymers are chemically inert to virtually all industrial compounds, the underlying metal casting is thoroughly isolated from the process stream. This absolute separation eliminates chemical corrosion and guarantees zero fluid contamination, making it ideal for high-purity applications.

2. High-Integrity Leak Prevention & Stem Security

To eliminate fugitive emissions of volatile organic compounds (VOCs) and toxic chemicals, FlowBiz incorporates heavy-duty PTFE chevron packing glands around the valve stem. Combined with a solid, full-port stainless steel ball compressed tightly against the polymer seats, this sealing matrix achieves an absolute Class VI bubble-tight shut-off (100\% leak-proof retention) up to pressures of 10 kg/cm (150 psi).

3. Safety-First Architecture: Fire-Safe & Blowout-Proof

In critical lines carrying volatile, flammable, or combustible hydrocarbons, safety is non-negotiable. Our valves feature a blowout-proof stem design that prevents internal pressure from ejecting the stem during dynamic pressure spikes. Furthermore, the API 607 fire-safe design ensures that if extreme fire conditions destroy the soft polymer seats, secondary metal-to-metal seating boundaries instantly engage to maintain mechanical fluid containment.

Strategic Industrial Application Scope

Our heavy-duty, quarter-turn lined ball valves provide vital protection across critical process and utility sectors:

• Chemical Processing & Fertilizers: Safely isolating transfer lines carrying hot acids, alkalis, strong reagents, and corrosive chemical formulations.

• Pharmaceutical & Bio-Tech Facilities: Managing high-purity chemical reactions and sanitization lines without risking batch cross-contamination.

• Water Treatment & Desalination Infrastructure: Handling aggressive chemical dosing loops, such as sodium hypochlorite, fluorides, and acid washes.

• Refineries & Power Stations: Controlling aggressive process water, sour gas lines, and hazardous utility loops up to 200C.

Frequently Asked Questions (FAQ)

Q: What is the primary operational advantage of choosing a full-port lined ball valve over other valve types?

A: A full-port lined ball valve features an internal bore diameter that matches the inside diameter of the surrounding pipeline. When fully opened, the valve creates a straight-through fluid path with zero profile restrictions. This minimizes localized fluid turbulence, eliminates line scale accumulation, and ensures a maximum flow coefficient (Cv) with a minimal pressure drop (Pressure Diffrence).

Q: How do you determine whether to choose a PTFE, FEP, or PFA liner for your process loop?

A: While all three polymers offer outstanding chemical resistance, their physical properties suit different system parameters:

• PTFE (Polytetrafluoroethylene): The primary standard for general chemical resistance and high-purity fluid loops across broad temperature scales.

• FEP (Fluorinated Ethylene Propylene): Excellent for identifying subtle fluid color shifts due to its high optical transparency, performing well at moderate temperatures.

• PFA (Perfluoroalkoxy): The premium choice for high-temperature applications up to 200C. PFA exhibits superior mechanical strength at elevated temperatures, providing excellent resistance to vacuum collapse and molecular vapor permeation.

Q: What is the step-by-step engineering process to order a customized flanged valve layout from Gandhidham?

A: Our local manufacturing facility in Gandhidham customizes assemblies to meet exact project layouts:

1. Parameter Submission: Sourcing teams provide their line dimensions, chosen ball metallurgy (SS304 or SS316), polymer preference, and desired flange standard (ANSI B16.5, DIN, or JIS).

2. Technical Configuration: FlowBiz engineers model the valve body thickness and trim geometries to match your pipeline footprint perfectly.

3. Rigorous Testing: The finished assemblies undergo high-voltage electrical spark testing to ensure lining continuity, followed by API 598 hydrostatic pressure sweeps before global export dispatch.

Q: What routine inspection steps are recommended to maintain a lined quarter-turn valve?

A: Because PTFE possesses natural self-lubricating properties, the operational friction between the ball and seat is exceptionally low, minimizing torque demands. Maintenance is straightforward, largely limited to regular visual verification of the external body joints and checking for smooth manual lever movement. During routine plant maintenance cycles, the chevron packing gland nuts can be slightly tightened if necessary to preserve a secure seal against atmospheric leakage.F
