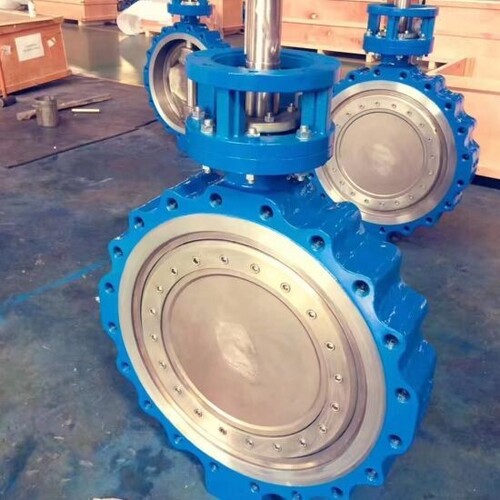

API 609 Model BOD Double Offset Fire-Safe Butterfly Valves

Welcome to FlowBiz Export Private Limited, a premier global manufacturing authority for automated fluid isolation, high-temperature gas containment, and certified fire-safe pipeline engineering. Operating an advanced pneumatic automation lab and precision machining foundry, we are India's leading manufacturer, supplier, and global exporter of high-integrity Pneumatic Actuated Double Offset Butterfly Valves (Model BOD).

With primary manufacturing and corporate logistics networks serving automated hubs like Gandhidham, Gujarat, our distribution footprint supplies critical processing zones across Indiaincluding Ahmedabad, Vapi, Valsad, Surat, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Pune, Thane, and Chennaibacked by fast-tracked maritime freight networks for rapid global project export.

Technical Specifications & Fire-Safe Compliance

FlowBiz Model BOD butterfly valves are engineered with a dual-offset eccentric disc geometry matching API 609 Category B design standards. By pairing a high-speed pneumatic actuator with a certified fire-safe seat profile, these valves achieve an ANSI Class VI bubble-tight shut-off for critical gas, utility air, and petrochemical lines under severe thermal exposure.

Core Engineering Features & Design Advantages

1. Cam-Action Double Offset Cam Geometry

Standard concentric butterfly valves suffer from continuous friction between the rubber liner and the rotating disc throughout the full 90 travel path, leading to rapid seal tearing in high-pressure lines. The FlowBiz Model BOD Valve incorporates two distinct offsets:

• First Offset: The shaft is displaced behind the plane of the sealing face.

• Second Offset: The shaft centerline is offset from the vertical centerline of the pipeline bore.

  This design creates a cam-action profile. The disc unseats instantly upon opening and makes contact only at the final point of closure, eliminating friction and tracking wear.

2. Certified API 607 Fire-Safe Sealing Architecture

For pipelines transporting flammable gases or chemical fluids, fire safety is non-negotiable. Our Model BOD features a hybrid seat structure: a primary resilient seat (TFM / RPTFE) handles standard processing conditions up to 220C to maintain an absolute ANSI Class VI leak-free shut-off. In the event of a plant fire that incinerates the soft polymer seals, a secondary precision-machined Inconel metal seat ring provides an interference backup seal against the stainless steel disc, preventing catastrophic downstream fuel feeding.

3. Integrated Pneumatic Automation & Manual Override

Each valve assembly is directly coupled to a high-precision pneumatic rack-and-pinion rotary actuator, engineered for rapid, automated open/close cycling or modulating positioner control via a 4 to 20 mA signal. To safeguard the facility against unexpected losses in instrument air pressure, the topworks feature an integrated declutchable manual handwheel gearbox override, enabling field technicians to manually stroke the valve during emergencies.

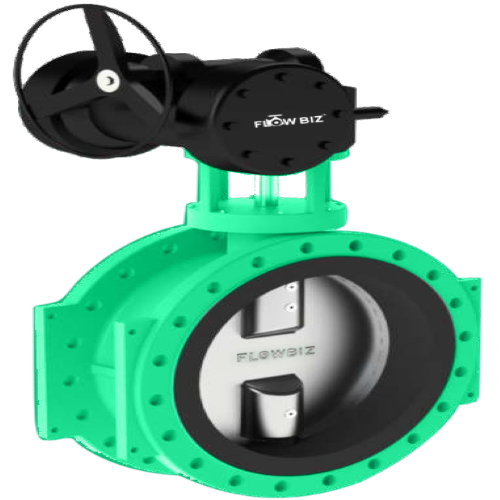

4. Rigid Double Flange Mechanical Stability

Outfitted with heavy-duty, precision-machined flanged ends matching ASME B16.5 parameters, these valves integrate cleanly into high-pressure water, oil, and gas networks. The flanged profile provides excellent structural rigidity, ensures an absolute leak-proof joint when paired with a premium gasket, and simplifies routine inline inspection or modular system upgrades.

Strategic Automated Process Applications

FlowBiz pneumatic Model BOD double offset valves are specified across high-velocity automated utility manifolds:

• Water Treatment & Filtration Plants: Automated high-frequency backwash sequencing loops, pump intake lines, and chemical purification manifolds.

• Industrial Gas Pipelines & Venting: High-speed emergency shutdown (ESD) boundaries for oxygen, nitrogen, compressed instrument air, and low-pressure hydrocarbon gases.

• Chemical Process Utilities: Automated temperature and level regulation lines managing non-reactive solvents, cooling tower loops, and industrial effluents.

• Power Plant Utility Infrastructure: Managing low-pressure auxiliary steam lines, cooling water intake systems, and boiler blowdown circuits up to 220C.

Frequently Asked Questions (FAQ)

Q: Why are high-performance double offset butterfly valves unavailable in sizes below 2.1/2 inches?

A: Small-bore pipelines (below 2) feature compact internal diameters. Because a butterfly valve's disc sits directly inside the middle of the fluid stream even when fully open, placing a disc and heavy-duty eccentric shaft inside a micro-bore line would restrict the internal cross-sectional area and cause extreme head loss. For pipelines below 2, FlowBiz Full-Bore Forged Steel Ball Valves or Globe Valves must be selected to maintain proper flow velocities.

Q: What is the mechanical difference between a Double-Acting and a Spring-Return pneumatic actuator?

A: Selection depends entirely on your process safety parameters:

• Double-Acting Actuators: Require continuous instrument air pressure to drive the valve open and separate air pressure to drive it closed. If plant air pressure fails, the valve will freeze in its last known position.

• Spring-Return (Fail-Safe) Actuators: Rely on air pressure to compress a heavy mechanical spring cartridge to open the valve. If air pressure drops unexpectedly, the internal springs instantly decompress, driving the valve into a safe closed (Fail-Closed) or open (Fail-Open) status to protect downstream assets.

Q: Why is carbon steel (WCB) or stainless steel preferred over cast iron for fire-safe valves?

A: Standard grey cast iron features a brittle crystalline microstructure. When subjected to the rapid thermal shocks and extreme heat of an industrial plant fire (which easily exceeds 700C to 1000C), cast iron casings are highly susceptible to cracking or suffering explosive mechanical failure under pressure. ASTM A216 WCB Carbon Steel and ASTM A351 CF8M Stainless Steel exhibit high ductility, tensile retention, and structural integrity at elevated temperatures, ensuring the valve safely contains internal pipeline pressures during a fire emergency.

Q: How do maintenance teams calibrate and service the pneumatic topworks inline?

A: The Model BOD features an ISO 5211 mounting pad that separates the pneumatic actuator from the fluid-retaining valve bonnet. If the pneumatic actuator, solenoid valve, or limit switch box requires routine electrical or seal maintenance, technicians can isolate the actuator's air supply, engage the declutchable manual gearbox to lock the pipeline position, and safely remove the pneumatic components for service without unbolting the valve body from the pressurized pipeline.

Q: How can project engineering and procurement teams in Gandhidham arrange a bulk purchase?

A: Sourcing can be initiated by contacting our dedicated corporate sales division in Gandhinagar/Gandhidham, India. Our application engineering division will guide you through a comprehensive technical consultationassessing your pipeline size requirements (2 to 48), required body metallurgy, seating elastomer codes, instrument air pressures, and accessory specifications (solenoid voltages, positioners)to deliver a certified technical submittal package and an itemized factory-direct commercial proposal.

Are you optimizing an automated water filtration matrix or upgrading a fire-safe gas distribution header? Contact our sales office today to receive complete technical data sheets, certified dimensional blueprints, and an itemized commercial proposal.
