Fluoropolymer-Lined Plug Valves FlowBiz Pune

Welcome to FlowBiz Export Private Limited, a certified global engineering authority for extreme chemical isolation, severe corrosion management, and fugitive emissions control. Operating an integrated manufacturing facility that includes precision high-alloy machining grids, advanced fluoropolymer lining laboratories, and automated hydrostatic compliance testing cells, we are India's premier manufacturer, supplier, and global B2B exporter of high-integrity PTFE/PFA-Lined Plug Valves.

Our specialized quarter-turn containment assets are engineered to act as reliable isolation switches or precise throttling dampeners in pipelines transporting highly aggressive liquids, corrosive gases, and hazardous chemical media. From our manufacturing and engineering headquarters in Pune, Maharashtra, we support heavy-duty process layouts across India's primary industrial corridorsincluding Pune, Mumbai, Thane, Nashik, Nagpur, Kolhapur, Ahmedabad, Vapi, and Suratalongside fast-tracked international B2B logistics for global project export.

Technical Specifications & Lining Compliance Matrix

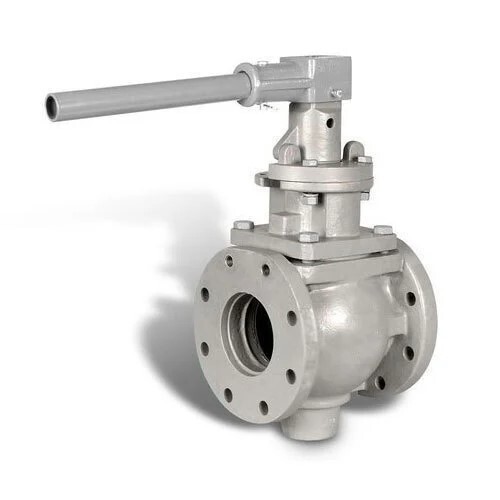

FlowBiz Lined Plug Valves feature a robust outer pressure-containment shell mechanically bonded with a thick, high-density fluoropolymer liner. The tapered or cylindrical plug design provides a smooth, cavity-free, straight-through flow track that eliminates the "dead zones" common in standard ball valves, ensuring zero chemical accumulation and uniform fluid velocity.

Core Engineering Features & Design Advantages

1. High-Voltage Electrostatic Spark-Tested Sealing Shield

Even a microscopic fracture, pinhole, or thin spot inside a molded fluoropolymer lining can allow aggressive acids to slowly seep through, attacking and corroding the outer metal body from the inside out. To prevent this type of catastrophic failure, FlowBiz subjects 100% of our lined valves to a high-voltage electrostatic spark test (calibrated up to 1015 kV). This rigorous quality assurance step ensures a completely continuous, non-porous chemical shield before assembly.

2. Cavity-Free, Self-Cleaning Linear Flow Track

Standard industrial ball valves incorporate large, hollow internal cavities surrounding the rotating ball element. When handling crystallizing chemicals, sticky polymers, or viscous oil residues, process media gets trapped in these dead zones, leading to clogging or mechanism binding. Our lined plug valves feature a cavity-free internal geometry. The wide sealing surface of the plug sweeps directly across the internal body walls during rotation, wiping away deposits and preventing sediment accumulation.

3. Complete Media Isolation and Zero Leakproof Performance

The thick35 mm fluoropolymer (PTFE/PFA) liner is dynamically anchored into machined retention grooves within the outer metallic casing. This prevents the lining from collapsing or pulling away from the body wall when exposed to full industrial vacuum line forces or sudden pressure drops. The continuous lining matrix completely isolates the process fluid from the body, bonnet, and external atmosphere, eliminating the need for a traditional stem packing gland and guaranteeing zero fugitive emissions.

4. Versatile Actuation and Custom Topworks Modules

Our flanged lined plug valves are engineered to function seamlessly as manual isolation units or integrated components within automated facility PLC and SCADA loops. The standardized mounting topworks support quick configuration with ergonomic Hand Levers, enclosed weather-proof Worm Gearboxes, double-acting Pneumatic Rack-and-Pinion Actuators, or high-torque Electric Motors, ensuring precise control regardless of system complexity.

Strategic Cross-Industry Applications

FlowBiz high-grade fluoropolymer-lined plug valves are specified across severe-service and high-purity processing grids:

• Chemical Synthesis & Processing Plants: Safe containment, throttling, and isolation of concentrated sulfuric, hydrochloric, phosphoric, and nitric acids, as well as volatile caustics.

• Industrial Water Treatment & Desalination: Demineralized water headers, chemical dosing skids, acid/alkali regeneration loops, and high-purity deionized water networks.

• Petrochemical, Oil, & Process Utilities: Managing corrosive process effluents, acidic water wash down systems, and chemical waste recovery manifolds.

• Heavy Manufacturing Facility Utilities: Direct regulation of high-purity water grids, aggressive wash down chemicals, and low-pressure utility gas headers.

Frequently Asked Questions (FAQ)

Q: Why do high-performance lined plug valves focus on a sizing range starting at 1/2 inch up to 12 inches?

A: Small-bore pipelines below (15 mm) feature narrow internal cross-sectional areas. Because a plug valve utilizes a robust metal plug core with a thick internal fluoropolymer lining layer, placing this assembly inside a micro-bore line would restrict the fluid path, creating an excessive restriction and severe pressure drop. For pipelines below 1/2", specialized micro-bore lined sampling valves are used, while our standard flanged lined plug design scales effectively all the way up to large-bore12 (300 mm) process headers.

Q: When should an engineer specify a PFA lining over a standard PTFE lining for a plug valve?

A: Selection depends on your system's operating temperature, pressure profile, and fluid properties:

• PTFE Lining: Offers excellent chemical resistance and very low operational friction, making it ideal for high-purity water, aggressive acids, and general chemical process loops operating under standard medium pressures and temperatures up to +150C.

• PFA (Perfluoroalkoxy) Lining: Features superior mechanical melt strength and vacuum collapse resistance. PFA is preferred for systems subject to high thermal gradients (up to +200C), high differential pressures, thermal cycling, or deep vacuum environments where a standard PTFE liner might pucker or deform.

Q: What is the primary structural benefit of a flange-type connection on a lined plug valve?

A: Lined plug valves carry a thick internal plastic lining that forms a structural face across the flanged ends. A Flange-Type Connection matching ASME B16.5 allows the valve to bolt directly to companion pipe flanges. This configuration distributes bolt torque evenly across the sealing face without over-compressing or tearing the plastic lining material, providing a secure, leak-free metal-to-metal connection profile that simplifies future inline maintenance.

Q: How does the cavity-free design of a plug valve help reduce plant operating costs?

A: In standard ball valves, the open space between the ball and the valve body traps fluid every time the valve cycles. Over time, chemicals break down, crystallize, or corrode the internal mechanism, leading to premature valve failure and high maintenance costs. The FlowBiz cavity-free plug design features no internal pockets. The process fluid moves cleanly through the open port without settling, which eliminates chemical cross-contamination, reduces maintenance overhead, and extends the valve's operational lifespan.

Q: How can project procurement managers and engineers in Pune coordinate factory-direct quotes?

A: Sourcing can be initiated by contacting our corporate sales division in Pune, Maharashtra. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise nominal pipeline diameters (12), preferred outer shell metallurgy (Cast Steel vs. Stainless Steel), exact chemical concentration and temperature variation profiles, and automated actuation requirementsto deliver a certified product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing an aggressive chemical process loop or upgrading an industrial wastewater treatment manifold? Contact our Pune sales and engineering office today to receive complete technical data sheets, certified dimensional blueprints, and an itemized commercial proposal.
