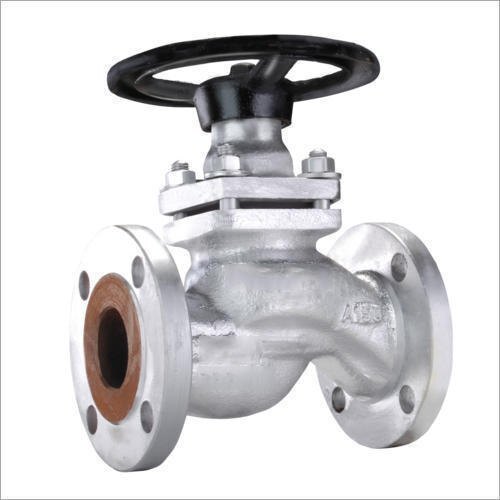

Industrial Piston Valves: High-Integrity On/Off Fluid Control, Engineering, and Specifications

In demanding utility linesespecially those carrying high-pressure steam, gases, and thermal fluidsconventional isolation valves often suffer from rapid seat erosion, wire-drawing, and chronic passing. A Piston Valve presents a highly robust, glandless solution designed to eliminate these failure modes. Utilizing the linear travel of a precision-ground piston through a set of resilient, flexible sealing rings, these valves achieve a bubble-tight, drop-tight shut-off that thrives in severe services that would quickly destroy standard seating materials.

FlowBiz Exports Pvt. Ltd. is a premier global brand and a trusted Piston Valve Manufacturer in Kheda, Gujarat, India. We design, engineer, and supply high-performance piston valves tailored to handle aggressive industrial media, preventing costly system downtime and reducing emission leaks.

Technical Overview & Operating Principle

The primary function of a piston valve is to provide definitive on/off regulation and positive isolation. Unlike standard globe valves that rely on a disc pressing down onto a flat seat, a piston valve operates on a plug-and-bushing style mechanism.

       [ Handwheel / Actuator ]

                   (Linear Motion)

           Cylinder /
    Upper Ring
  Inlet    PISTON     Outlet
           Lower Ring


• The Sealing Mechanism: As the handwheel is turned, the linear movement of the piston drives it through two resilient, flexible sealing rings (an upper and a lower ring) separated by a lantern bushing.

• The Glandless Advantage: When closed, the piston blocks the flow path completely, pressing tightly against the large surface area of the rings. This dual-ring sealing architecture provides a massive seal area compared to line-contact seats, rendering the valve virtually maintenance-free and highly resistant to pipeline scale or debris.

Technical Specifications & Parameters

Every FlowBiz piston valve is built to meet severe industrial service ratings, ensuring mechanical stability under fluctuating thermal and pressure conditions.

Key Advantages of FlowBiz Piston Valves

1. Superior Defenses Against Seat Wear

Standard valves experience rapid seating degradation when cycling fluids that carry entrained solids or create high-velocity wire-drawing effects. Because the piston slides smoothly through the sealing rings rather than impacting them vertically, the critical sealing surfaces are completely isolated from the direct erosive path of the fluid flow.

2. Premium Stainless Steel 304 Internals

By utilizing high-grade SS 304 for the piston and internal trim, our valves maintain a perfectly smooth surface finish over years of operation. This eliminates the risk of internal pitting, rusting, or binding, ensuring low operating torque and consistent, bubble-tight sealing at high temperatures up to 200C.

3. Fully Customized Port Engineering

To integrate seamlessly into your existing or planned piping manifolds without forcing costly piping adjustments, FlowBiz provides customized port sizing. Our engineering division works directly with your process criteria to manufacture valves that match your exact flow coefficients and dimensional requirements.

Critical Application Environments

• Steam and Condensate Networks: Resisting thermal shock and wire-drawing in high-pressure steam distribution headers and condensate recovery lines.

• Chemical & Petrochemical Processing: Ensuring leak-proof isolation of volatile organic compounds, solvents, and process gases.

• Refineries & Power Stations: Functioning reliably as high-integrity main line isolation or bypass valves.

• Nuclear and Industrial Water Utilities: Serving as primary and backup isolation barriers where absolute shut-off integrity is safety-critical.

Frequently Asked Questions (FAQ)

Q: When should an engineer choose a manual piston valve over a standard gate or globe valve?

A: A piston valve should be chosen when the process fluid causes excessive seat wear, or when zero-leakage atmospheric emission controls are mandatory. It is highly preferred in saturated steam, superheated water, and thermal oil loops where standard gland packing materials regularly dry out, leak, or require frequent torque adjustments.

Q: How does the SS 304 piston benefit water and steam applications?

A: Stainless Steel 304 delivers outstanding mechanical strength and chemical stability. In steam systems up to 200C, it prevents scaling and thermal distortion. This smooth, rust-proof finish allows the piston to glide past the sealing rings without tearing or abrading the sealing material, maximizing the maintenance intervals of the valve assembly.

Q: What is the procurement and customization process from your Kheda facility?

A: The ordering workflow is engineered for speed and precision. Clients share their specific operational parametersincluding line size, media composition, maximum pressure, and temperature profile. Our Kheda-based engineering team drafts and fabricates the valve to these exact specifications. Following rigorous seat and body pressure-integrity checks, the custom valves are packed and dispatched through our global supply and export network.
