API 609 Sanitary Stainless Steel Pharma Butterfly Valves FlowBiz Gandhinagar

Welcome to FlowBiz Export Private Limited, a globally trusted engineering authority for sterile fluid management, high-purity isolation, and cavity-free pharmaceutical processing infrastructure. Operating advanced metallurgical foundries, high-precision CNC machining bays, and certified ultra-clean testing facilities in Gandhinagar and Ahmedabad, Gujarat, we stand as India's premier manufacturer, supplier, and global B2B exporter of industrial Pharma Butterfly Valves.

Each butterfly valve is designed to meet the rigorous demands of pharmaceutical processes. Engineered specifically to eliminate dead legs, crevice corrosion, and product entrapment, our sanitary rotary assets provide absolute containment and clean-in-place (CIP) compatibility. From our primary production and technology headquarters in Gandhinagar, we seamlessly support critical processing networks across India's key industrial hubsincluding Ahmedabad, Vapi, Valsad, Surat, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur, Indore, Dewas, Bhopal, Chennai, Coimbatore, and Salembacked by fast-tracked logistics for direct international project export.

Technical Specifications & Compliance Parameters

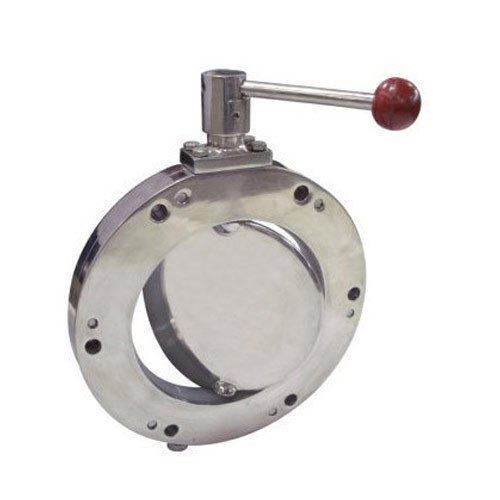

FlowBiz Pharma Butterfly Valves utilize a mirror-polished rotary disc that seats against an FDA-compliant elastomeric profile. The streamlined, quarter-turn mechanism allows for quick operation, minimal line pressure drop, and exceptional cleaning access, making it preeminent for sensitive production lines.

Core Engineering Features & Design Advantages

1. Premium Stainless Steel Construction & Sterile Geometry

To deliver superior engineering for pharma applications, our valves are constructed from premium robust stainless steel (such as low-carbon SS316L). This high-purity metallurgy provides exceptional resistance to corrosion from aggressive sanitizing chemicals, clean steam, and organic solvents. The smooth silver finish body design resists environmental wear, supports strict hygiene standards, and facilitates effortless external washdowns.

2. Mirror-Polished, Cavity-Free Fluid Passageway

Standard utility valves feature cast surfaces and deep internal recesses where stagnant process media can collect, spoil, and foster bacterial biofilms. FlowBiz sanitary valves undergo rigorous mechanical internal polishing to achieve an ultra-smooth finish (Ra 0.4 m). This pocket-free profile ensures that fluid flows through cleanly, leaving zero dead zones for batch cross-contamination or product entrapment.

3. Flexible Connection Options for Modular Piping

To accommodate various structural layout and installation requirements, our valves are available with wafer, lug, and flanged connections, as well as hygienic quick-connect tri-clamp profiles. This flexibility ensures seamless integration into existing piping systems, whether they are newly designed modular processing skids or part of ongoing facility process upgrades, ensuring a secure and leak-proof connection every time.

4. Tactile Manual Control for Sensitive Operations

Equipped with an ergonomic, multi-position sanitary handle, the manual operation allows precise control over flow and is highly reliable. It requires no external electrical lines or compressed air utilities, eliminating instrumentation calibration concerns and reducing total system cost. Manual levers provide operators with immediate, tactile feedbackideal for environments where hands-on process oversight and absolute system security are critical.

Strategic High-Purity Applications

FlowBiz high-performance pharma butterfly valves promote process safety and maintain product purity across primary utility lines:

• Pharmaceutical Batch Manufacturing: Controlled fluid transfer of active pharmaceutical ingredients (APIs), fine chemical feeds, and liquid vaccine cultures.

• WFI & Pure Water Distribution: Sectional isolation within Water-for-Injection (WFI) loops, purified water (PW) storage grids, and sterile filtration lines.

• Clean Utility Management Systems: Regulating clean steam inputs, sterile nitrogen (N2) blanketing lines, and high-purity utility air feeds.

• Biotech & Cosmetic Formulation Loops: Mixing and isolation channels for delicate biological elements, viscous cosmetic blends, and sanitary chemical inputs.

Frequently Asked Questions (FAQ)

Q: How do I select the appropriate size of a butterfly valve for my pharma application?

A: To choose the correct size, consider the required fluid flow rate, pipeline dimensions, and operating pressure. Our valves are available in sizes from 1/2" to 16", fitting a wide range of pharmaceutical system requirements. If you need engineering assistance, our technical application team can evaluate your process fluid velocity, viscosity, and flow coefficient (Cv) to identify the best size based on your specific process parameters.

Q: When should a butterfly valve be chosen over a standard diaphragm or ball valve in a pharma system?

A: Butterfly valves are ideal when you require a compact valve design for tight spaces, quick shut-off, and moderate pressure handling. While diaphragm valves are excellent for micro-metering very small lines, they are heavy and highly expensive in large sizes. Standard ball valves contain internal cavities that trap stagnant fluid behind the seats, which ruins product purity. A pharma butterfly valve provides a high-capacity, pocket-free full flow downstream with a narrow face-to-face footprint, making them particularly beneficial in systems with frequent operation or where minimal pressure drop is desired.

Q: What is the recommended method for installing and cleaning these valves in-line?

A: Installation is straightforward, especially with our wafer, lug, or flanged connection options. Field crews must ensure companion piping is perfectly aligned and clean before mounting. Thanks to the ultra-smooth internal mirror finish and FDA-approved elastomeric seals (such as EPDM or Viton), our valves support full Clean-in-Place (CIP) and Sterilize-in-Place (SIP) cycles. This allows technicians to flush the valve thoroughly with hot sanitizing fluids or clean steam without taking the pipeline apart, minimizing operational downtime.

Q: Does FlowBiz provide complete material traceability and international export compliance?

A: Yes. As an experienced exporter, manufacturer, supplier, and trader based in Gandhinagar, India, we serve customers nationwide and globally. We ensure safe and prompt shipment to your location, backed by complete documentation. Every pharma valve is supplied with comprehensive quality certificates, including EN 10204 3.1 Material Traceability, FDA Elastomer Compliance Reports, and certified hydrostatic test records, ensuring full compliance with international pharmaceutical industry standards.

Q: How can project procurement managers and engineers coordinate a direct factory quote?

A: Sourcing can be initiated by contacting our corporate sales and engineering division in Gandhinagar or our central headquarters in Ahmedabad, Gujarat. Our technical experts will guide you through a complete consultationassessing your explicit sizing criteria (1/2"to 16"), target pressure variables, required connection profile, and specific media traitsto deliver a certified technical product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a high-purity Water-for-Injection loop or upgrading a sterile batch formulation manifold? Contact our Gandhinagar sales and engineering office today to guide your project forward, or ask a specific question regarding your pipeline configuration below.
