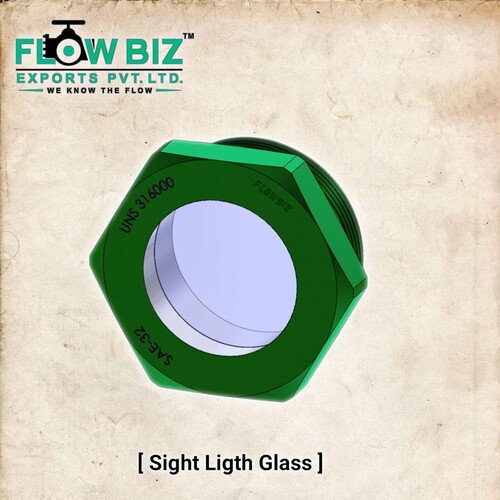

Industrial Sight Glasses: Mechanical Stress Isolation and Engineering Standards

In high-pressure pipeline networks, chemical reactors, and industrial process vessels, maintaining immediate visual access to internal media dynamics is essential for operational safety. Plant operators rely on viewports to verify process stages, inspect fluid clarity, track color transitions, and monitor liquid levels.

While structurally straightforward, an industrial Sight Glass (also called a sight window or viewport) is a highly engineered pressure boundary component. It must be designed to withstand severe process variablesincluding chemical corrosion, physical impacts, steep thermal gradients, and mechanical pipeline stresses.

If a viewport is subjected to unmitigated pipeline expansion or machinery vibrations, the glass element can experience mechanical stress concentrations, leading to premature cracking or catastrophic blowout. To prevent these failures, high-performance sight glasses incorporate a floating mechanical design that isolates the transparent viewing pipe from external pipeline forces.

                     Mechanical Stress Isolation Layout



                        Upstream Pipe Flange

                                    (Rigid Tie-Rod Structural Framework)
         [ Gasket Seal ]    [ Gasket Seal ]
         [ Isolates Disc ]      SS 304 Disc /        [ Absorbs Line Shocks ]
                              Borosilicate Glass

                                    (Vibration & Torque Bypasses Glass Core)

                       Downstream Pipe Flange


FlowBiz Exports is an elite global fluid-handling brand and a premier Sight Glass Manufacturer in Navsari, Gujarat, India. We precision-engineer rugged, high-thermal-strength sight glasses designed to deliver absolute leak-proof containment, high vibration damping, and clear process visibility across demanding global processing industries.

Technical Specifications & Performance Limits

FlowBiz sight glasses are manufactured, machined, and structurally verified to comply with strict international pressure vessel and piping alignment standards.

Core Product Configuration Matrix

Critical Engineering Features & Process Benefits

1. Tie-Rod Shock Absorption & Vibration Damping

Under normal operation, pipelines experience significant thermal expansion, hydraulic pressure surges, and structural vibrations from upstream centrifugal pumps. If these forces push directly against a glass viewing tube, the rigid material can easily fracture. FlowBiz addresses this vulnerability by welding the metal section of the housing directly to an external system of heavy flanges and structural tie rods. This framework absorbs external pipeline torque, vibrations, and mechanical stresses, bypassing the glass pipe section to ensure operator safety.

2. High Corrosion Resistance & Material Durability

Internal components, such as the support discs, are fabricated from premium SS 304 stainless steel. This alloy provides excellent mechanical strength and a high-purity finish that resists corrosion across a wide chemical envelope. This robust construction prevents material degradation and scale buildup inside the viewport, maintaining product purity and preventing localized leaks.

3. Simple Manual Monitoring & Zero-Power Operation

Operating as a purely mechanical inspection instrument, a manual sight glass requires no electrical hookups, wiring runs, or complex digital instrumentation. Operators can safely audit fluid continuity, color shifts, and turbidity visually in real time. This manual design simplifies installation footprints, reduces maintenance requirements, and ensures reliable monitoring in hazardous or remote facility zones.

                       Process Integration Portfolio



                   Flexible Process Vessel Integration




 [ Direct Pipeline Lines ]  [ Chemical Storage Tanks ] [ Distillation Towers ]
 (Flow Tracking & Clarity)  (Liquid Level Verification) (Phase Transition Audits)

Strategic System & Industrial Applications

Our high-temperature, stress-isolated sight glasses are deployed across major industrial sectors to provide real-time process monitoring:

• Chemical & Petrochemical Processing: Visually auditing raw chemical flows, acidic media lines, and solvent transparency up to 200C.

• Petroleum Refineries & Oil Headers: Monitoring oil-water separation lines, fuel blending circuits, and hydrocarbon transfer headers.

• Power Generation & Utility Circuits: Positioned along boiler feed pipelines, cooling loops, and high-temperature water lines.

• Nuclear Power Operations: Installed on critical auxiliary loops where manual verification of fluid movement is required.

• Water Treatment & Desalination Facilities: Providing continuous inspection windows along high-volume intake headers and chemical dosing circuits.

Pan-India Supply Capabilities & Distribution Network

Operating advanced precision-machining production centers from our flagship industrial hubs, FlowBiz manages an expansive supply, distribution, and trade matrix to service all major manufacturing corridors and chemical zones in India:

• Gujarat Logistics: Navsari, Rajkot, Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch.

• Maharashtra Corridors: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur.

• Central & Southern India Hubs: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and global export markets.

Frequently Asked Questions (FAQ)

Q: Why is the use of an SS 304 disc critical for sight glass longevity in chemical streams?

A: Standard metals oxidize and corrode quickly when exposed to industrial fluids like water or hot chemical blends. This corrosion causes surface pitting, which can weaken the pressure boundary and release hazardous fluid sprays. SS 304 stainless steel features a dense chromium-nickel matrix that naturally forms a passive, self-healing oxide layer. This layer prevents chemical attack, protects the pressure shell from environmental wear, and extends the service life of the viewport in harsh outdoor configurations.

Q: What specific technical conditions indicate that a glass disc or tube needs replacement?

A: Maintenance teams should visually audit inspection windows during routine facility walk-throughs. A glass element should be scheduled for immediate replacement if it shows any signs of structural cracking, edge chipping, surface scoring, deep chemical etching, or internal clouding that reduces transparency. Replacing worn glass elements early prevents sudden pressure failures and maintains a safe operating environment.

Q: How do customized port dimensions improve retrofitting efficiency in existing skids?

A: Modernizing older processing skids often presents space constraints or non-standard pipe connections. FlowBiz addresses this challenge by providing fully customizable port sizes and connection layouts. Whether your system requires specific flange faces, unique dimensional lengths, or custom diameters, our engineering team can tailor the outer housing to match your infrastructure perfectly, eliminating the need for expensive piping modifications or adapters.

Q: At what stage of project execution should industrial sight glasses be installed?

A: Sight glasses should be installed during system commissioning or whenever visual confirmation of fluid properties becomes essential for process control. During initial pipeline assembly, technicians must ensure that the adjacent pipe flanges are correctly aligned and that the flange bolts are torqued evenly against the gaskets. This uniform compression establishes a flat, leak-proof seal without introducing asymmetric stresses to the internal borosilicate viewing cylinder.
