API 609 Spherical Disc Butterfly Valves FlowBiz Pune

Welcome to FlowBiz Export Private Limited, an established engineering authority for heavy-duty pipeline automation, high-capacity industrial fluid control, and critical isolation systems. Operating state-of-the-art manufacturing infrastructureincluding in-house valve machining cells, heavy-duty assembly lines, advanced engineering design studios, and high-pressure hydrostatic testing bayswe are India's leading manufacturer, supplier, and global B2B exporter of high-integrity Spherical Disc Butterfly Valves.

Our high-performance quarter-turn valves are engineered to deliver reliable, long-cycle fluid modulation and bubble-tight isolation across major processing networks. From our manufacturing and engineering hub in Pune, Maharashtra, we seamlessly support critical infrastructure and industrial projects nationwideincluding Pune, Mumbai, Thane, Nashik, Nagpur, Kolhapur, Ahmedabad, Vapi, and Suratbacked by fast-tracked domestic logistics and global maritime freight channels for rapid international project export.

Technical Specifications & Global Compliance Matrix

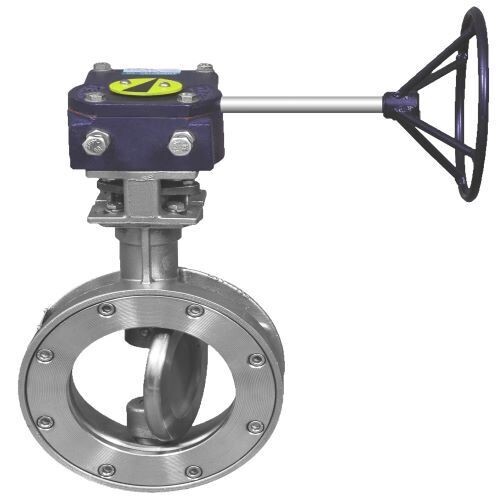

FlowBiz Spherical Disc Butterfly Valves are engineered in strict accordance with major international design codes. Featuring a precision-machined, contoured spherical disc edge, these valves minimize seat friction and wear during cycling, making them a dependable choice for managing water, oil, and gas media under medium-pressure conditions.

Core Engineering Features & Design Advantages

1. Low-Torque Spherical Disc Profile

Standard concentric butterfly valves subject their seats to continuous scraping friction across the entire 90 travel path, leading to rapid seal wear and high operating torque. The FlowBiz design features a precision-machined spherical disc edge that mimics a ball valve profile. This contoured geometry allows the disc to slide smoothly into and out of the soft seat with minimal friction, reducing manual operating torque, lowering actuator sizing costs, and extending seat service life.

2. High-Performance PTFE and GFT Sealing Technology

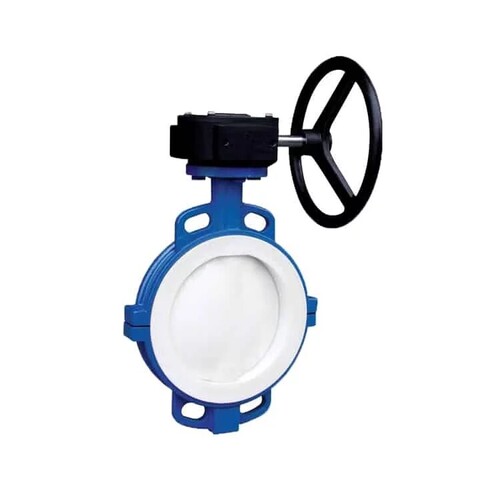

To deliver consistent bubble-tight shut-off across diverse chemical and utility applications, our valves utilize advanced polymer seating matrices. Options include virgin PTFE for superior chemical inertness and low friction, or Glass-Filled Teflon (GFT) for applications requiring extra resistance to mechanical wear and thermal deformation. The lip-seal configuration uses line pressure to mechanically energize the seal against the spherical disc, minimizing inline leakage.

3. Complete In-House Engineering and Testing Infrastructure

Every FlowBiz valve is produced inside our integrated facility, which covers the entire manufacturing process from initial 3D CAD design and precision CNC machining to final assembly and inspection. Our testing cells subject 100% of our production to rigorous hydrostatic and pneumatic pressure testing matching API 598 parameters. This guarantees that every valve shipped to your site complies with international safety and performance standards.

4. Versatile End Connections and Actuation Topworks

Our valves offer flexible connection options to adapt to various pipeline layouts and maintenance preferences:

• Wafer Profile: A slim, lightweight profile that clamps between companion pipe flanges, making it ideal for space-constrained installations.

• Lug Profile: Features independent threaded casings matching the pipe bolt circle, enabling dead-end isolation service for downstream maintenance.

• Butt Weld Ends: Weld directly into high-vibration or high-integrity pipelines, completely eliminating flange joints and the risk of external gasket leaks.

All bodies are designed with standardized mounting pads to facilitate manual hand lever, enclosed worm gear, pneumatic cylinder, or electric motor automation.

Strategic Industrial Processing Applications

FlowBiz high-capacity spherical disc butterfly valves are specified across primary processing and utility loops:

• Chemical Processing & Refineries: Safe regulation and isolation of aggressive chemical reagents, industrial wash solvents, and volatile gas lines.

• Water Treatment & Facility Utilities: High-volume raw water intake lines, industrial reverse osmosis networks, sludge handling manifolds, and municipal wastewater filtration loops.

• Petrochemical, Oil, & Gas Lines: Secondary process loops, low-viscosity hydrocarbon fuel handling, and storage tank boundary isolation.

• Heavy Manufacturing Plant Utilities: High-capacity cooling tower loops, condenser water lines, heat exchanger feeds, and centralized compressed air manifolds.

Frequently Asked Questions (FAQ)

Q: Why do high-performance spherical disc butterfly valves focus on a sizing range from 50 mm up to 1000 mm?

A: Pipelines below 50 mm (2") feature very narrow internal cross-sectional areas. Because a butterfly valve's disc sits directly inside the middle of the fluid stream even when fully open, putting a disc and heavy-duty shaft assembly inside a micro-bore line would restrict the fluid path and cause massive head loss. For pipelines below 50 mm, compact FlowBiz Forged Steel Ball Valves or Globe Valves are specified to preserve proper fluid velocity and pressure profiles, while the spherical butterfly design scales effectively all the way up to large-bore 1000 mm (40") trunk lines.

Q: When is GFT (Glass-Filled Teflon) specified over virgin PTFE for the valve seat?

A: Selection depends entirely on your process operating temperature, pressure profile, and fluid properties:

• Virgin PTFE Seats: Provide excellent chemical resistance and very low operational friction, making them ideal for high-purity water, aggressive chemicals, and general utility loops operating under standard medium pressures.

• Glass-Filled Teflon (GFT) Seats: Are reinforced with glass fibers, which increases the material's mechanical strength, reduces cold flow deformation, and enhances wear resistance. This makes GFT the preferred choice for higher pressure differentials, thermal cycling, or fluids carrying mild micro-abrasive particulates.

Q: What is the primary benefit of selecting a Butt Weld connection type over a Wafer or Lug style?

A: Wafer and Lug style valves offer straightforward installation and easy removal for routine maintenance, but they rely on bolted companion flanges and compression gaskets that can pucker, degrade, or leak over time when exposed to severe pipeline vibrations or high thermal gradients. A Butt Weld Connection involves welding the valve body directly into the pipeline. This configuration eliminates gaskets and flanges entirely, providing a permanent, leak-proof joint that is ideal for high-vibration systems or critical applications where fugitive emissions must be prevented.

Q: How does the spherical disc design help reduce long-term plant operating costs?

A: In standard butterfly valves, the flat disc edge rubs tightly against the elastomer liner throughout its entire rotational path, causing the seal to wear, tear, and experience compression set within a few hundred cycles. The FlowBiz spherical disc geometry features a smooth, rounded edge that rolls into the seat rather than scraping it. This minimizes friction-induced tearing and drastically extends the service life of the valve. It also lowers the required operating torque, allowing you to use smaller, more cost-effective actuator packages.

Q: How can project engineering and procurement teams in Pune coordinate a bulk factory quote?

A: Sourcing can be initiated by contacting our corporate sales division in Pune, Maharashtra. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise nominal pipeline diameters (50 mm to 1000 mm), preferred body metallurgy (WCB/CF8M), target pressure constraints, chemical properties of the process media, and automated actuation needsto deliver a certified technical submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you designing a high-capacity water distribution network or upgrading an automated chemical process manifold? Contact our Pune sales and engineering office today to receive comprehensive technical sheets, certified structural layouts, and an itemized commercial proposal.
