Industrial Sight Glasses: High-Clarity Inline Fluid Observation and Technical Standards

In continuous-process pipeline networks, operators must be able to visually verify fluid conditions without interrupting the system's volumetric flow. Whether managing liquid chemical transfers, steam condensate lines, or pharmaceutical batches, hands-free inspection is essential for auditing fluid clarity, monitoring color changes, and detecting unwanted aeration or line blockages.

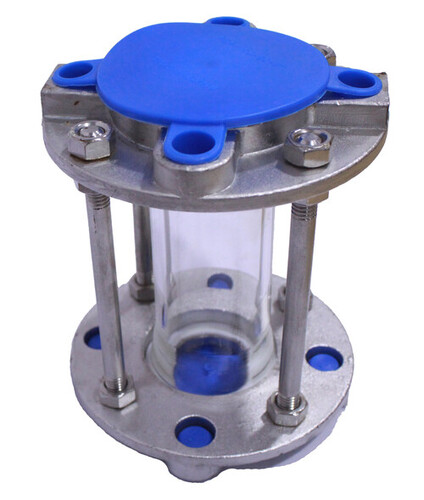

An industrial Sight Glass (or sight flow indicator) provides a highly reliable window directly into the process pipeline. By pairing a robust, pressure-bearing outer metallic or polymer frame with a high-strength, transparent window, these components allow for real-time visual tracking of gases, vapors, and liquids while maintaining a secure, leak-proof pressure boundary.

                  Double-Window Inline Configuration


        [ Flange End ]  [ Borosilicate Window ]  [ Flange End ]
        (Body Material)       (Real-Time Inspection)     (Body Material)

FlowBiz Exports is a premier global fluid-handling brand and a trusted Sight Glass Manufacturer in Patan, Gujarat, India. We specialize in designing and fabricating high-integrity inspection windows and inline indicators, engineered to meet stringent global processing metrics and deliver exceptional optical transparency.

Technical Specifications & Component Architecture

FlowBiz Sight Glasses are manufactured from premium raw materials and designed in strict accordance with international pressure containment and connection codes.

Core Engineering Matrix

Critical Engineering Features & Operational Benefits

1. High-Clarity Borosilicate Glass Window

Industrial visual auditing under fluctuating process temperatures demands reliable glass engineering. FlowBiz utilizes premium, toughened borosilicate glass that features an exceptionally low coefficient of thermal expansion. This material provides enhanced transparency for precision monitoring, resists surface scratching, and withstands thermal shock without shattering, protecting field technicians from hazardous media exposure.

2. Flexible Structural Shapes & Materials

To accommodate diverse industrial inspection windows and space limitations, our sight glasses can be custom-molded into round or rectangular profiles. Material selection is tailored directly to your process chemistry:

• SS 304 & SS 316: Provide superior mechanical strength and premium resistance to chemical corrosion or high-purity oxidation.

• Mild Steel (MS): Offers an economical, heavy-duty pressure boundary for non-aggressive utility headers.

• Polypropylene (PP): Delivers excellent chemical compatibility for low-temperature, aggressive acid or chlor-alkali dosing lines.

3. High-Integrity Leak Prevention & Easy Maintenance

Achieving a leak-proof and corrosion-resistant operation in aggressive chemical environments requires high-performance sealing. By compressing premium PTFE or graphite gaskets uniformly against the borosilicate window, the assembly prevents fugitive emissions and internal fluid bypass. The mechanical layout is engineered for effortless maintenance, allowing for quick glass replacement without requiring full pipeline disassembly.

Strategic System & Industrial Applications

Our inline sight glasses provide real-time visual control across a broad range of demanding environments:

• Chemical Processing Plants: Auditing the movement of raw chemical feeds, aggressive acids, solvents, and liquid reagents.

• Pharmaceutical Production Lines: Ensuring strict quality compliance and contamination-free, hands-free monitoring of high-purity fluid loops.

• Food & Beverage Processing Facilities: Providing highly transparent, sanitary observation windows for liquid handling and ingredient blending.

• Refineries & Power Utilities: Tracking steam condensate return paths, lubrication oil headers, and vapor lines.

Supply Capability & Export Logistics

Operating from our advanced technical hub in Patan, Gujarat, India, FlowBiz coordinates a highly responsive production and supply network. We provide optimized valuations for both high-volume domestic projects and international procurement:

Global Shipment Logistics: Finished orders undergo prompt processing and are dispatched via FOB shipment from India's major maritime and air ports. Every unit is securely packed and backed by validated product performance certificates, satisfying rigorous international standard audits.

Frequently Asked Questions (FAQ)

Q: What factors dictate whether an engineer should choose a round versus a rectangular sight glass?

A: The selection depends primarily on the design of your equipment and the type of visual monitoring required:

• Round Sight Glasses: The standard configuration for inline pipe installations and circular pressure vessels. Their symmetrical geometry distributes mechanical bolt stress evenly, making them ideal for high-pressure lines.

• Rectangular Sight Glasses: Typically installed on the sidewalls of large processing tanks, blenders, reactors, and columns. They provide an elongated vertical view, allowing operators to monitor changing fluid levels, foaming actions, or separation layers over a wider area.

Q: Why is a high-clarity borosilicate window preferred over standard soda-lime glass?

A: Standard soda-lime glass is highly susceptible to thermal stress and can crack or shatter when subjected to sudden temperature changes (such as a cold chemical clean-in-place flush following a hot process batch). Borosilicate glass contains boron trioxide, which gives it outstanding thermal resilience and chemical resistance. It maintains optical clarity over long service periods and will not cloud, leach, or degrade when exposed to aggressive industrial fluids.

Q: What connection styles are available, and how do they affect pipeline mounting?

A: FlowBiz manufactures sight glasses with flanged, threaded, or socket welded connections to ensure smooth integration into any piping footprint. The units are structurally balanced to function reliably in both vertical and horizontal mounting configurations. When installing flanged or threaded units, technicians simply align the sight glass inline with the pipeline flow arrow to enable manual inspection from the most accessible viewing angle.

Q: What is the streamlined process for requesting a quote and initiating order checkout?

A: Procurement teams can submit their specific system variables directly to our engineering divisionincluding line sizes, target body materials (SS 304, SS 316, MS, or PP), temperature criteria, and preferred connection standards (ANSI, DIN, or BS). Our Patan-based facility processes your inquiry promptly, providing a detailed technical assessment and direct factory valuation for an efficient, hassle-free transaction.
