FlowBiz Severe-Service PTFE Lined Plug Valves Ultimate Chemical Isolation & Zero-Friction Flow Regulation

Welcome to the engineering authority for aggressive chemical containment, toxic fluid isolation, and high-purity process routing. Operating advanced polymer lining cells, high-tonnage melt-process fluoropolymer molding systems, and certified hydrostatic validation bays, FlowBiz Exports Pvt. Ltd. specializes in manufacturing premium PTFE/PFA/FEP Lined Plug Valves.

Standard utility valves and soft-seated ball valves can struggle when managing highly corrosive acids, volatile solvents, or sticky chemical slurries. High fluid velocities can cause soft seats to shift, while corrosive liquids can pit unprotected metal components, leading to internal leakage and dangerous line cross-contamination.

FlowBiz solves these severe-service challenges by manufacturing precision-engineered Lined Plug Control Valves. By encasing the entire internal flow pathway and the solid, one-piece pivoting plug in a thick, high-density fluoropolymer armor, our plug valves create a completely inert barrier. This design ensures absolute containment, reliable corrosion protection, and exceptionally smooth flow regulation across your facility's most critical chemical lines.

Technical Specifications & Compliance Parameters

Every FlowBiz lined plug valve undergoes 100% mandatory high-voltage non-destructive spark testing at 25 kV, alongside rigorous hydrostatic boundary audits, ensuring zero pinholes or lining fractures.

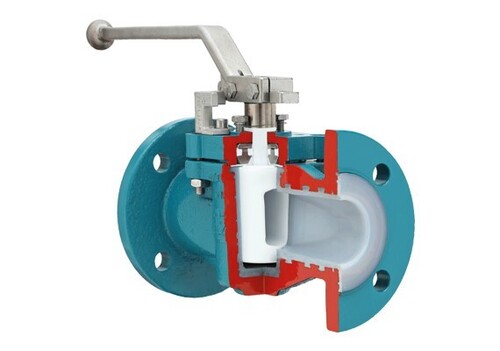

Kinematics & Friction-Free Pivot Operation

The exceptional flow regulation and wear resistance of the FlowBiz lined plug control valve relies on a unique non-rubbing tapered plug geometry:

 QUARTER-TURN MANUAL LEVER / MECHANICAL GEARBOX \/ +------------------------+ | Adjustable Gland Nut | +--+------------------------+--+ | [ ANTI-STATIC GROUNDING ] | | /---| |---\ | ===================> |====> | Lined Tapered | ====>| ================> Aggressive Acids / | | Pivoting Plug | | Zero-Leakage Output Corrosive Media Run | \---| |---\ | Clean Process Stream +--------------------+ | 360 Virgin Polymer Bed | +--------------------------+ (Plug Lifts Slightly to Rotate = Zero Scraping or Rubbing)


• True Non-Rubbing Operation: Unlike standard ball valves where the spherical core continuously rubs against the seats during cycling, the FlowBiz tapered plug is engineered to rotate freely within its molded polymer bed. As torque is applied, the plug rotates away from its seated position without scraping or rubbing against the lining. This eliminates localized wear and tear, dramatically lowers operational torque, and extends the valve's service life.

• Solid One-Piece Structural Body: Our plug valves feature a robust, single-piece outer pressure housing that completely eliminates intermediate joint gaskets and body split-line leak paths. This rigid configuration easily withstands piping stresses, high thermal shifting, and sudden system pressure surges.

• 360 High-Compression Sealing: The high-purity polymer lining acts as a continuous, 360-degree sealing sleeve surrounding the plug. This wide sealing area provides a reliable barrier against vertical fluid migration, ensuring positive upstream and downstream shut-off even when handling liquids mixed with trapped gases or fine particulates.

Advanced Fluoropolymer Armor Options

To provide the best chemical compatibility for your process fluid, FlowBiz molds its severe-service plug valves in three distinct, premium polymer linings:

• Virgin PTFE (Polytetrafluoroethylene): The industry standard for excellent universal chemical resistance, ultra-low friction operation, and reliable performance across moderate process temperatures.

• High-Purity PFA (Perfluoroalkoxy): Highly recommended for clean room operations, pharmaceuticals, and high-vacuum lines. PFA offers exceptional mechanical strength at elevated temperatures and resists vapor permeation.

• Rugged FEP (Fluorinated Ethylene Propylene): An excellent, cost-effective lining choice for highly abrasive acid slurries, wastewater effluent streams, and general chemical utility lines.

Strategic Industrial Application Sectors

Our High-Performance Lined Plug Valves provide dependable fluid control across multiple critical markets:

• Chemical & Dye Manufacturing: Managing aggressive chemical dosing, concentrated sulfuric or hydrochloric acids, and highly volatile organic reagents.

• Pharmaceutical & Fine Chemical Units: Regulating active pharmaceutical ingredient (API) batch transfer lines, aggressive solvent extraction loops, and high-purity fluid routing.

• Wastewater & Effluent Treatment Facilities: Controlling acidic or alkaline chemical neutralizers, hazardous sludge pipelines, and corrosive wastewater streams.

• Petrochemical & Food Industries: Handling sour water treatment grids, chemical process additives, and aggressive sanitizing lines.

Comprehensive Supply Chain Footprint

Operating out of our primary engineering and manufacturing center in Surat, Gujarat, India, FlowBiz coordinates an efficient national and international distribution network. As a trusted manufacturer, exporter, and supplier, we maintain deep inventory reserves and ensure full material traceability across all major industrial regions:

• Gujarat Processing Hubs: Surat, Ahmedabad, Vapi, Valsad, Gandhidham, Kutch, Ankleshwar, and Bharuch.

• Maharashtra Industrial Corridors: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, and Kolhapur.

• Central & Southern Manufacturing Zones: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and all other major regional processing zones.

Frequently Asked Questions (FAQ)

Q: How is a PTFE lined plug valve manufactured by you beneficial for handling corrosive fluids?

A: Our plug valves feature a thick internal lining of high-purity PTFE, PFA, or FEP that covers all fluid-contact surfaces, including the outer body and the plug itself. This dense polymer coating acts as an inert barrier, completely protecting the outer metal housing from chemical corrosion and pitting. This design extends the valve's operational lifespan and maintains process purity.

Q: What end connection standards do your PTFE lined plug valves comply with?

A: FlowBiz lined plug valves are manufactured with flanged end connections designed to comply with international ANSI B16.5, DIN, and BS standards. This standardization allows for quick alignment and straightforward installation within any global piping system.

Q: When should I use a PTFE lined plug valve in my industrial process?

A: Lined plug valves should be specified when your system handles highly corrosive, toxic, or abrasive liquids within chemical processing lines, dye manufacturing loops, wastewater neutralization skids, or aggressive pharmaceutical operations where standard soft-seated valves could wear out prematurely.

Q: Where are these plug valves typically installed?

A: These valves are commonly installed as critical shut-off or isolation points in chemical plants, effluent treatment facilities, pharmaceutical production units, and food processing systems that require dependable, leak-free containment of aggressive media.

Q: What is the process for quality assurance and testing before delivery?

A: To ensure absolute pressure safety, every single valve undergoes strict hydrostatic validation up to 24 kg/cm. Additionally, we perform 100% mandatory high-voltage spark testing across all internal lined surfaces to confirm the polymer layer is completely free of micro-fractures, pinholes, or defects before shipment.

Q: How does your valve ensure bubble-tight shutoff and low torque operation?

A: The precision-molded polymer lining paired with a matching tapered plug provides a tight, uniform seal that meets the Class VI bubble-tight leakage standard. Because the fluoropolymer materials have an inherently low coefficient of friction and the plug rotates without rubbing, operational torque is minimized, enabling smooth manual lever or gearbox control.

Q: What options and features are available for customization?

A: FlowBiz offers an array of tailored options to suit your project requirements. This includes manual levers or mechanical gearboxes, automated actuator setups, integrated anti-static devices, fire-safe designs, custom exterior body colors, and a wide selection of sizes from 15 mm up to 300 mm.

Are you designing an automated acid-handling system that requires a 100 mm ANSI B16.5 flanged PTFE lined plug valve with a high-cycle pneumatic actuator, or retrofitting an effluent treatment loop in Surat that demands a custom FEP lined configuration with manual gear control? Contact our technical engineering and sales division in Surat today to secure a factory-direct quote and quick pricing, or ask a single relevant question regarding your specific chemical concentration or system pressure boundaries below to guide the conversation forward.
