Industrial Sight Glasses: Performance Typologies, Visual Inspection Dynamics, and Sealing Standards

In continuous-process pipeline grids, storage vessels, and distillation systems, maintaining immediate, real-time visual inspection over internal media dynamics is a vital operational safeguard. Process engineers and operators must be able to visually audit flow velocity, confirm fluid continuity, detect turbulence or phase separation, and inspect liquid clarity or color shifting. Doing so allows facilities to prevent premature product contamination, monitor fluid levels, and isolate pipeline fouling without breaching the main pressure boundary.

An industrial Sight Glass (alternatively called an inspection window, viewport, or sight flow indicator) functions as a highly engineered structural pressure shell containing a high-durability transparent window. While conceptually direct, these components are precision-fabricated to balance high optical clarity with mechanical resistance to thermal shock, high pressure containment (Pmax up to 10 Bar), physical impact, and localized chemical attack.

                      Sight Glass Fluid Monitoring


     [ Fluid Input ]   [ Engineered Glass Core ]   [ Fluid Output ]
    (Liquids/Gas/Steam)    (High Thermal Shock Res.)       (Asset Verification)

                                        (PTFE/Viton Leakproof Boundary)

                           [ High-Clarity Inspection ]

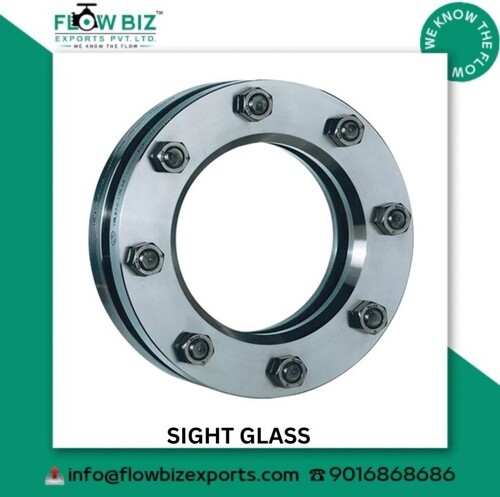

FlowBiz Export Pvt. Ltd. is an elite global fluid-handling brand and the premier Sight Glass Manufacturer in India. Operating high-precision production centers, we engineer a broad portfolio of industrial sight glassesspanning tubular, reflex, transparent, and double-window configurationsdesigned to deliver zero-leakage security, exceptional physical durability, and uninterrupted process transparency.

Technical Specifications & Compliance Parameters

FlowBiz sight glasses are manufactured, machined, and hydrostatically verified to satisfy strict international design criteria and global engineering standards, including ASME, DIN, and BS.

Core Engineering Parameter Profile

Design Typologies & Mechanical Configurations

Selecting the correct sight glass profile depends heavily on your system's fluid media type, pressure rating, and the specific monitoring objective (level tracking vs. full-bore flow inspection).

1. Tubular Sight Glass (Full-View Indicator)

Tubular configurations utilize a high-quality borosilicate glass cylinder enclosed within a protective metallic tie-rod frame. This architecture provides a complete, 360-degree panoramic view of the passing fluid stream, making it highly effective for observing fluid color, turbulence, or entrained gas bubbles in low-to-medium pressure pipelines.

2. Reflex Sight Glass (Level Gauge Profile)

Reflex indicators incorporate a specialized prism glass element featuring precision-molded longitudinal grooves on its process-facing side. When light strikes the window, it is fully absorbed by the liquid phase but reflected sharply by the gas phase. This visual contrast creates a sharp, dark-versus-light line that allows operators to read liquid levels quickly from a distance.

3. Transparent Sight Glass

Transparent glasses utilize two completely smooth, flat toughened glass plates mounted on opposite sides of a heavy metal housing. This straight-through design allows light to enter from behind the process stream, providing maximum optical clarity. It is the preferred arrangement for tracking fluid interfaces, monitoring phase transitions, or observing dark, viscous media.

4. Double Window Sight Glass

Double window indicators feature two separate glass panes divided by a central body and heavy-duty gaskets, forming an extra-secure containment boundary. By isolating the mechanical pipe stresses within the outer frame, this structural layout handles fluctuating pressure profiles and thermal shocks up to 200C exceptionally well, making it ideal for severe-service utility loops.

Critical Engineering Features & Process Benefits

1. High-Performance Borosilicate Glass Elements

Standard commercial glass possesses a high coefficient of thermal expansion, making it highly vulnerable to catastrophic fracturing when subjected to rapid temperature changes. FlowBiz builds its viewports exclusively with high-quality borosilicate and heat-treated toughened glass. These elements feature high resistance to thermal shock up to 200C, high optical clarity, and structural durability under continuous operating loads.

2. High-Integrity Zero-Leakage Sealing Matrix

Escaping process fluids can contaminate product batches, create environmental compliance risks, and endanger field personnel. FlowBiz achieves an absolute zero leakage guarantee by using a high-integrity gasket system. By custom-matching premium PTFE, Viton, or EPDM gaskets to your pipeline's fluid chemistry, our sealing system maintains a drop-tight pressure boundary across liquids, gases, and steam lines up to 10 Bar.

                      Sealing Element Selection Matrix



               Custom Fluid Chemistry Gasket Profiling




  [ PTFE Gaskets ]           [ Viton Seals ]            [ EPDM Gaskets ]
 (Aggressive Chemicals,     (Volatile Hydrocarbons,    (Standard Water, Oils,
  Acids, & Solvents)         High-Temp Gas Lines)       Ambient Utility Loops)

3. Simplified Maintenance and Drop-In Replacement

Over extended service campaigns, aggressive chemical etching or abrasive particulate friction can cloud, scratch, or pit the glass surface, limiting internal visibility. To avoid replacing the entire metallic housing, FlowBiz sight glasses are engineered for straightforward inline maintenance. Replacement glass discs and tubes are readily available, allowing field technicians to complete quick swaps, preserve process safety, and minimize facility downtime.

Pan-India Supply Capabilities & Distribution Network

Operating an extensive production, distribution, and trading infrastructure, FlowBiz ensures rapid dispatch, project engineering consultations, and comprehensive after-sales field support across all major industrial manufacturing zones, chemical corridors, and shipping ports in India:

• Gujarat Logistics: Surat, Ahmedabad, Vapi, Valsad, Gandhidham, Kutch, Ankleshwar, Bharuch.

• Maharashtra Corridors: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur.

• Central & Southern India Hubs: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and global export channels.

Frequently Asked Questions (FAQ)

Q: What primary factors should an engineer evaluate to choose the correct sight glass type?

A: Selection is driven by four core process parameters:

1. Media Trait Profile: Liquid clarity, viscosity, and chemical abrasiveness dictate whether you require a tubular full-view model, a reflex prism model, or a transparent style.

2. System Pressure & Temperature: Ensure your target choice safely matches or exceeds continuous limits up to 10 Bar and 200C.

3. Mounting Orientation: Verify whether the line runs horizontally or vertically to position the window for optimal visibility.

4. Connection Interface: Match the end connection style (such as flanged drilling per ASME/DIN, threaded, or socket weld) to your existing pipe configuration to ensure a seamless drop-in fit.

Q: Why is an exterior powder-coated or polished finish necessary for a metallic sight glass body?

A: Processing plants often expose piping components to external moisture, atmospheric humidity, and corrosive chemical vapors. Unprotected cast iron or carbon steel shells can experience outer rust and material thinning over time. FlowBiz applies a durable powder-coated or precision-polished finish to the outer metal housing. This treatment blocks atmospheric corrosion, protects the pressure shell from environmental wear, and extends the service life of the viewport in outdoor or offshore configurations.

Q: What specific visual indicators indicate that a glass tube or disc needs to be replaced?

A: Maintenance teams should regularly inspect the inspection window during routine facility walk-throughs. The glass disc or tube should be slated for immediate replacement if you notice any structural cracks, edge chipping, internal clouding, deep chemical etching, or surface scoring. Replacing worn glass elements early prevents structural failures, maintains high optical clarity, and preserves a leak-proof containment boundary.

Q: How does a zero leakage guarantee improve overall plant performance and safety?

A: In hazardous chemical processing, volatile refining, or ultra-pure pharmaceutical synthesis, even a minor micro-leak can lead to severe issues, such as product cross-contamination, fugitive environmental emissions, or fire hazards. Our zero leakage guarantee ensures that the process media remains completely contained within the piping network. This stability maintains consistent system pressure, protects surrounding facility machinery from corrosive spray, and ensures a safe operating environment for plant personnel.
