Industrial PTFE-Lined Y-Type Strainers: Advanced Chemical Filtration and Engineering Standards

In demanding fluid handling and process engineering, shielding downstream assetssuch as multi-stage centrifugal pumps, flowmeters, heat exchangers, and precise control valvesfrom suspended particulates is crucial. Foreign debris like pipeline scale, rust, and mineral crystals can quickly score internal pump impellers or clog tight valve orifices. However, standard bare-metal strainers degrade rapidly when exposed to highly aggressive media like hot concentrated acids, caustic alkalis, and reactive solvents.

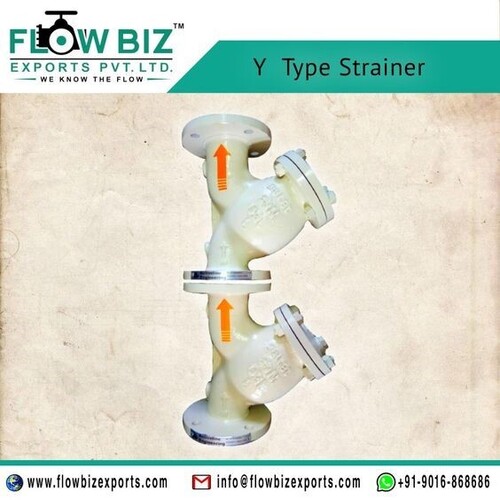

An industrial PTFE-Lined Y-Type Strainer provides a high-integrity solution. By taking a robust, pressure-bearing outer cast body shell and completely encapsulating its internal wetted filtration chamber with a thick, uniform lining of PTFE (Polytetrafluoroethylene), all wetted surfaces become completely inert. This configuration pairs the mechanical strength of cast iron, brass, or structural carbon steel with the near-total corrosion resistance of fluoropolymers, removing debris from liquid or gas streams without risking chemical breakdown or body thinning.

                         Inline Y-Pattern Configuration


 [ Fluid Input ]    [ Fluid Output ]
                       \   PTFE-Lined Chamber    /        (Clean Media Out)
                        \  SS304/316 Filter     /
                         \    Mesh Screen      /



                     [ Blow-down Leg ]   [ Filter Cover / Cap ]

FlowBiz Export Private Limited is a premier industrial fluid-handling brand and a leading PTFE-Lined Y-Type Strainer Manufacturer based in Pune (Maharashtra) and Gandhidham (Gujarat), India. We precision-engineer heavy-duty, inline fluoropolymer-lined filtration systems designed to deliver safe particulate removal and asset protection for critical process headers worldwide.

Technical Specifications & Product Parameters

FlowBiz Y-type strainers are cast and fabricated in strict accordance with international pressure containment and connection codes, enabling smooth drop-in integration.

Core Engineering Matrix

Critical Engineering Features & Operational Benefits

1. Superior Chemical Inertness & Zero Contamination

The thick PTFE lining acts as an impenetrable physical shield that prevents aggressive or hazardous chemicals from coming into contact with the strainer's metal body shell. Because PTFE possesses a universally non-reactive molecular structure, it resists chemical degradation from strong acids, solvents, and oxidizers. This total separation eliminates corrosion, extends the strainer's operating lifecycle, and ensures the absolute purity of the process fluid.

2. High Thermal Stability & Non-Stick Flow Profiles

Supported internally by high-strength SS 304 or SS 316 discs and screens, these strainers maintain absolute dimensional stability under continuous temperature loads up to 200C. The natural non-stick characteristics of the internal Teflon lining prevent scale accumulation, mineral crystallization, and product fouling along the chamber boundaries. This ensures low fluid turbulence and an optimized flow path with a minimal pressure drop (P).

3. Simplified Manual Maintenance & Tailored Sizing

The manual configuration of the Y-strainer body allows for straightforward, routine cleaning. Field operators can quickly remove the slanted filter leg cover cap, access the internal mesh screen, clear out collected debris, and re-secure the assembly inline, minimizing plant downtime. To eliminate piping offsets or adapters, port sizes can be custom-tailored during fabrication to match your precise facility footprint.

Strategic System & Industrial Applications

Our ASME/DIN-compliant lined Y-strainers are positioned immediately upstream of high-value equipment across diverse sectors:

• Chemical & Fertilizer Production Plants: Filtering suspended solids out of raw chemical feeds, concentrated acids, ammonia streams, and corrosive mixtures.

• Petroleum Refineries & Petrochemical Units: Managing aggressive chemical wash loops, industrial wastewater, and process water headers.

• Power Generation & Nuclear Stations: Protecting cooling loops, chemical dosing lines, and auxiliary water loops up to 200C.

• Pharmaceutical Processing Facilities: Providing high-purity, contamination-free particulate filtration in sterile utility headers.

Frequently Asked Questions (FAQ)

Q: Why should an engineer install a PTFE-lined Y-strainer instead of a standard metallic alloy strainer?

A: Standard high-grade metal alloys, such as bare stainless steel, can experience severe localized pitting, stress corrosion cracking, or chemical leaching when exposed to highly aggressive chemicals like hot hydrochloric or hydrofluoric acids. A PTFE-Lined Y-Strainer provides an impenetrable barrier that isolates the underlying metal, offering superior protection at a lower cost than exotic metals while ensuring a long, leak-proof operating life.

Q: What is the correct piping orientation for installing a Y-type strainer?

A: Y-type strainers must be installed inline with the flow direction arrow cast onto the body pointing toward the downstream side. They can be mounted in horizontal pipelines or in vertical pipelines with a downward flow path. In both setups, the slanted filter leg pocket must point downward. This ensures that gravity naturally draws captured debris into the collection pocket, preventing solids from falling back into the main pipeline stream during maintenance.

Q: What is the technical workflow for ordering custom port configurations from your facilities?

A: Our production hubs streamline custom orders to match your exact pipeline footprint:

1. Parameter Submission: Sourcing teams provide their operational criteria, including line sizes (up to 24" or larger), base casting metallurgy (SS, brass, or cast iron), and connection style (flange, screw, or butt weld).

2. Precision Manufacturing: Our engineering team models the internal chamber dimensions and customizes the port sizing to ensure a perfect match.

3. Quality Validation: The finished strainers undergo thorough hydraulic, pressure, and electrical spark checks to verify lining integrity before being cleared for domestic supply or global export.

Q: How can plant operators easily determine when the internal screen requires cleaning?

A: Operators can easily monitor screen clogging by checking the differential pressure (P) across the strainer using inline pressure gauges. A clean mesh element shows a minimal pressure variance. As captured debris fills the filter basket, it restricts the internal flow path, causing the upstream line pressure to rise. A distinct pressure variance indicates that it is time to open the lower cover cap and flush the screen.
