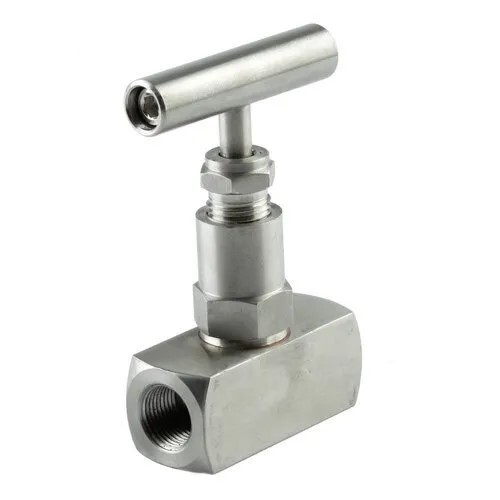

About Industrial Needle Valve Supplier in Pune India

High-Precision Industrial Stainless Steel Needle Valves FlowBiz Pune

Welcome to FlowBiz Export Private Limited, a certified manufacturing authority for high-precision instrumentation, micro-metered fluid regulation, and high-pressure chemical isolation infrastructure. Operating state-of-the-art precision machining complexes, multi-axis CNC cells, and certified cleanroom testing bays in Pune, Maharashtra, we stand as India's premier manufacturer, supplier, and global B2B exporter of industrial Stainless Steel Needle Valves.

Our industrial needle valves are engineered explicitly to provide smooth throttling, reliable isolation, and low-friction flow regulation of aggressive chemicals, compressed air, and process gases. From our advanced production hub in Pune, we combine local engineering expertise with global technical standards to support processing networks across India's key industrial corridorsincluding Mumbai, Thane, Nashik, Aurangabad, Nagpur, Kolhapur, Satara, Sangli, Ahmedabad, Surat, and Vapibacked by fast-tracked global logistics for direct international project export.

Technical Specifications & Compliance Parameters

FlowBiz Needle Valves utilize an engineered internal structure featuring a fine-threaded stem and a non-rotating trim layout. As the operator turns the handle, the stem moves linearly to guide a tapered needle plug precisely into a machined internal seat orifice. This design provides exceptionally fine control over fluid volume and system line pressure while completely avoiding sudden fluid surges.

Engineering Parameter	Certified Product Specifications & Compliance Codes
Design Standards	Fully compliant with ASME B16.34, BS 7116, and MSS SP-99
Testing Standards	100% factory-tested hydrostatically and pneumatically to API 598
Sealing Security	Certified ASME B16.104 Leakage Class VI (Bubble-Tight Shut-Off)
Fire Safety Rating	API 607 and BS 6755 Part 2 compliance (Available on specific request)
Wetted Process Media	Precision engineering for Chemical, Gas, and Hazardous Fluids
Body Metallurgy Arrays	Premium Stainless Steel (SS316 / SS316L / SS304) & Exotic Alloys
Stem & Spindle Design	Rolled, burnished threads with a backseat stop for blowout prevention
Sealing Trim Layout	Non-rotating trim enabling self-centering of spindle with orifice
Standard Packaging	High-Purity PTFE packing standard (Graphoil optional for high temperatures)
End Connection Interface	Secure, robust Flange-Type Connections or Screwed NPT/BSP
Operating Hardware	Low-Torque, ergonomic T-Bar Handle with a standard bonnet locking pin

Core Engineering Features & Design Advantages

1. Hardened Non-Rotating Trim Matrix

In standard needle valves, a rotating needle tip grinds directly into the metal seat orifice during closure, causing deep scoring, seat deformation, and premature inline leakage. The FlowBiz design features a specialized non-rotating trim enabling self-centering of the spindle with the orifice. Because the needle tip moves linearly without spinning as it meets the seat, it drops perfectly into place to provide a repeatable, bubble-tight shut-off while significantly extending the valve's working life.

2. High-Strength Rolled Stems with Blowout Prevention

To handle high-pressure line fatigue, our valve stems undergo precision rolling and burnishing at the packing area. This process work-hardens the stainless steel, reduces packing friction, and eliminates stem binding. For maximum plant safety, the internal spindle is engineered with a backseat stop for blowout prevention. This safety mechanism physically prevents the stem from displacing under extreme pressure surges if the packing nut is adjusted while online.

3. Double-Secured Bonnet Assembly for Volatile Gases

When handling high-pressure compressed air or volatile gases, structural vibrations can cause standard valve bonnets to slowly unthread, resulting in dangerous external leaks. Every FlowBiz valve includes a standard bonnet locking pin that locks the bonnet tightly to the body shell. This mechanical lock prevents accidental unthreading during operation or maintenance, ensuring total containment safety for gaseous and aggressive fluid services.

4. Rugged Flange Connection and Adjustable Topworks

While small instrumentation valves often rely on threaded joints, our industrial line features robust flange-type connections that ensure a secure, leak-proof, and robust joint. The topworks are designed with an externally adjustable gland, allowing maintenance crews to easily tighten the packing seals over time without pulling the valve out of the line. Each unit is fitted with a protective dust cap to prevent contaminants, moisture, and ambient plant grit from entering the moving hardware.

Strategic Cross-Industry Applications

FlowBiz high-performance industrial needle valves are specified across primary instrumentation paths:

• Chemical Handling & Processing Arrays: Micro-metered dosing lines for aggressive acids, chemical injection skids, sampling loops, and volatile solvent panels.

• Gas Handling & Gas Processing Infrastructure: High-pressure nitrogen gas distribution grids, oxygen headers, central utility air lines, and specialized laboratory gas manifolds.

• Refinery & Petrochemical Manifolds: Pressure gauge isolation manifolds, chromatograph sample lines, and high-pressure analytical testing loops.

• Severe-Service High-Temperature Utilities: High-pressure steam testing vents and severe thermal oil loops using optional Stellited trim and Graphoil packing designed for up to 360

Frequently Asked Questions (FAQ)

Q: Why is a flange-type connection preferred for a needle valve in chemical process lines?

A: Standard threaded connections are vulnerable to crevice corrosion, structural vibration loosening, and bypass leaks under thermal cycling. A Flange-Type Connection creates a solid mechanical joint that bolts directly onto matching pipeline flanges. This flange design distributes pipeline stresses evenly, simplifies inline gasket changes, and eliminates external leak paths, making it ideal for high-pressure chemical and gas handling applications where safety is critical.

Q: What is the benefit of the optional angled version of the needle valve?

A: In tight facility layouts and complex instrumentation panels, routing pipelines through a 90-degree bend requires extra fittings, which increases installation costs and potential leak points. Our angled version needle valve changes the internal flow path by 90 degrees, allowing it to serve as both a high-precision flow regulator and a compact elbow joint. This simplifies your pipeline layout and lowers overall project hardware costs.

Q: When should an engineer specify Graphoil packing over standard PTFE?

A: Standard PTFE packing provides excellent chemical resistance and low operating torque for standard chemical lines up to 180C. However, if your system involves high-temperature thermal oils, superheated steam, or severe chemical refining loops that exceed these limits, optional Graphoil packing is required. Graphoil maintains its structural sealing elasticity at temperatures up to 360C, providing complete protection against fugitive emissions in high-temperature environments.

Q: Can these industrial needle valves be supplied with custom material selections?

A: Yes. To ensure absolute chemical compatibility with aggressive fluids, FlowBiz needle valves can be supplied with various materials of construction (MOC) for the body, stem, trim, and glands. While high-grade SS316/SS316L is our standard for excellent corrosion resistance, we routinely manufacture these assets using Monel, Hastelloy, Duplex Stainless Steel, and Titanium to match your specific chemical processing requirements.

Q: How can project procurement managers and engineers coordinate factory-direct quotes?

A: Sourcing can be initiated by contacting our corporate sales and engineering division in Pune, Maharashtra. Our technical staff will guide you through a comprehensive consultationassessing your precise sizing requirements, target operating pressure boundaries, exact chemical or gas media properties, temperature thresholds, and preferred end connectionsto deliver a certified technical product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a high-pressure chemical dosing loop or upgrading an industrial facility process gas manifold? Contact our Pune sales and engineering office today to guide your project forward, or ask a specific question regarding your pipeline alignment below.
