AWWA C-504 Large-Bore MS Fabricated Butterfly Valves FlowBiz Vadodara

Welcome to FlowBiz Export Private Limited, an established engineering authority for large-scale fluid dynamics, industrial water transmission, and custom-fabricated pipeline isolation networks. Operating high-capacity structural fabrication yards, heavy-duty multi-axis CNC machining complexes, and advanced hydrostatic testing cells in Vadodara and Ahmedabad, Gujarat, we stand as India's premier manufacturer, supplier, and global B2B exporter of industrial Mild Steel (MS) Fabricated Double Flange Butterfly Valves.

Our heavy-engineered, fabricated quarter-turn assets are designed to provide tight structural shut-off and reliable throttling across large-diameter water transmission lines, cooling tower networks, and industrial utility grids. From our primary fabrication facilities in Vadodara, we support infrastructure projects across India's core industrial corridorsincluding Ahmedabad, Rajkot, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur, Indore, Dewas, Bhopal, Chennai, Coimbatore, and Salembacked by overland and deep-water maritime logistics for direct project export worldwide.

Technical Specifications & Compliance Parameters

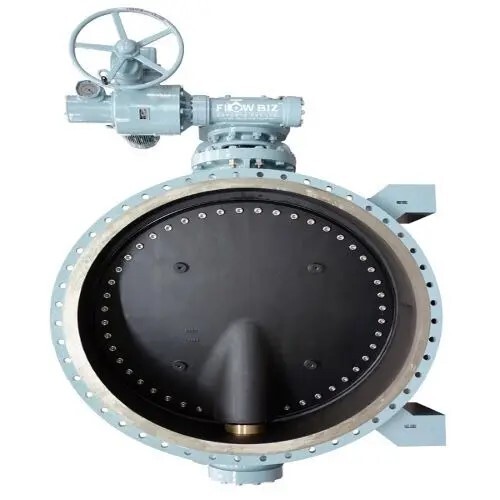

FlowBiz Fabricated Butterfly Valves are built for heavy-duty systems, utilizing a robust circular body housing a centered disc that rotates 90 degrees around a high-tensile drive shaft. To accommodate large system capacities without the weight penalties and casting defects of traditional cast valves, our valve bodies and discs are precision-welded from structurally verified structural steel plates.

Core Engineering Features & Design Advantages

1. Custom Fabricated Structural MS Construction

Unlike standard cast iron valves that are vulnerable to hidden porosity and shifting wall thicknesses during casting, our valve bodies and discs are meticulously crafted from solid IS 2062 Gr. B Mild Steel plates. This custom fabrication process provides uniform structural thickness, high structural impact strength, and excellent elasticity under physical pipeline layout loads. This makes the valve highly reliable for large-scale utility, chemical, and oil systems.

2. High-Capacity Sizing and Lightweight Geometry

Standard cast valves in large sizes become extremely heavy, requiring specialized pipe hangers, heavy concrete foundations, and complicated installation rigging. The FlowBiz fabricated steel design offers a lightweight, thin profile body with a short face-to-face dimension that greatly reduces overall weight while keeping high mechanical strength. This makes handling simple and prevents pipe bending fatigue in large pipelines.

3. Replaceable Resilient Elastomeric Soft Seats

To guarantee a tight seal under shifting pressure fields, our discs are paired with high-performance EPDM, NBR, or Viton soft seat profiles. This elastomeric matrix ensures high sealing capacity across a wide temperature range from -50C to 180C, preventing inline leakage. Because the resilient seat can be adjusted or replaced in the field, maintenance crews can easily service the valve during planned maintenance cycles without replacing the entire disc assembly.

4. Precision Shafting and Multi-Drive Flexibility

The internal drive shaft is machined from premium ASTM A479 Type 410, SS304, or SS316 stainless steel bars to prevent stem binding, chemical corrosion, and unexpected torque spikes. For smaller pipeline connections (D

DN100 to DN250), the valve can be operated manually with a simple hand lever. For larger lines, an enclosed heavy-duty worm gearbox is installed to enable smooth, low-torque mechanical adjustments and prevent rapid closing water hammer spikes.

Strategic Large-Bore Utility Applications

FlowBiz large-diameter fabricated butterfly valves are specified across primary bulk fluid headers:

• Municipal Water & Sewage Infrastructure: High-capacity raw intake water mains, city water distribution loops, storm water pumping stations, and sewage treatment lines.

• Power Generation Cooling Utilities: Main condenser cooling water return loops, cooling tower supply mains, and high-volume pump discharge manifolds.

• Industrial Processing Utilities: Bulk process water transmission lines, facility cooling jackets, and raw wastewater collection lines in chemical and oil industries.

• Bulk Fluid Transit Pipelines: Low-pressure non-potable water loops, firewater distribution networks, and industrial gas exhaust lines.

Frequently Asked Questions (FAQ)

Q: When should an engineer select a fabricated MS butterfly valve over a standard cast iron valve?

A: Standard cast iron valves are brittle and vulnerable to cracking from structural water hammer spikes, thermal expansion stresses, and freezing conditions. For large-diameter installations (50" to 104"), finding flawless castings is difficult and expensive. An MS Fabricated Valve uses structurally verified steel plates that completely eliminate the risk of hidden casting voids. This design delivers higher mechanical elasticity, handles structural vibrations easily, and reduces overall pipeline weight, saving on infrastructure support costs.

Q: What is the step-by-step process for field-installing a double flange fabricated butterfly valve?

A: Proper mechanical alignment is essential to prevent flange distortion and seat wear:

• Clean the pipeline flanges to remove rust, weld spatter, and old gasket remnants.

• Center the valve cleanly between the pipeline flanges, making sure the AWWA C-504 double flange bolt holes line up perfectly.

• Insert high-quality gaskets between the sealing faces, then push standard structural bolts through the holes.

• Tighten the bolts progressively using a torque wrench in an alternating cross-star pattern to distribute clamping force evenly, creating a secure, leak-proof mechanical joint.

Q: Can these fabricated butterfly valves be used for continuous throttling as well as full isolation?

A: Yes. While butterfly valves are highly efficient for quick, bubble-tight shut-off, our robust disc geometry and high-tensile stainless steel shafting make them suitable for both on-off and effective throttling services. Using the high-ratio manual worm gearbox, operators can position and lock the disc at partial angles between 15 and 75 to finely regulate flow velocity and line pressures based on changing process parameters.

Q: What protections and warranties does FlowBiz offer for these fabricated valve assets?

A: Every MS fabricated valve undergoes rigorous material validation and hydrostatic pressure testing before leaving our facility. To protect your investment and back our engineering quality, each unit includes a comprehensive 12-month factory warranty. This ensures dependable performance, long-term operational efficiency, and direct access to our application engineering team for installation support and field maintenance guidance.

Q: How can project procurement managers coordinate factory-direct quotes from the Vadodara hub?

A: Sourcing can be initiated by contacting our corporate sales division and engineering headquarters in Vadodara or Ahmedabad, Gujarat. Our technical staff will guide you through a comprehensive consultationassessing your precise nominal sizing requirements (50" to 104"), preferred pressure classification (PN6/PN10), wetted fluid properties (water, gas, or oil), and exact installation parametersto deliver a certified product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a large-bore municipal water transmission main or upgrading an industrial facility cooling tower loop? Contact our Vadodara sales and engineering office today to receive complete technical data sheets, certified structural blueprints, and an itemized commercial proposal.
