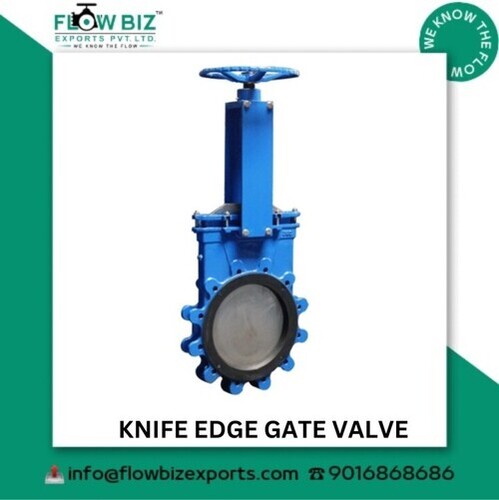

FlowBiz Industrial Knife Edge Gate Valves Slurry & Solids Handling Systems

Welcome to the engineering authority for severe-duty slurry handling, high-density solids isolation, and abrasive fluid management. Operating specialized automated casting foundries, high-precision surface grinding centers, and certified pressure-boundary validation corridors, FlowBiz manufactures premium-grade Knife Edge Gate Valves.

Engineered to solve the clogging, jamming, and seat degradation common to traditional gate valves, our bonnetless line features a sharpened, heavy-duty gate. This blade is designed to slice cleanly through thick sludge, abrasive mine tailings, fibrous pulp stock, and dry bulk solids. Available in standard nominal sizing tracking from 2" to 24" (DN50 to DN600), these high-performance valves are optimized for Class 150 and PN 10 medium-pressure lines, ensuring a dependable, long-lasting fluid seal in harsh industrial piping grids.

Technical Specifications & Compliance Parameters

Every FlowBiz production lot is precision-machined and subjected to 100% rigorous hydrostatic shell testing and specialized seat containment checks in strict accordance with global industrial testing codes.

Kinematics & Port Sealing Configurations

FlowBiz constructs two distinct directional sealing configurations to match specific process utility layouts and pipeline backpressure requirements:

Uni-Directional vs. Bi-Directional Flow Sealing

       UNI-DIRECTIONAL: PRESSES GATE TO SEAT             BI-DIRECTIONAL: EQUAL SEAL IN BOTH DIRECTIONS
       (CRITICAL FLOW MUST FOLLOW ARROW)

                     [ GATE DOWN ]                                     [ GATE DOWN ]
                           ||                                                ||
                           \/                                                \/
               +-----------++-----------+                        +-----------++-----------+
               |  Pressure ||           |                        |  Balanced || Balanced  |
  =========>   |  Assists  || Resilient |   =========>           |  Upstream || Downstream|  =========>
  Heavy Slurry |  Sealing  || or Metal  |   Discharge Stream     |  Pressure || Pressure  |  Continuous Outflow
  Inflow Path  |  Force    || Seat Ring |   Low Pressure         |  Sealing  || Sealing   |  Zero Pocket Jamming
               +-----------++-----------+                        +-----------++-----------+

1. Uni-Directional Application Framework

Optimized for pipelines with a single, clear flow direction, this configuration uses line pressure to assist the seal. As the blade slides downward, the upstream process fluid pushes the gate directly against the single seat ring, providing a dependable shut-off. This design is highly recommended for down-feed hoppers, gravity drop lines, and high-velocity unidirectional pulp loops.

2. Bi-Directional Application Framework

For systems facing backpressure, shifting flow headers, or closed-loop recycling networks, FlowBiz provides a balanced bi-directional sealing array. Utilizing dual-resilient soft seats or specialized perimeter seals, these valves hold a tight, bubble-tight seal against fluid pressure from either direction while preventing media pockets from jamming inside the wafer body.

Seat Selection Matrix & Thermal Performance Limits

To ensure optimal performance and long service life, the valve seats are matched to the chemical composition, abrasion level, and operating temperature of the fluid medium:

Core Engineering Features & System Benefits

• Sediment-Clearing Sharpened Gate: The bottom of the high-tensile stainless steel gate features a hand-polished bevel edge. This knife profile shears cleanly through packed sediments, scale, and stringy solids at the bottom of the body pocket, ensuring the blade seats fully without getting stuck.

• Low Operating Torque: Precision grinding on the face of the knife plate cuts down friction against the packing chamber and seat ring. This low-friction travel reduces the manual torque required to operate the valve, allowing for smaller, more cost-effective pneumatic or electric actuators.

• Replaceable Internal Seats: FlowBiz units feature a modular retainer ring system that lets maintenance teams replace worn soft seats or metal seat rings directly on-site, minimizing downtime and extending the valve's working life.

• Body Design Options: Available in ultra-slim Wafer, semi-lugged, or fully Lugged end patterns drilled to Class 150 and PN 10 spacing, these valves drop easily into tight piping layouts without adding excessive weight to the header.

Strategic Industrial Application Sectors

• Paper & Pulp Mills: Managing raw pulp preparation stocks, high-density pulp transfer lines, and stock tower isolation valves.

• Minerals, Metals, & Steel Plants: Handling iron ore slurries, beneficiation plant tailing lines, blast furnace water systems, and sand-washing grids.

• Thermal Power Plants: Regulating fly ash disposal lines, bottom ash slimes, coal washing manifolds, and dry solids conveying loops.

• Wastewater Treatment Facilities: Isolating aerobic digesters, thick sludge discharge lines, grit chambers, and municipal sewage lines.

• Cement & General Chemical Utilities: Controlling dry lime lines, bulk cement slurries, silo storage dumps, and chemical bagging hopper lines.

Are you setting up a pneumatic ash-handling manifold that requires a Class 150 lugged knife gate valve with a hardened metal seat, or updating a sludge processing header that demands a PN 10 bidirectional wafer configuration? Contact the FlowBiz technical sales division today to secure a factory-direct engineering quote, or clarify your specific fluid solids concentration below to guide the conversation forward.
