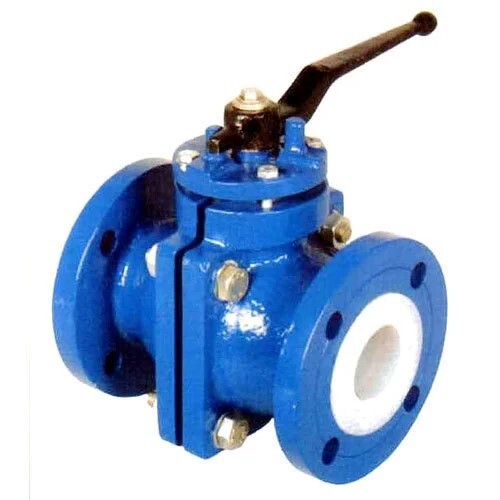

FlowBiz Severe-Service PTFE/PFA Lined Ball Valves Absolute Chemical Isolation & Zero-Leakage Containment

Welcome to the engineering authority for highly corrosive chemical containment, toxic fluid isolation, and high-purity process routing. Operating advanced polymer lining cells, precision melt-process fluoropolymer molding systems, and certified pressure-boundary validation bays, FlowBiz specializes in manufacturing premium PTFE/PFA Lined Ball Valves.

Standard exotic alloy valves (such as Hastelloy, Titanium, or Duplex) can still suffer from localized chemical pitting, stress corrosion cracking, or rapid erosion when exposed to aggressive industrial chemicals like boiling hydrochloric acid, wet chlorine, or strong sulfuric concentrations. FlowBiz addresses this vulnerability by molding a thick, heavy-duty, high-purity PTFE (Polytetrafluoroethylene) or PFA (Perfluoroalkoxy) structural lining fabric throughout the entire internal fluid-contact area of the valve. This uniform lining creates a completely inert barrier that fully protects the outer metallic body from chemical attacks. It offers a cost-effective, zero-leakage isolation solution for the most aggressive process pipelines.

Technical Specifications & Compliance Parameters

Every FlowBiz lined production block undergoes 100% mandatory high-voltage spark testing at 25 kV, hydrostatic shell profiling, and pneumatic seat boundary validation to ensure the lining is completely free of pinholes or micro-fractures.

Kinematics & One-Piece Integral Stem Lining Security

The chemical sealing performance of the FlowBiz lined ball valve relies on an uncompromised polymer barrier and a rigid, zero-play core trim:

                MANUALLY LEVER OPERATED / ACTUATING SYSTEM
                                    ||
                                    \/
                        +------------------------+
                        | Blowout-Proof Top Stem |
                     +--+------------------------+--+
                     |  [ SPLIT TWO-PIECE HOUSING ] |
                     |       /---|  |---\        |
 ===================>|====> | Integral Lined     |====>| ================>
 Aggressive Acids /  |      | Ball & Stem Unit   |     | Clean Chemical
 Corrosive Chemicals |       \---|  |---\        |     | Outflow Stream
                     +------------||-------------+
                        | Complete PTFE Armor Bed|
                        +------------------------+
                  (High-Voltage Spark Tested = Zero Internal Pinholes)

• One-Piece Integral Ball and Stem Unit: Traditional lined valves use separate pieces for the ball and stem, joined by a mechanical slot. Over time, high chemical friction can cause the lining at this connection point to tear, exposing the underlying metal to corrosion. FlowBiz eliminates this failure point by casting and lining the ball and stem as a single, solid piece. This layout distributes mechanical torque evenly and ensures the fluoropolymer coating remains perfectly intact.

• Pressure-Assisted Free-Floating Shut-Off: Designed with a free-floating ball structure that responds directly to line conditions. When closed, upstream fluid pressure gently pushes the polished sphere into the downstream seat ring, utilizing the fluid's own energy to create a positive, bubble-tight seal.

• Auto-Protect Pressure Boundaries: Known as effective shut-off or isolation valves, these lined units can be integrated with safety control systems to automatically shut down lines if a specific pressure range is reached. This swift action protects your operations by preventing downstream leaks, chemical combustion, or hazardous environmental exposure.

Core Engineering Features & Plant Benefits

• Ultimate Corrosion Protection: The heavy, uniform PTFE/PFA lining completely seals the ductile iron body from aggressive acids, alkaline solutions, and hazardous media, preventing chemical rust or degradation.

• Full-Port Cleanway Flow: The unrestricted full-port internal path matches your pipe's inner diameter perfectly. This configuration keeps fluid turbulence low, eliminates internal flow restriction, and prevents system pressure drops.

• Blowout-Proof Safety Design: Engineered with a robust, bottom-entry blowout-proof stem that stays securely contained inside the valve housing even during sudden line pressure surges, ensuring maximum safety for plant operators.

• Global Safety Certifications: Fully certified to ISO 9001:2015, CE Marking, and ATEX criteria, meeting the strict quality, environmental, and explosion-protection requirements of heavily regulated chemical processing zones worldwide.

Strategic Industrial Application Sectors

Our PTFE/PFA Lined Ball Valves provide dependable chemical isolation across severe-service industries:

• Chemical Processing Plants: Handling hot hydrochloric acid, sulfuric acid, nitric acid concentrates, pickling lines, and aggressive organic compounds.

• Pharmaceutical Manufacturing: Managing high-purity active ingredient transport, aggressive solvent extraction, and sterile chemical utility loops.

• Petrochemical Refineries: Isolating sour water treatment lines, aggressive chemical additives, and volatile hydrocarbons.

• Water Treatment & Desalination Skids: Controlling aggressive chemical dosing loops, brine extraction, and acid regeneration columns.

Frequently Asked Questions (FAQ)

Q: How does the PTFE lining provide corrosion resistance in ball valves?

A: The thick, high-density PTFE lining forms a chemically inert barrier over the entire internal surface of the valve body, ball, and stem. This barrier completely isolates the outer metal housing from direct contact with aggressive media, preventing chemical reactions, galvanic corrosion, and metal degradation.

Q: What operation methods are available for these PTFE lined ball valves?

A: FlowBiz lined valves offer excellent operational flexibility. They can be operated manually using a standard quarter-turn lever handle, configured with a mechanical gearbox for smooth manual operation, or equipped with high-cycle pneumatic cylinders or smart electric actuators for remote automation.

Q: When should I choose a fire-safe design for my application?

A: A fire-safe design certified to API 607 must be specified when the pipeline routes flammable hydrocarbons, organic solvents, or chemicals in high-risk zones. The fire-safe construction incorporates secondary sealing elements that maintain fluid containment if intense fire exposure chars the primary soft polymer seats, protecting your facility from external leaks.

Q: Where can these ball valves be installed, and what industries commonly use them?

A: These valves are ideal for installation across demanding chemical processing plants, pharmaceutical production loops, petrochemical refining skids, fertilizer manufacturing lines, and heavy water treatment dosing manifolds that route highly corrosive or hazardous chemicals.

Q: What is the process for maintaining PTFE lined ball valves?

A: These valves feature a low-maintenance design and are engineered for straightforward inline servicing. Thanks to the split two-piece bolted body layout, maintenance technicians can quickly replace internal seats or seals during planned turnarounds without having to remove the entire valve from the system, keeping plant downtime to a minimum.

Q: What benefits do certifications like ISO 9001:2015, CE Marking, and ATEX provide?

A: These comprehensive international certifications prove that the valve has been manufactured, spark-tested, and certified under strict global quality and explosion-protection standards. This gives plant managers complete assurance of high performance, physical safety, and compliance when operating in critical or hazardous environments.

Are you updating an acid-dosing manifold that requires an automated full-port PTFE lined ball valve with a compact pneumatic actuator, or configuring a toxic solvent pipeline in India that demands an ATEX-certified, two-piece split-body PFA configuration? Contact our technical engineering and sales division today to secure a factory-direct quote and detailed technical data sheet, or ask a single relevant question regarding your specific chemical concentration or vacuum operating parameters below to guide the conversation forward.
