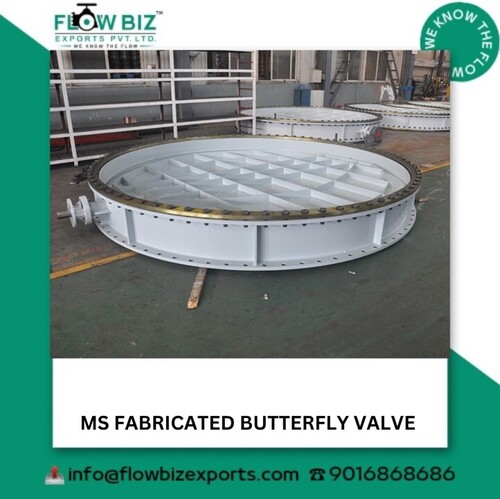

FlowBiz MS Fabricated Double-Flange Butterfly Valves Large-Scale Pipeline Flow Control

Welcome to the engineering authority for large-diameter water transmission, high-capacity utility line isolation, and heavy-duty infrastructure fluid routing. Operating heavy-plate rolling complexes, advanced submerged arc welding (SAW) cells, and large-scale hydrostatic testing bays, FlowBiz specializes in manufacturing premium-grade Mild Steel (MS) Fabricated Double-Flange Butterfly Valves.

Engineered with state-of-the-art structural fabrication, these massive valves are built for reliable, repeated ON/OFF operations in extensive pipeline networks, delivering maximum downstream flow efficiency. Spanning a size range from 50 inches to 104 inches (1250mm to 2600mm), our double-flange fabricated valves provide structural stability, tight sealing, and exceptional durability under high volumetric flow conditions.

Technical Specifications & Engineering Parameters

Every fabricated production block is custom-engineered and undergoes 100% rigorous ultrasonic weld testing, geometric alignment audits, and large-scale hydro-pneumatic seat leak verification before site dispatch.

Kinematics & Heavy-Plate Fabricated Disk Mechanics

The mechanical advantage of a large-scale fabricated double-flange butterfly valve lies in its custom-welded structural reinforcement and independent bolting infrastructure:

• Rigid Fabricated Mild Steel Construction: For large pipelines exceeding 50 inches, traditional metal casting can be prone to internal shrinkage defects and structural cooling stresses. FlowBiz solves this by using heavy-formed mild steel plates welded into a rigid, non-porous structural frame. This design absorbs high volumetric forces and pipeline bending moments without fracturing.

• Streamlined Ribbed Disc Profile: To handle massive downstream water pressure without bending, the internal fabricated disc features high-tensile structural reinforcing ribs. These ribs distribute fluid forces evenly across the drive shaft, while the disc's slim, hydrodynamically profiled edges ensure maximum mass flow capacity with minimal pressure drop ($P$) and turbulence.

• Double-Flange Bolting Integrity: The integrated double-flange design allows the valve to be securely bolted directly to matching pipeline flanges. This setup provides excellent mechanical sealing stability and allows downstream pipe sections to be unbolted and serviced safely while the valve holds back full pressure on the upstream side.

            VALVE FULLY OPEN (MAX CLEARANCE HIGH-VOLUME FLOW)

                        [ HEAVY WORM GEARBOX / ACTUATOR ]
                                       ||
                                       \/
                        +--------------++--------------+
                        | Heavy-Duty Drive Stem Axis   |
                     +--+------------------------------+--+
                     |  [ REINFORCED WELDED SHELL ]    |
                     |       /---|            |---\    |
==================>  |      | Ribbed          |    |   | ==================>
Mass Volumetric Fluid|      | Fabricated      |    |   | High-Velocity
Inflow Path          |      | MS Disc         |    |   | Downstream Outflow
                     |       \---|            |---\    | (Minimal Turbulence)
                     +---------------------------------+
                        | Integrated Structural Flange |
                        +------------------------------+

Core Engineering Features & Infrastructure Benefits

• State-of-the-Art Large-Scale Engineering: Tailored specifically for large-diameter water transmission pipelines, these valves ensure reliable, leak-free ON/OFF operation over extended service intervals.

• Friction-Reducing Resilient Sealing: The heavy elastomer seat ring provides excellent compression sealing and is easy to maintain, ensuring a dependable, tight shut-off even in high-volume flow networks.

• Low Operating Torque Requirements: Precision alignment of the heavy-duty drive shaft combined with a hydrodynamically optimized disc minimizes operating friction, allowing for smaller, more cost-effective electric actuators or gearboxes.

• Corrosion Protection Layering: Every fabricated mild steel valve is blasted clean and coated with heavy-duty epoxy coatings to protect the steel from oxidation, pitting, and environmental weathering.

Strategic Industrial Application Sectors

Our massive MS Fabricated Double-Flange Butterfly Valves serve as the primary isolation components across extensive distribution systems:

• Power Plants & Heavy Utilities: Managing main condenser cooling water intake headers, cooling tower circuits, and thermal utility grids.

• Municipal Water Treatment & Distribution: Controlling main raw water supply lines, city municipal distribution grids, and high-capacity water filtration pumping networks.

• Distilleries & Sugar Industries: Regulating bulk processing utility water headers, plant wastewater loops, and seasonal flow management pipelines.

• Paper & Pulp Manufacturing: Managing primary utility water loops, bulk effluent treatment runs, and high-capacity plant intake corridors.

• HVAC & Large-Scale Construction Infrastructure: Handling district cooling network headers, high-rise utility risers, and large commercial thermal loops.

• Chemical & Pharmaceutical Complexes: Isolating secondary plant utility channels, main firewater networks, and industrial effluent storage lines.

Are you designing a municipal water transmission line that requires a 60-inch AWWA-compliant double-flange butterfly valve, or updating a power plant cooling tower network with a custom-actuated 2400mm fabricated mild steel valve? Contact the FlowBiz technical sales and engineering division today to secure a factory-direct quote on our Large-Diameter Fabricated Valves, or ask a single relevant question regarding your specific flange dimension criteria or pipeline pressure parameters below to guide the conversation forward.
