AWWA C504 / API 609 Industrial Double-Flanged Butterfly Valves FlowBiz Pune

Welcome to FlowBiz Export Private Limited, a certified manufacturing authority for heavy-duty fluid containment, large-bore pipeline integration, and high-volume flow-handling networks. Operating advanced high-capacity casting foundries, precision multi-axis CNC machining bays, and certified hydrostatic pressure-testing cells in Pune, Maharashtra, we are India's premier manufacturer, supplier, and global B2B exporter of industrial Double-Flanged Butterfly Valves.

Our double-flanged quarter-turn isolation assets are engineered specifically for high-velocity, large-bore pipelines where structural integrity, ease of centering, and resistance to pipeline bending moments are paramount. From our manufacturing hub in Pune, we seamlessly support critical municipal waterworks, thermal utilities, and heavy process plants across Indiaincluding Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur, Indore, Dewas, Bhopal, Chennai, Coimbatore, and Salembacked by fast-tracked global maritime logistics for direct project export worldwide.

Technical Specifications & Pipeline Compliance Parameters

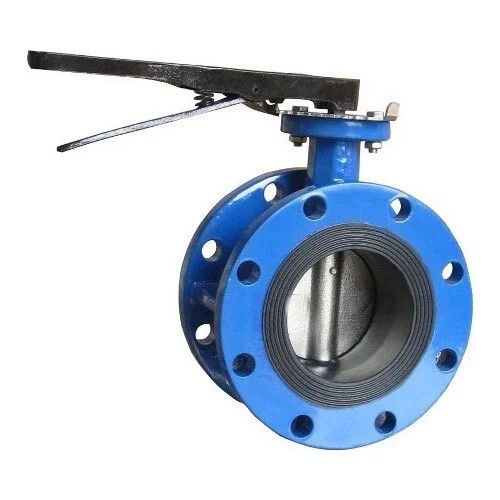

FlowBiz Double-Flanged Butterfly Valves utilize a robust, double-flanged pressure casing that incorporates two independent, integrated flange rings on either side of the valve body. This geometry ensures that the valve can be bolted directly to matching pipe flanges using standard short machine bolts, providing superior structural alignment and eliminating the through-bolt compression stresses common in wafer designs.

Core Engineering Features & Design Advantages

1. Superior Mechanical Strength Over Wafer and Lug Designs

In heavy-duty, large flow-handling scenarios, pipelines experience severe vibration, high-velocity fluid forces, and external bending moments caused by shifting pipe hangers or thermal expansion. Standard wafer or lugged valves are squeezed between pipe flanges under high tensile stress, making them vulnerable to casing deformation and seat distortion. The FlowBiz Double-Flanged design features a rigid, self-supporting pressure shell. Because it incorporates independent flanged ends, it absorbs pipeline stresses internally, preventing body warping and ensuring a dependable leak-proof seal.

2. Streamlined Mounting, Centering, and Field Alignment

Aligning a large-bore wafer valve between pipe flanges requires precise field measurements and specialized rigging to prevent gasket pinching or off-center disc rotation. Our double-flanged body makes mounting and centering significantly easier. The integrated flanges feature pre-drilled bolt circles that match ASME B16.5 or IS standard dimensions. Technicians simply align the valve holes with the pipe flange holes and insert standard bolts, ensuring perfect concentric alignment every time and drastically reducing plant installation labor costs.

3. Dual-Media Versatility for Water and Oil Applications

Our internal seating and metallurgy matrices are engineered to manage both water and oil media loops seamlessly. Utilizing high-tensile cast iron or ductile iron pressure boundaries paired with precision-ground stainless steel (CF8/CF8M) discs, these valves resist cavitation pitting and erosive wear. The resilient seating elements maintain uniform elastic tension against the disc edge, providing a bidirectional bubble-tight shut-off across high-volume distribution lines.

4. Low-Maintenance Manual Operation and Blue Protective Coating

Equipped with a high-leverage manual hand lever or an enclosed worm gearbox, our valves offer a straightforward, dependable manual power source that eliminates any reliance on external electrical wiring or compressed air networks. To safeguard the valve against harsh environments, humid plant floor conditions, and industrial condensation, the entire exterior shell is finished with a high-build industrial blue protective coating that prevents rust scaling and oxidation.

Strategic Large-Bore Industrial Applications

FlowBiz double-flanged butterfly valves are specified across primary fluid transport networks:

• Municipal Water Distribution Infrastructure: High-capacity drinking water mains, water treatment filtration backwash manifolds, and pumping stations.

• Industrial Cooling Water Loops: Managing intake and return lines for power plant condensers, steel mill cooling beds, and chemical manufacturing jacket lines.

• Oil & Hydrocarbon Utility Systems: Bulk storage tank farm transfer headers, low-pressure non-flammable lubricant lines, and blending manifolds.

• Wastewater & Effluent Pumping Grids: Large-diameter wastewater filtration systems, industrial effluent treatment grids, and storm water drainage manifolds.

Frequently Asked Questions (FAQ)

Q: When should an engineer select a double-flanged butterfly valve over a wafer style?

A: A wafer valve should be limited to small-to-medium piping configurations where space is tight and pipeline stresses are low. A Double-Flanged Butterfly Valve should be specified in large-bore pipelines (above 8 inches), high-velocity lines, and applications subject to high mechanical pipe vibrations or thermal shifts. Furthermore, double-flanged valves are ideal for dead-end isolation service, allowing downstream pipe sections to be safely unbolted and serviced while the upstream side remains under full operational pressure.

Q: How does the double-flanged structure protect the internal seat liner from premature failure?

A: In a wafer valve, the internal elastomer liner is directly compressed by the face-to-face tightening pressure of the adjacent pipe flanges. If field crews unevenly torque the pipeline bolts, the liner can warp or bunch up, leading to high operational torque, disc scoring, and immediate inline leaking. A double-flanged valve features an independent, rigid body where the seating element is securely locked inside a cast recess. Pipeline bolts pass through the body flanges rather than over the sealing face, isolating the internal seat liner from uneven pipe-clamping stresses and maximizing its service life.

Q: What is the correct installation procedure for a flanged butterfly valve in Pune?

A: Installation requires aligning the valve body with the matching pipeline flanges. Technicians must position the double-flanged casing between the two pipe flanges, ensuring that the faces are clean and parallel. Suitable, pressure-rated gaskets are centered between the flanged connections, and standard short machine bolts are inserted through the pre-drilled holes. Operators must tighten these bolts in a progressive, alternating star pattern. This uniform torque profile ensures an even, leak-proof seal and protects the cast iron casing from uneven bending moments.

Q: How does the manual worm gearbox operator improve field safety on large lines?

A: In large flow-handling pipelines, the high velocity of the flowing fluid exerts a powerful dynamic force against the valve disc. Attempting to close a large valve manually with a standard lever handle can cause the valve to snap shut violently, creating a destructive high-pressure wave known as a water hammer, which can rupture pipe joints and smash pumps. FlowBiz equips our larger-bore valves with enclosed worm gear operators. These units provide a high mechanical advantage and self-locking capabilities, allowing operators to execute the valve smoothly and predictably while preventing sudden valve slamming.

Q: How can project procurement managers and engineers coordinate a direct factory quote?

A: Sourcing can be initiated by contacting our corporate sales division in Pune, Maharashtra. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise nominal pipeline diameters (2" to 40"), preferred metallurgy (Gray Iron vs. Ductile Iron), target pressure class (PN10/PN16/Class 150), and explicit fluid media properties (water vs. industrial oil blends)to deliver a certified product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a large-bore municipal water mains network or upgrading a high-capacity industrial cooling tower manifold? Contact our Pune sales and engineering office today to receive complete technical data sheets, certified structural blueprints, and an itemized commercial proposal.
