About Industrial Diaphragm Valve Supplier in Narmada

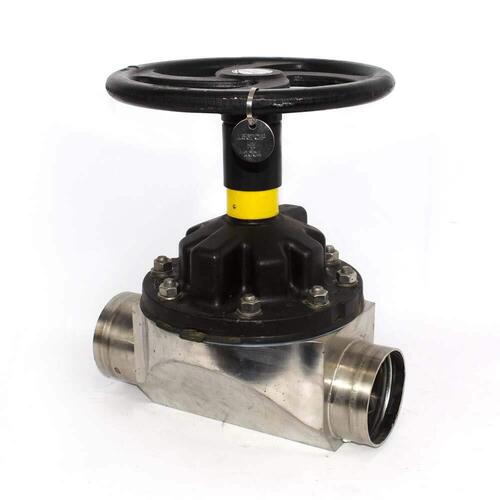

BS 5156 High-Performance Stainless Steel Diaphragm Valves FlowBiz Narmada

Welcome to FlowBiz Export Private Limited, a certified manufacturing authority for high-purity fluid containment, absolute inline isolation, and zero-leakage process loops. Operating advanced investment casting foundries, automated polymer molding cells, and rigorous hydrostatic compliance testing bays in Narmada and Ahmedabad, Gujarat, we stand as India's premier manufacturer, supplier, and global B2B exporter of industrial Stainless Steel Diaphragm Valves.

Our linear-motion containment assets are engineered specifically to provide a dependable, hermetic seal across pipelines handling gases, corrosive liquids, and high-solid slurries. From our manufacturing centers in Gujarat, we support critical processing infrastructure across India's primary industrial corridorsincluding Narmada, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Pune, Thane, Ahmedabad, Rajkot, Chennai, Coimbatore, and Salembacked by fast-tracked global maritime logistics for direct project export worldwide.

Technical Specifications & Compliance Parameters

FlowBiz Diaphragm Valves utilize an advanced, cavity-free body architecture where a flexible, high-density elastomer membrane serves as the primary wetted seal. By pressing directly against a contoured internal weir, this membrane isolates the internal pipeline media from the valve bonnet and mechanical compressor, completely eliminating dead zones where bacteria, biofilms, or mineral sediments could trap and grow.

Engineering Parameter	Certified Product Specifications & Compliance Codes
Design Standards	Fully compliant with BS 5156, ASME B16.34, and MSS SP-88 criteria
Testing Standards	100% hydrostatically and pneumatically verified to API 598 protocols
Leakage Class Control	Certified ASME B16.104 Leakage Class VI (Bubble-Tight Isolation)
Sizing Envelope Array	Broad production scaling: 1/2 Inch to 12 Inches (15 mm to 300 mm)
Pressure Class Ratings	Precision-engineered for PN10, PN16, and ASME Class 150# tracks
Operating Temperature	Optimized for high reliability under normal temperature processes
Body Shell Metallurgy	Premium Stainless Steel (ASTM A351 CF8 / CF8M / CF3M / SS316L)
Diaphragm Compound Matrix	High-Flex EPDM, Virgin PTFE with EPDM Backing, Viton, or Nitrile
End Connection Interface	Precision-Machined Raised Face Flanged Ends (ASME B16.5)
External Shell Coating	Polished Silver-Black Anti-Corrosive Weather-Proof Layering
Operational Drive	High-Leverage Manual Handwheel / Automated Diaphragm Actuator

Core Engineering Features & Mechanical Advantages

1. Superior Throttling and Linear Flow Control

Unlike gate or ball valves, which are optimized strictly for on-off service, a diaphragm valve is highly effective in throttling applications. As the manual handwheel or actuator moves through its linear stroke, the flexible elastomer membrane changes the cross-sectional area of the flow path progressively. This responsive, proportional change allows plant operators to adjust fluid and gas velocities with high precision.

2. Clog-Free Handling of Viscous and Slurry Media

When handling highly dense, sticky, or particle-containing media, standard mechanical valves experience rapid seat scratching and frequent blockages. The FlowBiz design features a cavity-free weir profile. Because the wetted port is completely smooth and unobstructed, suspended grains, thick mineral scale, and viscous polymers glide through the body without encountering internal corners or pockets that trap sediments, preventing localized pipeline clogging.

3. Ultimate Hygienic and Ultra-Clean Design

For processing systems that require strict contamination control, minimizing dead space is essential. Our stainless steel diaphragm valves are inherently hygienic and extremely clean since the areas or pockets that trap biofilms are reduced. This cavity-free structure makes it easy to sanitize lines completely during Clean-in-Place (CIP) cycles, making these valves an exceptional choice for water treatment and sensitive manufacturing lines.

4. Zero Stem Leakage and Inline Bonnet Servicing

Traditional valves rely on compressed graphite packing around a moving stem to prevent external leaks, which naturally wears down over time. In our design, the operating mechanism of the diaphragm valve is isolated from the flowing media, completely eliminating the risk of stem leakage to the environment. Because the fluid never contacts the stem or bonnet, maintenance and servicing can be done without interrupting the pipeline, allowing field teams to swap actuators or service topworks safely while lines remain active.

Strategic Cross-Industry Applications

FlowBiz high-performance flanged diaphragm valves are specified across primary processing lines:

• Water Treatment & Effluent Processing Facilities: Precise regulation of chemical dosing loops, raw sludge isolation, reverse osmosis feed streams, and filtration networks.

• Chemical Processing & Neutralization Lines: Safe containment, transport, and absolute isolation of aggressive process acids, alkaline bases, caustic solutions, and organic solvents.

• Gas Handling & Utility Distribution Arrays: Leak-proof control of compressed air lines, dry nitrogen systems, and non-flammable gas manifolds under normal temperatures.

• Process Manufacturing Slurries: Managing lime slurries, mineral tailing networks, wastewater containing high suspended solid concentrations, and sticky polymer feeds.

Frequently Asked Questions (FAQ)

Q: Why is a stainless steel diaphragm valve preferred over standard ball valves for handling corrosive chemicals?

A: In a standard ball valve, the metallic sphere rotates inside polymer seat rings. When managing corrosive chemicals or abrasive slurries, chemical scale and suspended solids wedge tightly between the ball and seat. This scratches the sealing faces, causes the operating torque to spike, and leads to rapid leakage. A Diaphragm Valve completely separates the moving stem and mechanical compressor from the fluid path using a thick, flexible elastomer membrane. This design prevents chemical corrosion of the operating hardware and achieves a reliable, tight seal even when handling aggressive fluids.

Q: What primary quality assurance steps are executed during the manufacturing process?

A: Every single valve follows a meticulous, high-precision production cycle to ensure it meets strict global quality standards. The process begins with selecting premium stainless steel alloys, followed by precision investment casting. The raw shells move through multi-axis CNC machining centers to achieve precise dimensions, after which they are assembled with a high-flex diaphragm membrane and manual handwheel or actuator. Finally, 100% of our valves undergo strict hydrostatic and pneumatic pressure testing per API 598 codes to verify structural integrity and bubble-tight isolation before receiving their final silver-black finish.

Q: How does the size range from 1/2" to 12" help optimize system design?

A: Our broad sizing envelope allows engineers to select the exact valve dimensions required to match their system scale. Small-diameter valves (1/2" to 12") are optimized for precise chemical dosing loops and gas utility lines, while our large-bore valves (6

6 in to 12 in) are designed to handle high-volume water filtration mains and industrial sludge lines, ensuring seamless integration into various industrial processes.

Q: What routine inspections are recommended to maximize the lifespan of the valve?

A: Because the flexible elastomer membrane is the only moving component exposed to the process fluid, checking its condition periodically is recommended. Maintenance teams should routinely inspect the valve for uniform tightness at the body-bonnet joint and verify the integrity of the diaphragm during scheduled plant shutdowns. If a diaphragm shows signs of wear after years of continuous service, the top bonnet can be unbolted and the membrane replaced on-site without cutting or disconnecting the stainless steel valve body from the pipeline, minimizing system downtime.

Q: How can project procurement managers and engineers coordinate factory-direct quotes?

A: Sourcing can be initiated by contacting our corporate sales division in Narmada or Ahmedabad, Gujarat. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise nominal pipe dimensions (1/2" to 12"), target pressure classification (PN10/PN16/Class 150), explicit chemical or gas media properties, and preferred actuator configurationsto deliver a certified product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a high-purity chemical dosing loop or upgrading an industrial wastewater sludge manifold? Contact our Narmada sales and engineering office today to receive complete technical data sheets, certified dimensional blueprints, and an itemized commercial proposal.
