BS EN 13397 PTFE-Lined Stainless Steel Diaphragm Valves FlowBiz Vapi

Welcome to FlowBiz Export Private Limited, a globally recognized manufacturing authority for severe chemical isolation, zero-leakage fluid control, and high-purity water treatment utilities. Operating advanced high-alloy investment casting cells and precision fluoropolymer molding laboratories in Vapi, Gujarat, we are India's premier manufacturer, supplier, and global exporter of industrial PTFE-Lined Stainless Steel Diaphragm Valves.

Our specialized linear-motion valves are engineered to withstand aggressive chemical environments and strict cleanliness regulations. From our production base in Vapi, we seamlessly satisfy critical engineering specifications across India's primary industrial and chemical corridorsincluding Ahmedabad, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Pune, Thane, and Chennaibacked by fast-tracked logistics for rapid international project export.

Technical Specifications & Compliance Architecture

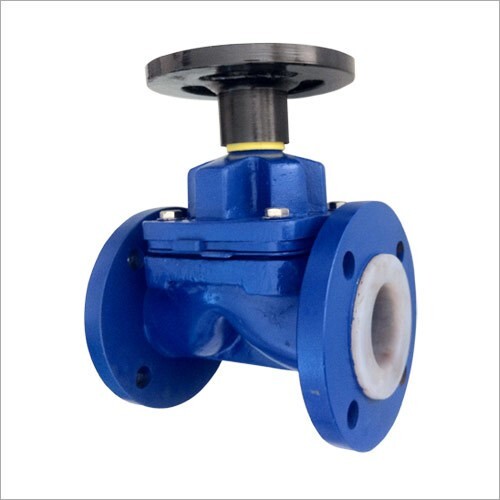

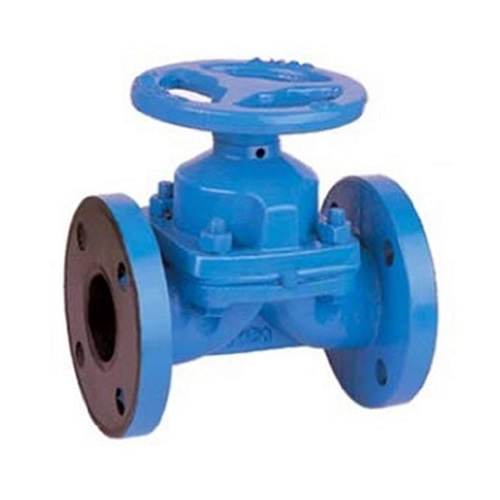

FlowBiz PTFE-lined stainless steel diaphragm valves feature a weir-type configuration. The valve utilizes a heavy-duty, flexible elastomeric diaphragm faced with virgin fluoropolymer (PTFE) to regulate or isolate the fluid track. This design completely isolates the upper mechanical bonnet assembly, stem, and compressor from the process media, eliminating the need for a traditional stem packing gland and guaranteeing zero fugitive emissions.

Core Engineering Features & Design Advantages

1. Dual-Layered PTFE/EPDM Sealing Shield

To handle highly aggressive fluids without chemical breakdown, our valves feature a dual-layered membrane assembly. The fluid-exposed face is crafted from 100% virgin PTFE, which offers complete chemical inertness across almost all industrial acids, caustics, and solvents. This stiff polymer face is backed by a highly elastic, vulcanized EPDM elastomeric cushion. The backing provides the structural resilience and spring-back memory needed to achieve a bubble-tight seal under repeated cycling.

2. Premium Stainless Steel Shell with 3-5mm Lining

Our valve bodies are investment-cast from high-grade ASTM A351 CF8M (SS316) stainless steel, which provides superior structural mass and resistance to atmospheric corrosion. Into this robust metallic shell, we mechanically anchor a uniform 3 mm to 5 mm  thick PTFE lining matrix. This design ensures that if highly volatile chemicals or marine salt spray attack the valve from the outside, or if aggressive chemicals flow through the inside, the valve remains fully protected against corrosion.

3. Cavity-Free, Low-Maintenance Geometry

Standard quarter-turn ball or gate valves feature internal body pockets and deep mechanical recesses. When handling raw water, mineral slurries, or industrial effluents, solid particulates settle into these dead zones, where they solidify, wear down the seats, or jam the valve. Our weir-type diaphragm valves provide a smooth, aerodynamic, cavity-free internal path. Solids pass cleanly through the valve body, minimizing maintenance requirements and reducing operational downtime.

4. Flanged Installation and Industrial Visual Coding

Engineered for seamless integration into heavy-duty pipelines, our valves feature integrated flanged ends machined to match standard ASME B16.5 requirements. The exterior of the valve body is finished with a high-durability industrial blue protective coating. This coating adds an extra layer of defense against harsh external environments and serves as an easy visual indicator for field technicians to quickly distinguish chemical and utility lines within dense plant layouts.

Strategic Cross-Industry Applications

FlowBiz PTFE-lined stainless steel diaphragm valves are specified across high-consequence liquid loops:

• Industrial Water Treatment & Desalination: Demineralized water headers, reverse osmosis filtration grids, chemical regeneration loops, and deionized water networks.

• Chemical Processing & Synthesis: Safe containment, throttling, and isolation of concentrated sulfuric, hydrochloric, and nitric acids, as well as aggressive alkalis and volatile solvents.

• Pharmaceutical & Sanitary Utilities: Transporting high-purity active ingredients, handling aggressive chemical washdown fluids, and managing sterile process water loops.

• Pulp, Paper, & Effluent Management: Regulating corrosive chemical bleaching lines, acidic industrial wastewater streams, and highly abrasive fiber sludges.

Frequently Asked Questions (FAQ)

Q: Why should an engineer choose a PTFE-lined stainless steel diaphragm valve over an unlined stainless steel valve for chemical transport?

A: While stainless steel alloys like SS316 offer excellent general resistance to corrosion, they can still suffer from localized pitting, crevice corrosion, and rapid erosion when exposed to highly concentrated acids (such as hot hydrochloric or nitric acids) or volatile chemical mixtures. A PTFE-Lined Diaphragm Valve provides a completely non-reactive, chemically inert fluoropolymer shield (3 mm to 5 mm thick) that seals the entire metal body away from the fluid, completely preventing chemical corrosion and extending the valve's operational service life.

Q: What is the benefit of a weir-type diaphragm valve design when throttling fluids under medium pressure?

A: In a weir-type design, the valve features a raised internal body weir that reduces the total stroke distance required to close the valve. This limited travel path reduces mechanical stress and stretching on the flexible PTFE diaphragm membrane during operation. When used for throttling, the compressor moves the diaphragm incrementally toward the weir, providing precise control over fluid velocity and volume while minimizing turbulence and cavitation wear.

Q: Why do diaphragm valves completely eliminate the need for traditional stem packing glands?

A: Standard linear valves require compressed graphite or PTFE packing rings wrapped around the moving stem to prevent pressurized fluids from leaking out into the atmosphere. Over time, these packing rings wear out and require adjustment. A Diaphragm Valve uses a flexible diaphragm sheet that is physically clamped between the metallic body and bonnet. This creates an absolute, permanent physical barrier that isolates the process fluid below the bonnet, eliminating the packing gland entirely and guaranteeing zero fugitive stem emissions.

Q: Why is a high-voltage electrostatic spark test critical for lined valves during the quality assurance process?

A: Even a microscopic fracture, pinhole, or thin spot inside the molded PTFE lining can allow aggressive acids to slowly seep through, attacking and corroding the outer metal body from the inside out. To prevent this type of failure, FlowBiz tests 100% of our lined valves with a high-voltage electrostatic spark test (calibrated up to 10 kV15 kV). If any microscopic void exists, a visible spark arcs through the lining to the ground, allowing our quality controllers to isolate and reject the defective component immediately.

Q: How can project engineering and procurement teams in Vapi arrange a bulk factory quote?

A: Sourcing can be initiated by contacting our dedicated corporate sales division in Vapi, Gujarat. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise pipeline size requirements (12), required flange drilling configurations (ASME/DIN/BS), fluid velocities, chemical concentrations, and operating temperature profilesto deliver a certified technical submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing an aggressive chemical process loop or upgrading an industrial wastewater treatment manifold? Contact our Vapi sales and engineering office today to receive comprehensive technical sheets, dimensional blueprints, and an itemized commercial proposal.
